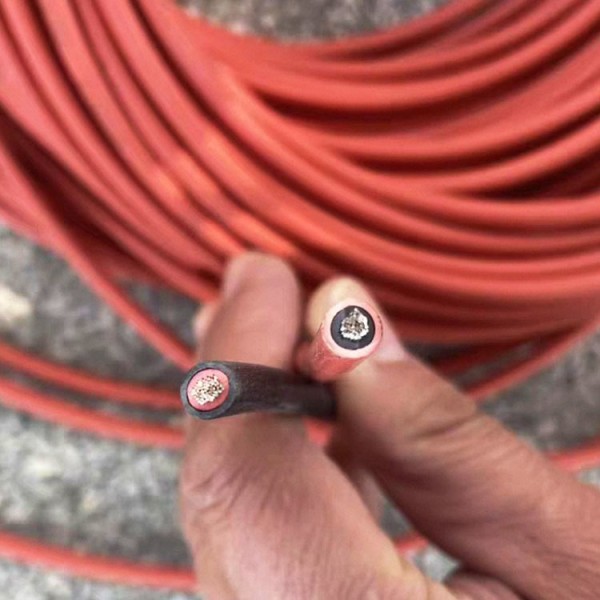

4mm2 6mm2 10mm2 Pv1-F Solar Cable Tinned Copper DC PV Wire 1.5kV For Solar Panel System
4mm2 6mm2 10mm2 Pv1-F Solar Cable Tinned Copper DC PV Wire 1.5kV For Solar Panel System
4mm2 6mm2 10mm2 Pv1-F Solar Cable Tinned Copper DC PV Wire 1.5kV For Solar Panel System
4mm2 6mm2 10mm2 Pv1-F Solar Cable Tinned Copper DC PV Wire 1.5kV For Solar Panel System
4mm2 6mm2 10mm2 Pv1-F Solar Cable Tinned Copper DC PV Wire 1.5kV For Solar Panel System
4mm2 6mm2 10mm2 Pv1-F Solar Cable Tinned Copper DC PV Wire 1.5kV For Solar Panel System
Specifications
Application :
Photovoltaic Power, Construction, Industrial, Power Station, power station/Industrial/photovoltaic power/
Type :
Low Voltage
Rated voltage :
1.5kv DC
Model :
PV1-F
Working Temperature :
- 45 °+120 °
Delivery Time :
30 days
Jacket :
PVC
Place of Origin :
Shaanxi, China
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
MOQ :
1000
Price :
$0.39-1/m
Rated Current :
55A
Specification :
6mm ²/ 2.5mm ²/ 4mm ²/ 10mm ²/16mm ²/25mm ²/35mm ²
Brand Name :
F.T
Certification :
tuv
Sheath :
XLPO/XLPE
Model Number :
PV1-F
Payment Terms :
D/A,D/P,T/T,L/C,Western Union
Conductor Material :
Tin Plated Copper
Supply Ability :
800–1500 kilometers per month
Description

PV1‑F Solar Cable 4mm² 6mm² 10mm² Tinned Copper DC PV Wire 1.5kV For Solar Panel System

Our PV1-F solar cable is a dedicated DC transmission solution for all types of photovoltaic power systems. We focus on the most in-demand sizes—4mm², 6mm², 10mm²—and also offer full customization to fit your project’s unique needs. As a low-voltage DC cable (rated 1.5kV DC), it’s mainly used to connect solar panels, combiner boxes and inverters. No matter if you’re working on a small home rooftop system, a commercial warehouse project, or a large desert solar farm, this cable delivers reliable power transmission day in and day out.

Key Specifications

Item
Details
Model
PV1-F
Cross-Section
4mm², 6mm², 10mm² (custom sizes available)
Rated Voltage
DC 1.5kV
Conductor
Tinned copper, flexible stranded
Insulation/Sheath
Electron-beam cross-linked XLPE
Operating Temp
-40℃ ~ 120℃ (short-term up to 150℃)
Certifications
TÜV EN50618, UL4703, IEC
Service Life
25 years (outdoor)

4mm2 6mm2 10mm2 Pv1-F Solar Cable Tinned Copper DC PV Wire 1.5kV For Solar Panel System

Product Advantages

  • Certified & Reliable – Passes global TÜV, UL and IEC certifications. Tinned copper conductor reduces resistance and power loss, keeping your solar system running efficiently.
  • Extreme Weather Resistant – XLPE material stands up to UV, ozone, salt fog and hydrolysis. Works perfectly in deserts, coastal areas and alpine regions, from -40℃ to 120℃.
  • Safe & Eco-Friendly – Halogen-free, low-smoke and flame-retardant (meets IEC 60332-1-2). No toxic gases in case of fire, safe for homes and commercial sites.
  • Easy to Install – Fine-stranded conductor is highly flexible, making it easy to route in tight spaces like rooftop gaps and cable trenches. Saves time on on-site construction.
  • Customizable & Fast Supply – Customize length, printing, packaging or core type (single/double-core). Mainstream sizes are in stock for bulk orders and urgent delivery.

Application Fields

  • Residential distributed PV systems (rooftop, balcony solar)
  • Commercial & industrial rooftop solar stations (factories, warehouses)
  • Large-scale ground-mount solar farms (desert, mountain, fishery-PV)
  • Off-grid & energy storage systems (RV, island power, outdoor base stations)
  • Special-environment projects (coastal, alpine, high-temperature zones)

4mm2 6mm2 10mm2 Pv1-F Solar Cable Tinned Copper DC PV Wire 1.5kV For Solar Panel System

FAQ

Q1: What size should I choose for my project?
A: 4mm² for small home systems; 6mm² for medium rooftop projects; 10mm² for large stations or long-distance wiring (reduces voltage drop).
Q2: Are these cables suitable for coastal areas?
A: Yes. They’re anti-salt fog and anti-hydrolysis, stable even in high-humidity marine environments.
Q3: Do you accept custom orders?
A: Absolutely. We can customize cross-section, length, printing, packaging and core type to fit your regional or project needs.
Q4: How fast can you deliver bulk orders?
A: Mainstream sizes (4/6/10mm²) are in stock. We can ship urgent orders quickly to meet your project timeline.
Q5: Are the cables low-voltage or high-voltage?
A: They’re low-voltage DC cables (1.5kV DC), designed for solar system DC-side wiring (panels to inverters).

Why Choose Us?

We specialize in solar cables with 10+ years of experience. Our production lines follow strict quality control, and we offer competitive prices for bulk orders. Whether you’re a solar installer, distributor or project contractor, we provide one-stop service from customization to delivery, ensuring your project runs smoothly.
