PV1-F Solar Power Cable Approval Battery DC Wire For Solar Panel
PV1-F Solar Power Cable Approval Battery DC Wire For Solar Panel
PV1-F Solar Power Cable Approval Battery DC Wire For Solar Panel
PV1-F Solar Power Cable Approval Battery DC Wire For Solar Panel
PV1-F Solar Power Cable Approval Battery DC Wire For Solar Panel
PV1-F Solar Power Cable Approval Battery DC Wire For Solar Panel
Specifications
Rated Voltage :
1.5KV DC
Working Temperature :
- 45 °+120 °
Model Number :
PV1-F
Type :
Low Voltage
Model :
PV1-F
Price :
usd 0.35 ～ 1/ meter
Supply Ability :
800–1500 kilometers per month
Application :
Photovoltaic Power, Construction, Industrial, Power Station, power station/Industrial/photovoltaic power/
Rated Current :
55A
Sheath :
XLPO/XLPE
Place of Origin :
Shaanxi, China
Delivery Time :
30 days
Jacket :
PVC
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Specification :
6mm ²/ 2.5mm ²/ 4mm ²/ 10mm ²/16mm ²/25mm ²/35mm ²
Conductor Material :
Tin Plated Copper
Brand Name :
F.T
MOQ :
1000
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Description

PV1-F Solar Power Cable Approval Battery DC Wire for Solar Panel

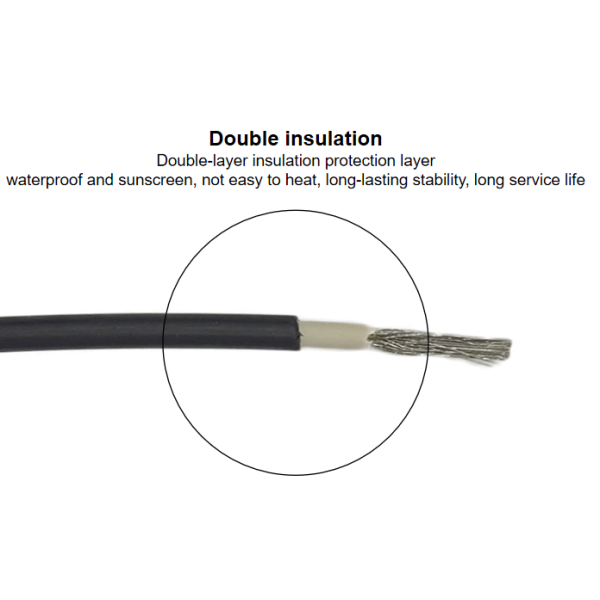

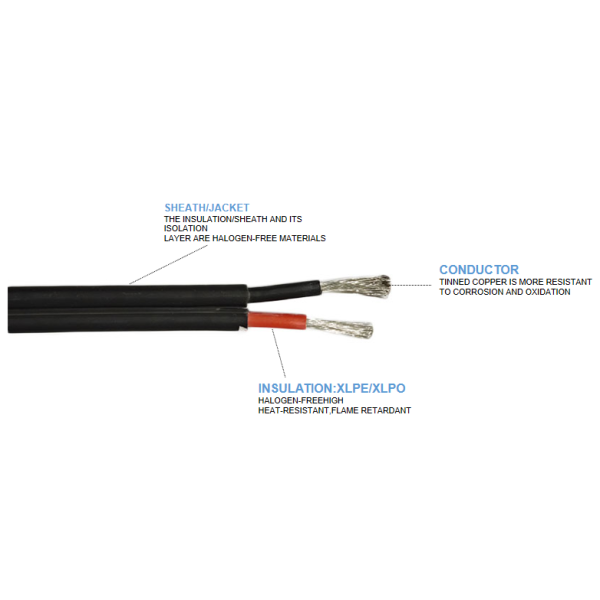

XLPO insulated sheathed photovoltaic solar cable Used to connect solar cells and photovoltaic modules. It adopts anti-oxidation tinned conductor, irradiation cross-linked low-smoke halogen-free flame retardant polyolefin double insulation, has good mechanical structure strength, extremely durable outer sheath has good durability, and can effectively waterproof, resist chemical corrosion and ultraviolet, ozone and other chemicals.
PV1-F Solar Power Cable Approval Battery DC Wire For Solar Panel
Shaanxi
Application
photovoltaic power, Construction, Industrial, Power Station
Conductor Material
tin plated copper
Rated Voltage
1.5KV DC
Rated Current
55A
Brand Name
F.T
Model Number
PV1-F
Type
LOW VOLTAGE
Sheath
XLPO/XLPE
Application
power station/Industrial/photovoltaic power
Working temperature
- 40 ℃ - 120 ℃
Specification
6mm ²/ 2.5mm ²/ 4mm ²/ 10mm ²/16mm ²/25mm ²/35mm ²

Conductor cross‑section(mm²) Conductor structure(n/mm) Stranded outer diameter(mm) Insul. Thick.(mm) Conductor resistance(Ω/km) Ampacity 60℃(A)
2*1.2 30/0.25 0.7 5.00*10.30 13.7 30
2*2.5 49/0.25 0.7 5.20*10.80 8.21 41
2*4.0 56/0.285 0.7 5.50*11.20 5.09 55
2*6.0 84/0.285 0.7 6.20*12.60 3.39 70
2*10.0 84/0.40 0.7 7.5*15.20 1.95 98
2*16.0 128/0.40 0.7 9.60*19.70 1.24 132

PV1-F Solar Power Cable Approval Battery DC Wire For Solar Panel
PV1-F Solar Power Cable Approval Battery DC Wire For Solar Panel

Application Fields of Solar PV Cables

  • Residential Distributed PV Systems
    Household rooftop, balcony and off‑grid solar power systems, for wiring between solar panels, junction boxes and inverters.
  • Commercial & Industrial PV Stations
    Factory, warehouse and commercial building rooftop solar projects, suitable for medium‑high current DC power transmission.
  • Large‑Scale Ground‑Mount Solar Farms
    Desert, mountain, fishery‑PV and agriculture‑PV complementary power plants, adapting to long‑term harsh outdoor conditions.
  • Energy Storage & Off‑Grid Systems
    RV solar power, island power supply, solar water pumps and outdoor base stations, connecting PV modules with energy storage batteries.
  • Special‑Environment Projects
    Coastal salt‑fog areas, alpine cold regions and high‑temperature zones, with excellent corrosion‑resistant and anti‑aging performance.

PV1‑F Solar Cable FAQ

Q1: What voltage do your PV cables support?

A: Our PV1‑F cables are rated for 1.5kV DC, the standard voltage for most global solar panel DC‑side wiring.

Q2: Which size should I choose: 4mm², 6mm² or 10mm²?

A: 4mm² for small home solar systems; 6mm² for medium rooftop projects; 10mm² for large‑scale stations or long‑distance wiring to reduce voltage drop.

Q3: What is the operating temperature range of your solar cables?

A: They run stably from ‑40℃ to 120℃, suitable for cold high‑altitude, hot desert and coastal salt‑fog environments.

Q4: Do your PV cables have international certifications?

A: Yes. They pass TÜV EN50618, UL4703 and IEC standards, widely approved for global residential, commercial and utility‑scale solar projects.

Q5: Can you provide customized cables and fast delivery?

A: We support customization on length, printing and packaging. Mainstream sizes 4/6/10mm² are in stock for bulk orders and urgent shipment.
