PRODUCT DESCRIPTION

Our PV1-F Solar Cable is specially designed for photovoltaic solar power systems. Adopts high-quality tinned copper conductor and XLPE double insulation, featuring UV resistance, ozone resistance, high temperature resistance, weatherproof and anti-aging.
Suitable for outdoor long-term exposure, solar panel connection, photovoltaic power station wiring, rooftop solar projects and energy storage system layout. Support DC 1000V / 1500V voltage grade, conventional specifications 2.5mm², 4mm², 6mm² available.

Solar Cable Specification Sheet

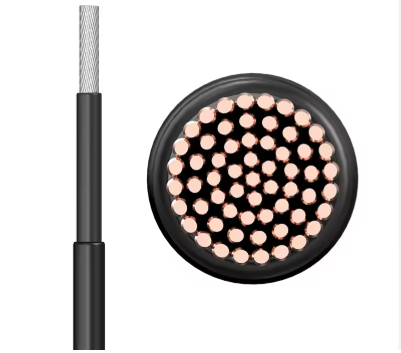

Solar Cable construction

Conductor: Tinned fine copper strands acc.to VDE 0295/IEC 60228, Class 5.

Insulation: XLPO, flame retardant, halogen free electron-beam cross-linked

Jacket: XLPO, flame retardant, halogen freeelectron-beam cross-linked.

Insulation color:black

Jacket color:black or red

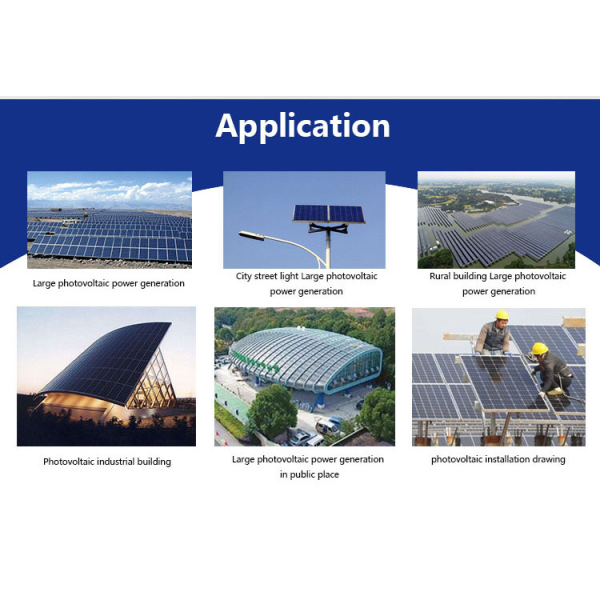

Solar Cable Application

which is designed for connecting photovoltaic system components inside and outside ofbuildings and equipment with high mechanical requirements and extreme weatherconditions. It has the characteristics of UV resistance, wears resistance, and agingresistance, and the service life is more than 25 years.

FAQ

1. What is solar cable?
Solar cable is a specialised DC photovoltaic cable, primarily the PV1-F model, designed for wiring in solar panels, PV power stations and energy storage systems.
2. What are the main specifications?
Common cross-sections: 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm², 35mm², 50mm² etc. Voltage rating: DC 1000V / DC 1500V
3. What material is the conductor made of?
It utilises a tinned copper conductor, offering high conductivity, oxidation resistance and superior stability for long-term outdoor operation.
4. What are the key features?
UV-resistant & weatherproof
High-temperature resistant & anti-ageing
Ozone & corrosion resistant
Flame retardant
Flexible for easy installation
Service life of up to 25+ years
5. Where is solar cable used?
Solar panel connection
Rooftop photovoltaic systems
Large ground-mounted PV power stations
Solar energy storage systems
Outdoor DC power transmission projects
6. Is it suitable for outdoor direct burial and overhead installation?
Yes. The special XLPE insulation material supports overhead installation, conduit installation and direct burial, withstanding high outdoor temperatures, strong sunlight and rainy weather.
7. Do you have certificates?
We provide TUV, UL, IEC and CE certificates, as well as factory test reports and raw material inspection reports.
