Specifications
Brand Name :
Gofun
Model Number :
GFM-CD-15
Certification :
CE/ISO9001
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,Western Union,L/C,Visa
Supply Ability :
20 sets per year
Packaging Details :
International standard packaging for shipping
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
220/380/440V, according to customers
Type :
Dryer
Material :
Food standard SUS 304, 316, accourding to customer
Capacity :
5-1000kg/hour according to customers
Application :
Agricultural and sideline products, seafood, fruits and vegetables, dried fruits
Product name :
Heat Pump Low Temperature Dehumidifier
End products :
Agricultural and sideline products, seafood, dried fruits, etc.
Special process :
Integrated structural design,With high temperature hot air circulation drying
Description

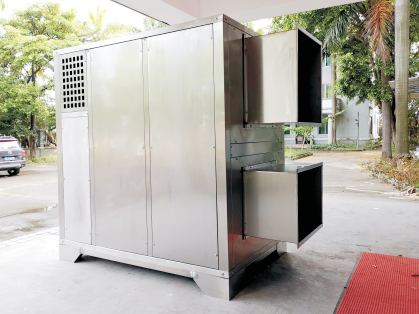

Low-Temperature Dehumidifying for Fruit Drying Machines (Food Processing)
Product Overview

Our Fruit Drying Machines, anchored by the high-performance heat pump low-temperature dehumidifier, are engineered with advanced low dew point dehumidification technology that ingeniously simulates the natural, dry characteristics of the northwest wind in northern winters. This innovative design creates a gentle, stable drying environment with precisely controlled temperature and humidity levels, eliminating the risks of overheating, discoloration, or flavor loss that often plague conventional drying equipment. Unlike traditional high-temperature drying methods that damage the texture and nutritional value of fruits, our system ensures the optimal preservation of materials' original shape, vibrant color, and authentic, fresh flavor throughout the entire drying process. Ideal for a wide range of fruits from berries to tropical varieties, these machines deliver consistent, high-quality dried products while maximizing energy efficiency and reducing operational costs for food processing enterprises.

Working Principle

This fruit drying oven provides heating, cooling, and dehumidification through a sophisticated operational cycle:

  • Moist, hot air is drawn into the system through a negative-pressure circulation fan
  • Air undergoes three-stage cooling and dehumidification process
  • Condensed moisture is efficiently drained away
  • Transformed into low-temperature, low-humidity drying air
  • Heat exchange warms the air while further reducing humidity
  • Conditioned air is distributed back into the drying chamber
Low-Temperature Dehumidifying for Fruit Drying Machines Low-Temperature Dehumidifying for Fruit Drying Machines
Material Applications

Ideal for drying and extracting cell liquid from various materials including:

  • Roses, chrysanthemums, honeysuckle
  • Gardenia, jasmine, American ginseng
  • Cistanche and other Chinese herbal medicines
  • Aquatic products and heat-sensitive fruits
Low-Temperature Dehumidifying for Fruit Drying Machines
Technical Advantages
  • Precise temperature control: 15-30°C adjustable range
  • Accurate humidity control: 5-99% RH adjustable
  • Efficient dehumidification: Average 22KG/hour at 25°C and 70% RH
  • Automatic adjustment: Fan air pressure and speed adapt to conditions
  • Negative pressure cold-air circulation: Ensures excellent drying uniformity
  • Closed system: Maintains stable quality with energy-efficient operation
Technical Specifications
Unit Model Compressor Power Power Input (KW) Heating Power (KW) Rated Temperature Rated Voltage (V) Rated Current (A) Environmental Temperature(℃) Working Fluid Charge(KGS) Sound Level (DB) Machine Size W*L*H(MM) Weight (KG)
GFM-CD-15 6HP 4.5 15 28/30 380 8.6 5-45 4.5 55 1800x1650x1754 450
GFM-CD-30 12HP 9 30 28/30 380 17.2 5-45 9 55 1800x1650x1754 600
Heat Pump System Principle

The high temperature heat pump consists of compressor, condenser, throttling device and evaporator. The refrigerant cycle efficiently transfers low temperature heat to high temperature medium.

Low-Temperature Dehumidifying for Fruit Drying Machines Low-Temperature Dehumidifying for Fruit Drying Machines
Process Display
Low-Temperature Dehumidifying for Fruit Drying Machines Low-Temperature Dehumidifying for Fruit Drying Machines Low-Temperature Dehumidifying for Fruit Drying Machines Low-Temperature Dehumidifying for Fruit Drying Machines Low-Temperature Dehumidifying for Fruit Drying Machines Low-Temperature Dehumidifying for Fruit Drying Machines
Company Information

Gofun Company offers comprehensive turnkey solutions for fruit processing and packaging lines. Our machines have been successfully exported worldwide to Asia, Africa, South America, Europe, and North America.

Low-Temperature Dehumidifying for Fruit Drying Machines Low-Temperature Dehumidifying for Fruit Drying Machines Low-Temperature Dehumidifying for Fruit Drying Machines Low-Temperature Dehumidifying for Fruit Drying Machines
Our Services
  • Technical support
  • Marketing suggestions
  • Final packing suggestion and design
  • Factory building and design
  • Oversea technical support
  • Oversea equipment maintenance
  • English speaking engineers available
