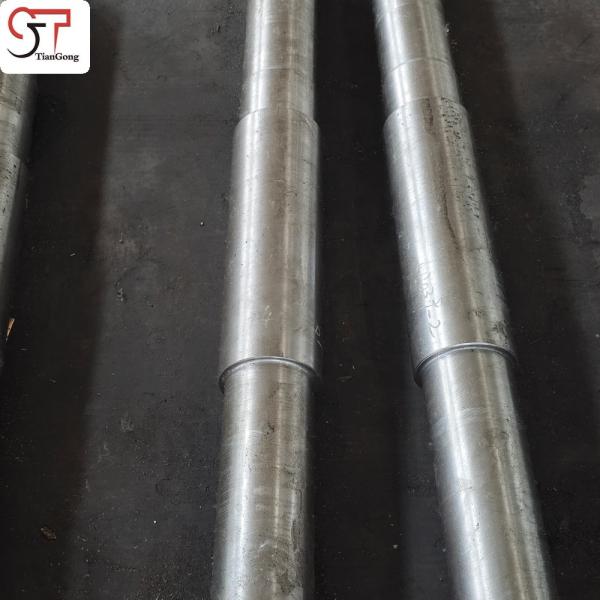

20CrMnTi Drive Shaft Spindle High Speed Low Speed Cold Forged Components
20CrMnTi Drive Shaft Spindle High Speed Low Speed Cold Forged Components
20CrMnTi Drive Shaft Spindle High Speed Low Speed Cold Forged Components
20CrMnTi Drive Shaft Spindle High Speed Low Speed Cold Forged Components
20CrMnTi Drive Shaft Spindle High Speed Low Speed Cold Forged Components
20CrMnTi Drive Shaft Spindle High Speed Low Speed Cold Forged Components
Specifications
Brand Name :
Tian Gong
Certification :
ISO9001, ISO14001,ISO45001
Place of Origin :
Changzhou, China
MOQ :
1
Price :
USD500-USD1000/piece
Payment Terms :
T/T
Supply Ability :
56000 Tons per year
Delivery Time :
30days
Packaging Details :
Pallet
Surface Treatment :
Heat Treatment
Tolerance :
±0.02mm
Size :
Customized according to customer requirements
Weight :
100KG-7TON
Type :
Free Forging
Application :
Machinery, Automotive, Mining, Construction
Processing Method :
20CrMnTi or Customized
Packing :
Wooden Case or Customized
Description

20CrMnTi Drive Shaft Spindle High Speed Shaft Low Speed Shaft Free Forging. Our 20CrMnTi forged shafts are high-performance components made using free forging. This process ensures superior strength, toughness, and wear resistance by optimizing the internal grain structure. Ideal as drive shafts, spindles, high-speed, or low-speed shafts, they transmit power and support rotation in demanding industrial settings.

Key Features

  • Premium Material (20CrMnTi): High-strength, case-hardening alloy steel for excellent toughness and surface hardness.
  • Free Forging Benefits: Achieves superior grain flow, enhances mechanical properties, and allows flexible sizing.
  • Precision & Balance: Engineered for smooth operation and long life in various RPMs.
  • Extreme Durability: Withstands heavy loads, torsion, bending, and wear.

Application Areas

These robust forged shafts are crucial for:

  • Automotive: Drive shafts, transmission components.
  • Heavy Machinery: Drive and spindle shafts for construction/mining.
  • Industrial Gearboxes: High and low-speed transmission shafts.
  • Machine Tools: Spindles for various machines.
  • Wind Energy: Main and gearbox shafts.
  • Pumps & Motors: Rotor and drive shafts.
Item Details
Product Name 20CrMnTi Drive Shaft Spindle High Speed Shaft Low Speed Shaft Free Forging
Material Grades - Case-hardening steel: 20CrMnTi - Excellent wear resistance, core toughness, and dimensional stability after carburizing and quenching - Optimized for spline shafts under rotational and axial stress in solar tracking systems
Forging Equipment - Hydraulic hammers: 3T / 5T / 8T - Open-die forging press with axial forming capabilities - Supports spline shaft forgings with precise grain orientation and improved fiber continuity
Manufacturing Process Hot Forging → Carburizing / Q+T Heat Treatment → Spline Pre-Machining → Ultrasonic & Dimensional Inspection → Optional Surface Treatment
Forging Ratio ≥ 3.0 — Enhances fatigue strength and wear resistance by aligning grain flow along spline direction and shaft axis
Applications - Spline shafts for single-axis and dual-axis solar tracker actuators - Rotary drive links and transmission couplings - Ideal for outdoor PV plants with dynamic load adjustments
Heat Treatment Options Quenched + Tempered for general structural use - Optional stress relief to enhance dimensional stability before finish machining
Testing & Inspection - Chemical: Spectrometer-controlled material composition validation - Mechanical: Hardness (surface/core), tensile, yield, impact testing - Ultrasonic (UT): Focused inspection of spline root and shaft body - Dimensional: Spline profile accuracy, runout, diameter, concentricity
Value-Added Services - Pre-machining of spline teeth, journal ends, keyways, shoulders - Surface coatings: phosphating, zinc plating, or anti-rust oil - Custom shaft lengths, bore features, and end configurations - Steel banding, end cap protection, heat number traceability

The steel forgings production flow:

Raw material steel ingot into warehouse(test the chemical composition) → Cutting→ Heating(Furnace temperature test) → Heat treatment after forging(Furnace temperature test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal dimension, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment.

20CrMnTi Drive Shaft Spindle High Speed Low Speed Cold Forged Components

20CrMnTi Drive Shaft Spindle High Speed Low Speed Cold Forged Components

20CrMnTi Drive Shaft Spindle High Speed Low Speed Cold Forged Components

Frequently Asked Questions (FAQs)
1. What is your forging weight range?
We produce forged parts ranging from 100 kg to 7000 kg.

2. Do you provide heat treatment and machining?
Yes, we offer full in-house heat treatment, rough, and finish machining services.

3. Which industries do you supply to?
We serve wind energy, heavy equipment, port machinery, transmission systems, and more.

4. What is your production lead time?

With stock: Around 30 days

Without stock: 40–45 days

5. Where is your factory located?
In Changzhou City, near Shanghai, with shipping via Shanghai Port.

Request a Quote
Please send your technical drawings and requirements to us. Our engineers will review and provide you with a professional quotation and solution shortly.
