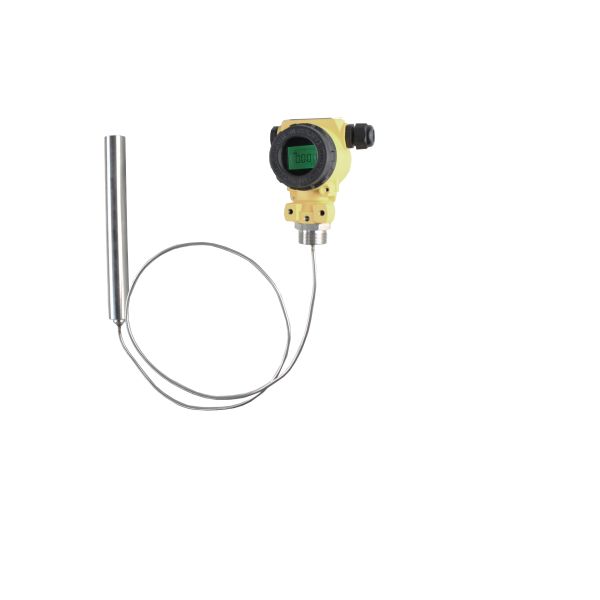

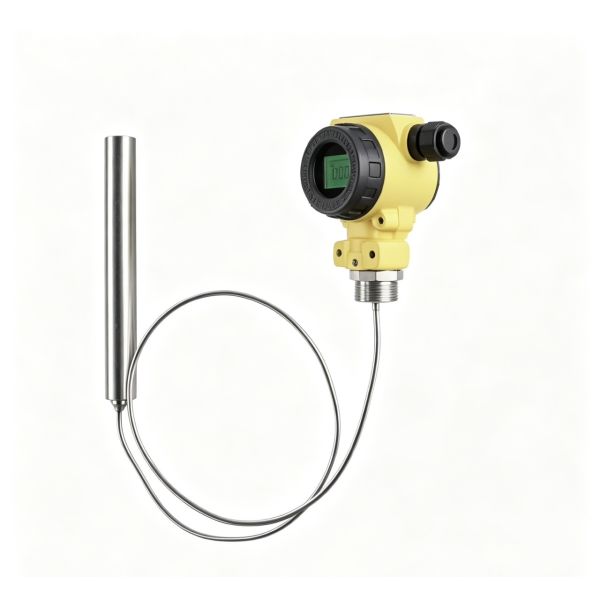

FD86T Guided Pressure Level Transmitter | FRD SENSOR Shandong FRD
FD86T Guided Pressure Level Transmitter | FRD SENSOR Shandong FRD
FD86T Guided Pressure Level Transmitter | FRD SENSOR Shandong FRD
FD86T Guided Pressure Level Transmitter | FRD SENSOR Shandong FRD
FD86T Guided Pressure Level Transmitter | FRD SENSOR Shandong FRD
FD86T Guided Pressure Level Transmitter | FRD SENSOR Shandong FRD
FD86T Guided Pressure Level Transmitter | FRD SENSOR Shandong FRD
FD86T Guided Pressure Level Transmitter | FRD SENSOR Shandong FRD
FD86T Guided Pressure Level Transmitter | FRD SENSOR Shandong FRD
FD86T Guided Pressure Level Transmitter | FRD SENSOR Shandong FRD
Specifications
Price :
USD 50-200/piece
Working Temperature :
-10℃ ~ 60℃
Supply Ability :
Production output can be flexibly adjusted according to order quantity.
Protection Class :
IP65(Housing) IP68(Sensor)
Place of Origin :
China
Protocol :
MODBUS RTU , HART
Model Number :
FD86T
Accuracy :
0.25%FS, 0.5%FS
MOQ :
1piece
Delivery Time :
5-8 work days
Power Supply :
(16～28)VDC (24VDC recommended)
Display :
LCD Display
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Long-term Stability :
0.3% F.S / year
Certification :
IP68
Output Signal :
4～20mA with HART, 1V ~ 5V DC, RS485 protocol
Brand Name :
FRD
Range :
0-1m~10m H2O
Packaging Details :
Carton Package/Wooden Crate Package
Housing :
2088 Type
Description
FRD FD86T Anti-corrosion Submersible Liquid Level Sensor 4-20mA Output
FRD SENSOR FD86T guided pressure level transmitter made in Shandong. 316L stainless steel, IP68 protection, non-contact sensor design for high temp & corrosive liquid. 4-20mA output, wide measuring range, ideal for chemical, wastewater, metallurgy industry. Custom service available.
Features
  • Non-contact measuring structure, sensor isolated from corrosive/high-temperature medium, extend service life
  • Adopts high-precision diffused silicon pressure core, measurement accuracy up to 0.5%FS
  • Full 316L stainless steel integrated welding, strong anti-corrosion performance
  • IP68 full waterproof & anti-condensation design, stable in long-term submerged working
Products Parameters
Range 0-1m~10m H2O
Accuracy 0.25%FS, 0.5%FS
Output Signal 4～20mA with HART, 1V ~ 5V DC, RS485 protocol
Protocol MODBUS RTU , HART
Power Supply (16～28)VDC (24VDC recommended)
Working Temperature -10℃ ~ 60℃
Long-term Stability 0.3% F.S / year
Protection Class IP65(Housing) IP68(Sensor)
Display LCD Display
Housing 2088 Type
Products Warranty 12 moths
Applications
  • Wastewater treatment plant: regulating tank, sedimentation tank, underground monitoring well
  • Chemical & pharmaceutical industry: acid/alkali storage tank, high-temperature reaction vessel
  • Metallurgy & power plant: cooling water pool, sewage pool, boiler water level monitoring
  • Papermaking industry: pulp tank, wastewater pool corrosive liquid measurement
  • Municipal water supply: clean water tank, underground water level monitoring
Product dimensions, specifications and parameters are for reference only. For specific details, please contact us, and we will provide you with professional answers.
FAQ
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: How long is the delivery time for the product?
A: We will provide a specific delivery time based on your order quantity. For orders of 1 to 30 pcs, the delivery time is approximately 2 to 5 working days.
Q: How do you control your quality ?
A: Full inspection process (Incoming Material Screening, Process Control, and Performance Verification) to ensure quality + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A: We hold 6 invention patents, possess certifications for CE, ATEX, and SIL, and are a member of the HART Protocol. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide ODM/OEM & Customized service?
