Specifications
Working Temperature :
-10℃ ~ 60℃
Price :
USD 50-200/piece
Accuracy :
0.25%FS, 0.5%FS
Model Number :
FD86E
Power Supply :
(16～28)VDC (24VDC recommended)
MOQ :
1piece
Delivery Time :
5-8 work days
Long-term Stability :
0.3% F.S / year
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Output Signal :
4～20mA with HART, 1V ~ 5V DC, RS485 protocol
Certification :
IP68
Range :
0-1m~200m
Brand Name :
FRD
Packaging Details :
Carton Package/Wooden Crate Package
Protection Class :
IP65(Housing) IP68(Sensor)
Supply Ability :
Production output can be flexibly adjusted according to order quantity.
Protocol :
MODBUS RTU , HART
Place of Origin :
China
Description

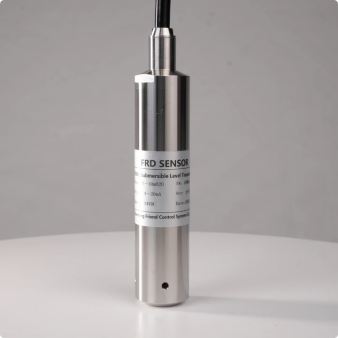

FRD FD86E Fully Digital Intelligent Compensated Pressure Transmitter

FD86E high-performance pressure transmitter is an upgraded digitally compensated pressure measuring instrument designed for harsh industrial, municipal sewage and chemical working conditions. It adopts advanced high-resolution piezoresistive sensing chip and full digital algorithm, supporting ultra-precise temperature compensation and multi-order nonlinear correction. Compared with FD80D standard model, it adds anti-blocking pressure port, 316L all stainless steel anti-corrosion structure and dual signal output function. The integrated compact body supports measuring range from 0-100kPa to 7MPa, with stronger anti-interference ability. It can stably and accurately measure pressure of clean water, sewage, weak corrosive liquid and industrial gas for long-term continuous monitoring.

Feature
  • Full digital intelligent pressure compensation, ultra-low zero drift for long-term use
  • High-precision multi-order digital temperature & nonlinear correction, smaller measurement error
  • All 316L stainless steel body, anti-corrosion for sewage and weakly corrosive media
  • Detachable anti-clog pressure port, prevent blockage from sludge and impurities
  • Dual output options: 4-20mA + RS485, optional HART communication protocol
Products Parameters
Range 0-1m~200m
Accuracy 0.25%FS, 0.5%FS
Output Signal 4～20mA with HART, 1V ~ 5V DC, RS485 protocol
Protocol MODBUS RTU , HART
Power Supply (16～28)VDC (24VDC recommended)
Working Temperature -10℃ ~ 60℃
Long-term Stability 0.3% F.S / year
Protection Class IP65(Housing) IP68(Sensor)
Products Warranty 12 moths
Applications
  • Municipal sewage treatment plant, sedimentation tank and pipeline pressure monitoring
  • Chemical factory weak acid & alkali storage tank, process pipeline pressure detection
  • Reservoir pump station, deep well water supply pipeline pressure real-time collection
  • Industrial circulating water, hydraulic equipment, filtration system pressure control
Product Drawing
FD86E High Precision Corrosion Resistant Pressure Transmitter with Dual Signal Output for Industrial Use FD86E High Precision Corrosion Resistant Pressure Transmitter with Dual Signal Output for Industrial Use
Product dimensions, specifications and parameters are for reference only. For specific details, please contact us, and we will provide you with professional answers.
FAQ
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: How long is the delivery time for the product?
A: We will provide a specific delivery time based on your order quantity. For orders of 1 to 50 pcs, the delivery time is approximately 2 to 5 working days.
Q: How do you control your quality ?
A: Full inspection process (Incoming Material Screening, Process Control, and Performance Verification) to ensure quality + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A: We hold 6 invention patents, possess certifications for CE, ATEX, and SIL, and are a member of the HART Protocol. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
