Submersible Pressure Transducer FD86F High Accuracy Liquid Depth Measurement For Harsh Environments
Submersible Pressure Transducer FD86F High Accuracy Liquid Depth Measurement For Harsh Environments
Submersible Pressure Transducer FD86F High Accuracy Liquid Depth Measurement For Harsh Environments
Submersible Pressure Transducer FD86F High Accuracy Liquid Depth Measurement For Harsh Environments
Specifications
Brand Name :
FRD
Model Number :
FD86F
Certification :
IP65, IP68
Place of Origin :
China
Range :
0-1m~200m
Long-term Stability :
0.3% F.S / year
Accuracy :
0.25%FS, 0.5%FS
Products Warranty :
12 moths
Description

FD86F Submersible Level Transmitter 2088 Housing: High-Accuracy Liquid Depth Measurement for Harsh Environments

Product Description

The FD86F series submersible level transmitter adopts a high-performance pressure sensor as its measuring element. It converts liquid level (corresponding to static pressure) into a precise electrical signal via specialized signal conditioning circuits, then outputs standard signals to realize accurate liquid depth measurement. Encased in a full stainless steel structure (sensor with IP68 protection), this compact device can be directly submerged in liquid, serving as a reliable solution for precise liquid level monitoring.

Features
  • No moving parts: ensures stable, long-term reliable performance
  • Adaptable to harsh environments (field, open-air, etc.)
  • Laser marking: delivers a neat, professional appearance
Products Parameters
Range 0-1m~200m H2O
Accuracy 0.25%FS, 0.5%FS
Output Signal 4～20mA with HART, 1V ~ 5V DC, RS485 protocol
Protocol MODBUS RTU , HART
Power Supply (16～28)VDC (24VDC recommended)
Working Temperature -10℃ ~ 60℃
Long-term Stability 0.3% F.S / year
Protection Class IP65(Housing) IP68(Sensor)
Display LCD Display
Housing 2088 Type
Products Warranty 12 moths
Applications
  • Chemical storage tanks
  • Sewage treatment ponds
  • Water conservancy facilities (river/lake level monitoring)
  • Industrial process tanks
  • Open-air liquid storage systems

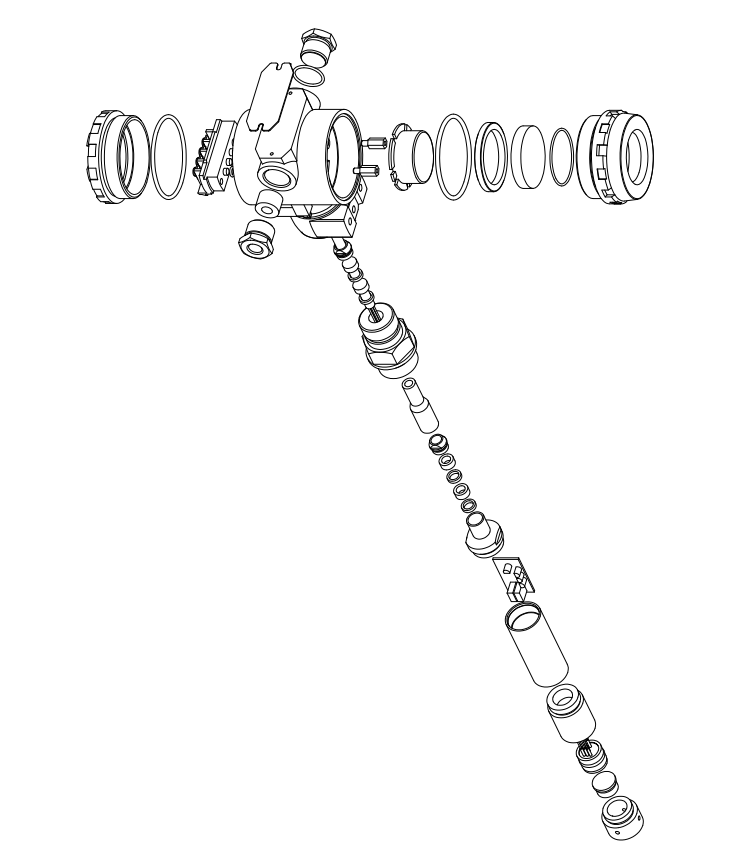

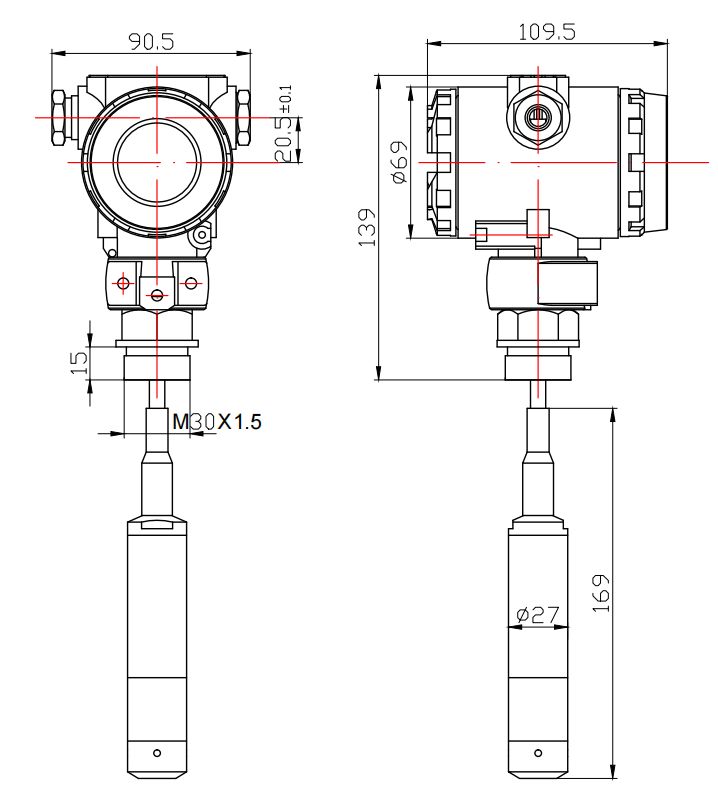

Product Drawing
Submersible Pressure Transducer FD86F High Accuracy Liquid Depth Measurement For Harsh Environments
Submersible Pressure Transducer FD86F High Accuracy Liquid Depth Measurement For Harsh Environments
Product dimensions, specifications and parameters are for reference only. For specific details, please contact us, and we will provide you with professional answers.
Packing and Shipping
Submersible Pressure Transducer FD86F High Accuracy Liquid Depth Measurement For Harsh Environments
FAQ
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: How long is the delivery time for the product?
A: We will provide a specific delivery time based on your order quantity. For orders of 1 to 30 pcs, the delivery time is approximately 2 to 5 working days.
Q: How do you control your quality ?
A: Full inspection process (Incoming Material Screening, Process Control, and Performance Verification) to ensure quality + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A: We hold 6 invention patents, possess certifications for CE, ATEX, and SIL, and are a member of the HART Protocol. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide ODM/OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
