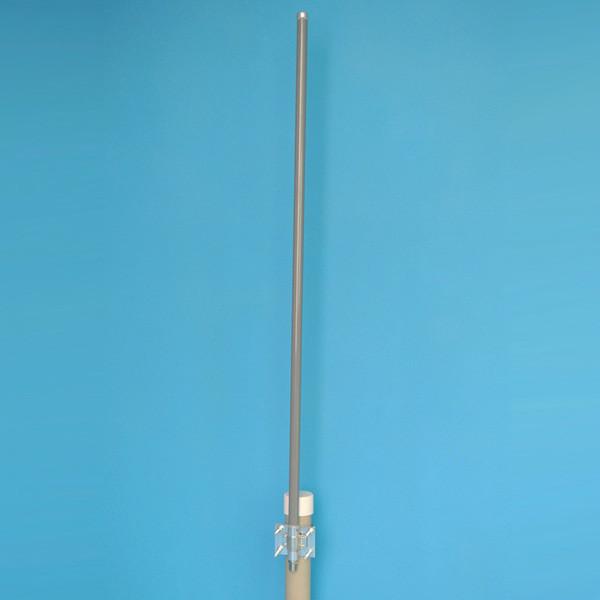

169 MHz Omni-directional Fiberglass Antenna 168mhz
169 MHz Omni-directional Fiberglass Antenna 168mhz
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-169-5
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range(MHz) :
163-173
Polarization :
Vertical
Gain(dBi) :
5
VSWR :
≤1.5
Input connector type :
N Female or request
Dimensions-mm (Height/Width/Depth) :
Φ20*1550
Description

169 MHz Omni-directional Fiberglass Antenna 168mhz

Feature:

Exquisite appearance

Good impact resistance, waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain, low standing wave, strong anti-interference ability

Application:

169 MHz system

163-173 MHz system

Point-to-multipoint system

AMXF-169-5

Electrical Specifications
Frequency range(MHz) 163-173
Bandwidth(MHz) 10
Gain(dBi) 5
Half-power beam width(°) H:360 V:55
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical, Linear
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N Female or Requested
Mechanical Specifications
Dimensions(mm) Φ20*1550
Antenna weight(kg) 0.65
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color Gray or White or others
Radome Material Fiberglass
Waterproof Standard IP65/ IP67
Mounting way Wall/ Pole-holding
Mounting hardware(mm) ￠35 - ￠50
