470-510MHz 5dBi Omni Fiberglass Antenna UHF outdoor waterproof water meters antenna
470-510MHz 5dBi Omni Fiberglass Antenna UHF outdoor waterproof water meters antenna
470-510MHz 5dBi Omni Fiberglass Antenna UHF outdoor waterproof water meters antenna
470-510MHz 5dBi Omni Fiberglass Antenna UHF outdoor waterproof water meters antenna
470-510MHz 5dBi Omni Fiberglass Antenna UHF outdoor waterproof water meters antenna
470-510MHz 5dBi Omni Fiberglass Antenna UHF outdoor waterproof water meters antenna
470-510MHz 5dBi Omni Fiberglass Antenna UHF outdoor waterproof water meters antenna
470-510MHz 5dBi Omni Fiberglass Antenna UHF outdoor waterproof water meters antenna
470-510MHz 5dBi Omni Fiberglass Antenna UHF outdoor waterproof water meters antenna
470-510MHz 5dBi Omni Fiberglass Antenna UHF outdoor waterproof water meters antenna
470-510MHz 5dBi Omni Fiberglass Antenna UHF outdoor waterproof water meters antenna
470-510MHz 5dBi Omni Fiberglass Antenna UHF outdoor waterproof water meters antenna
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXF-4751-5
Certification :
ISO 9001: 2008
Price :
EXW Price
Packaging Details :
PP bag /inner box/master carton or customized
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
100
Frequency range（MHz） :
470-510mhz
Bandwidth（MHz） :
40
Gain（dBi） :
5
Half-power beam width（°） :
H:360 V:30
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground

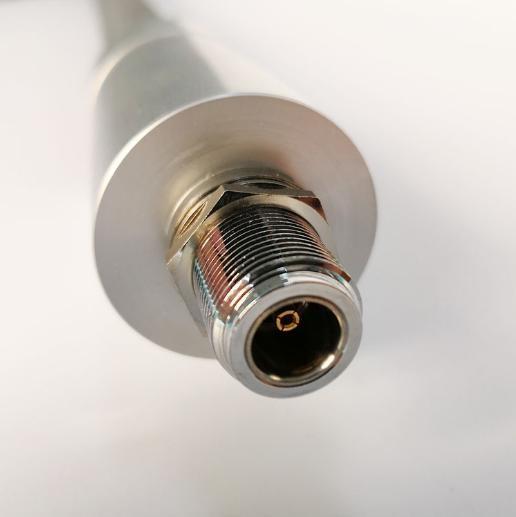

Input connector type :
N type
Description

470-510MHz 5dBi Omni Fiberglass Antenna UHF outdoor waterproof water meters antenna

Feature:

Exquisite appearance

Good impact resistance, waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain, low standing wave, strong anti-interference ability

Application:

470/480/490/500/510MHz system

Point-to-multipoint system

AMXF-4751-5

Electrical Specifications
Frequency range(MHz) 470-510
Bandwidth(MHz) 40
Gain(dBi) 5
Half-power beam width(°) H:360 V:30
VSWR ≤1.7
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N Female or Requested
Mechanical Specifications
Dimensions (mm) Φ32*1240
Antenna weight(kg) 0.6
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color Gray or White or others
Radome Material Fiberglass
Waterproof Standard IP65/ IP67
Mounting way Pole-holding
Mounting hardware(mm) ￠35 - ￠50
