Ameison 150MHz 5dBi Omni Directional Fiberglass Antenna
Ameison 150MHz 5dBi Omni Directional Fiberglass Antenna
Ameison 150MHz 5dBi Omni Directional Fiberglass Antenna
Ameison 150MHz 5dBi Omni Directional Fiberglass Antenna
Ameison 150MHz 5dBi Omni Directional Fiberglass Antenna
Ameison 150MHz 5dBi Omni Directional Fiberglass Antenna
Ameison 150MHz 5dBi Omni Directional Fiberglass Antenna
Ameison 150MHz 5dBi Omni Directional Fiberglass Antenna
Ameison 150MHz 5dBi Omni Directional Fiberglass Antenna
Ameison 150MHz 5dBi Omni Directional Fiberglass Antenna
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXF-150-5
Certification :
ISO 9001: 2008
Price :
EXW Price
Packaging Details :
PP bag /inner box/master carton or customized
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
100
Frequency range（MHz） :
150±6
Bandwidth（MHz） :
12
Gain（dBi） :
3
Half-power beam width（°） :
H:360 V:55
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Mounting way :
Pole-holding
Description

150 MHz Omni directional wifi antenna
Factory price

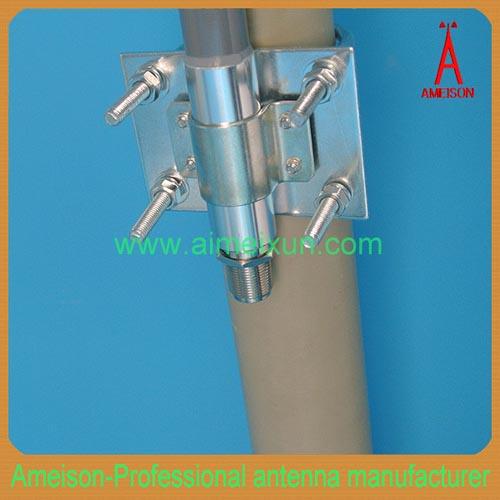

Mounting Kit Included for pole mount
Weatherproof & Corrosion Resistant

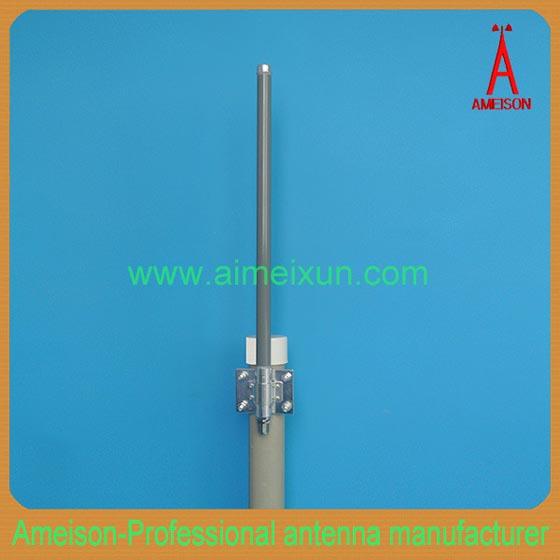

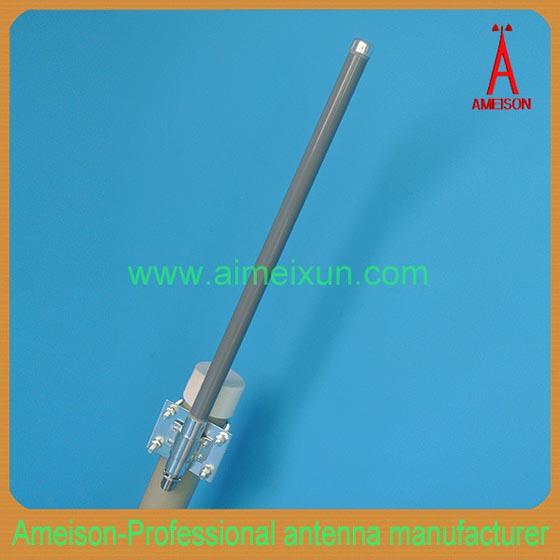

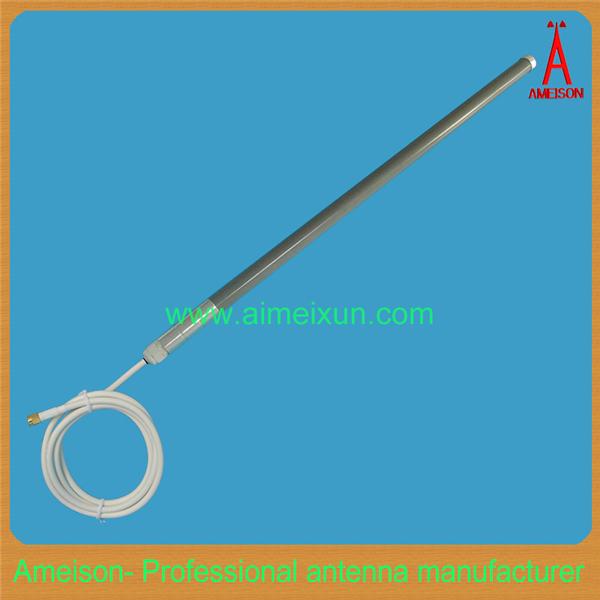

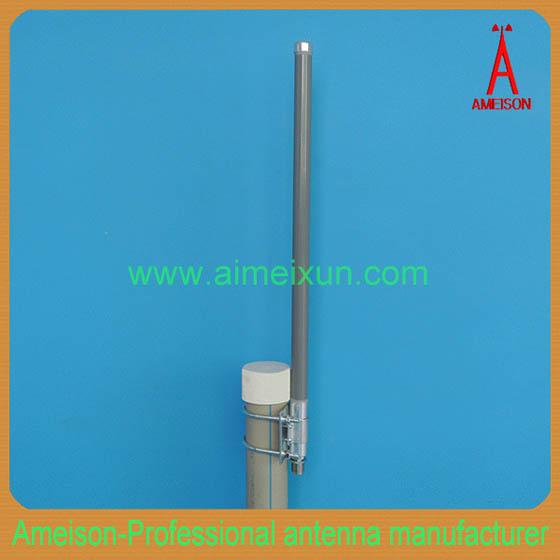

150MHz Omnidirectional Fiberglass Antenna

AMXF-150-5

Feature:

Exquisite appearance

Good impact resistance,

waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain,low standing wave,strong anti-interference ability

Application:

150MHz system

Point-to-multipoint system

AMXF-150-5

Electrical Specifications

Frequency range(MHz)

150±6

Bandwidth(MHz)

12

Gain(dBi)

3

Half-power beam width(°)

H:360 V:55

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

N Female or Requested

Mechanical Specifications

Dimensions(mm)

Φ20*1550

Antenna weight(kg)

0.65

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome color

Gray

Mounting way

Pole-holding

Mounting hardware(mm)

￠35-￠50
