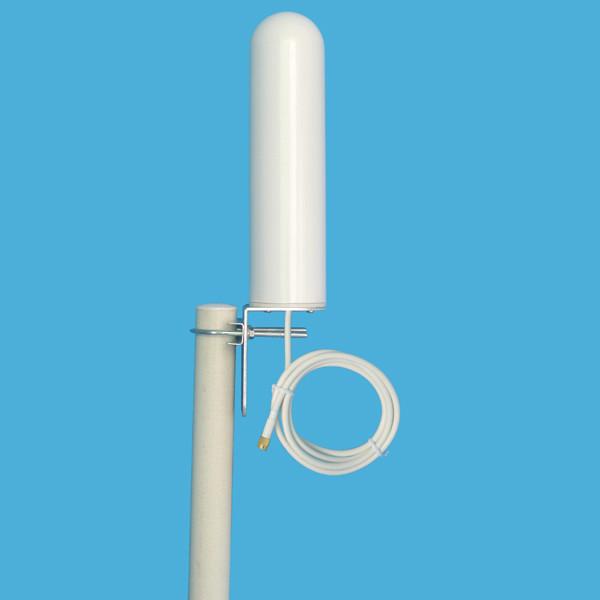

806-2700MHz Omnidirectional Fiberglass Antenna CDMA GSM PCS 3G WLAN antenna
806-2700MHz Omnidirectional Fiberglass Antenna CDMA GSM PCS 3G WLAN antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-8027-5
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range（MHz） :
806-960 / 1710-2700
Bandwidth（MHz） :
154 / 990
Gain（dBi） :
3 / 5
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
SMA Male or Requested
Mounting way :
Pole-holding
Description

806-2700MHz Omnidirectional Fiberglass Antenna CDMA GSM PCS 3G WLAN antenna

Feature:

Exquisite appearance

Good impact resistance, waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain, low standing wave, strong anti-interference ability

Application:

GSM/CDMA/PCS/3G/WLAN/4G LTE system

Point-to-multipoint system

AMXF-8027-5

Electrical Specifications
Frequency range(MHz) 806～960/1710～2700
Bandwidth(MHz) 154/990
Gain(dBi) 3/5
Half-power beam width(°) H:360 V:55
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type SMA-Male or Requested
Mechanical Specifications
Dimensions (mm) Φ60*230
Antenna weight(kg) 0.60
Operating temperature(°c) -40～60
Radome material ABS
Rated Wind Velocity(m/s) 60
Radome color White or customized
Mounting way Wall/ Pole-holding
Waterproof Standard IP65/ IP67
Mounting hardware(mm) ￠35-￠50
