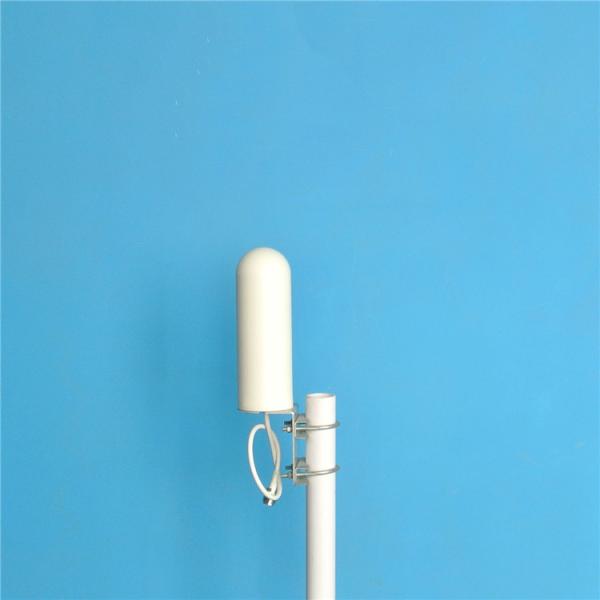

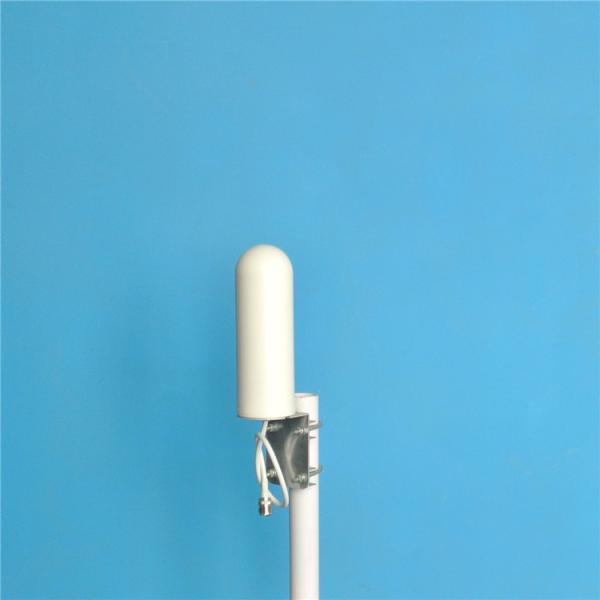

AMEISON 800-2500MHz Omnidirectional Fiberglass Antenna High gain For CDMA/GSM/PCS/3G/WLAN/LTE system
AMEISON 800-2500MHz Omnidirectional Fiberglass Antenna High gain For CDMA/GSM/PCS/3G/WLAN/LTE system
AMEISON 800-2500MHz Omnidirectional Fiberglass Antenna High gain For CDMA/GSM/PCS/3G/WLAN/LTE system
AMEISON 800-2500MHz Omnidirectional Fiberglass Antenna High gain For CDMA/GSM/PCS/3G/WLAN/LTE system
AMEISON 800-2500MHz Omnidirectional Fiberglass Antenna High gain For CDMA/GSM/PCS/3G/WLAN/LTE system
AMEISON 800-2500MHz Omnidirectional Fiberglass Antenna High gain For CDMA/GSM/PCS/3G/WLAN/LTE system
AMEISON 800-2500MHz Omnidirectional Fiberglass Antenna High gain For CDMA/GSM/PCS/3G/WLAN/LTE system
AMEISON 800-2500MHz Omnidirectional Fiberglass Antenna High gain For CDMA/GSM/PCS/3G/WLAN/LTE system
AMEISON 800-2500MHz Omnidirectional Fiberglass Antenna High gain For CDMA/GSM/PCS/3G/WLAN/LTE system
AMEISON 800-2500MHz Omnidirectional Fiberglass Antenna High gain For CDMA/GSM/PCS/3G/WLAN/LTE system
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-8025-4
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range（MHz） :
800-960 / 1710-2500
Bandwidth（MHz） :
154 / 790
Gain（dBi） :
3/4
VSWR :
≤1.5~2.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
SMA Male or Requested
Mounting way :
Pole-holding
Description

AMEISON 800-2500MHz Omnidirectional Fiberglass Antenna High gain For CDMA/GSM/PCS/3G/WLAN/LTE system

AMXF-8025-4

Feature:

Exquisite appearance

Good impact resistance, waterproofing and anticorrosion ability

Full day working

Optimized dimension

Low standing wave, strong anti-interference ability

Application:

CDMA/GSM/PCS/3G/WLAN system

Point-to-multipoint system

AMXF-8025-4

Electrical Specifications

Frequency range(MHz)

806-960 / 1710-2500

Bandwidth(MHz)

154 / 790

Gain(dBi)

3/4

Half-power beam width(°)

H:360 V:55/65

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

SMA Male or Requested

Mechanical Specifications

Dimensions (mm)

Φ60*180

Antenna weight(kg)

0.6

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome color

Gray

Mounting way

Pole-holding

Mounting hardware(mm)

￠35-￠50
