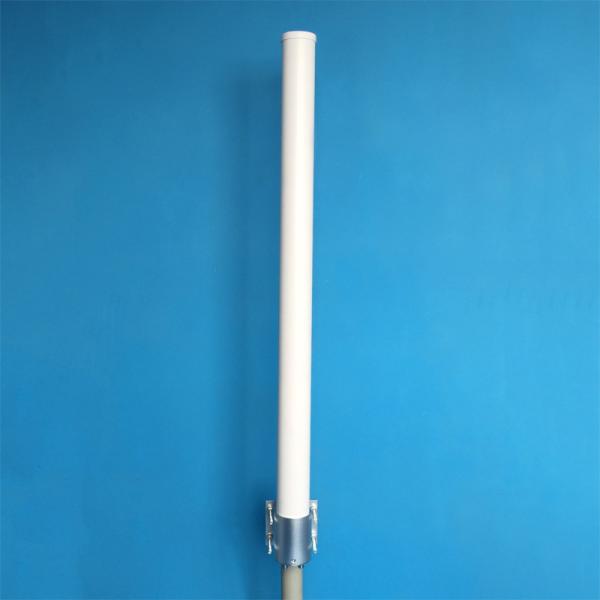

AMEISON WIFI 2400-2483MHz Directional Omnidirectional Antenna dual Polarization 2.4ghz with N female
AMEISON WIFI 2400-2483MHz Directional Omnidirectional Antenna dual Polarization 2.4ghz with N female
AMEISON WIFI 2400-2483MHz Directional Omnidirectional Antenna dual Polarization 2.4ghz with N female
AMEISON WIFI 2400-2483MHz Directional Omnidirectional Antenna dual Polarization 2.4ghz with N female
AMEISON WIFI 2400-2483MHz Directional Omnidirectional Antenna dual Polarization 2.4ghz with N female
AMEISON WIFI 2400-2483MHz Directional Omnidirectional Antenna dual Polarization 2.4ghz with N female
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-2400VH-12
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range（MHz） :
2400～2483
Polarization :
Vertical and Horizontal
Gain（dBi） :
12
Half-power beam width（°） :
H:360 V :10
VSWR :
≤1.5
Maximum input power（W） :
100
Lightning protection :
DC Ground
Input connector type :
N male
Description

AMEISON WIFI 2400-2483MHz Directional Omnidirectional Antenna dual Polarization 2.4ghz with N female

Feature:

Exquisite appearance

Good impact resistance,waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain,low standing wave,strong anti-interference ability

Application:

2.4G/Wifi/Wlan system

Point-to-multipoint system

AMXF-2400VH-12

Electrical Specifications
Frequency range(MHz) 2400～2483
Bandwidth(MHz) 83
Gain(dBi) 2*12
Half-power beam width(°) H:360 V:10
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical and Horizontal
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N Female or Requested
Mechanical Specifications
Dimensions(mm) Φ75*1200
Antenna weight(kg) 2.6
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color Gray
Mounting way Pole-holding
Mounting hardware(mm) ￠35-￠75
