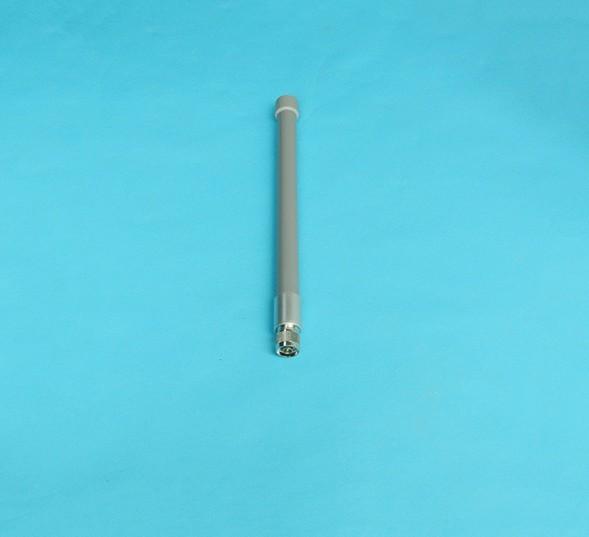

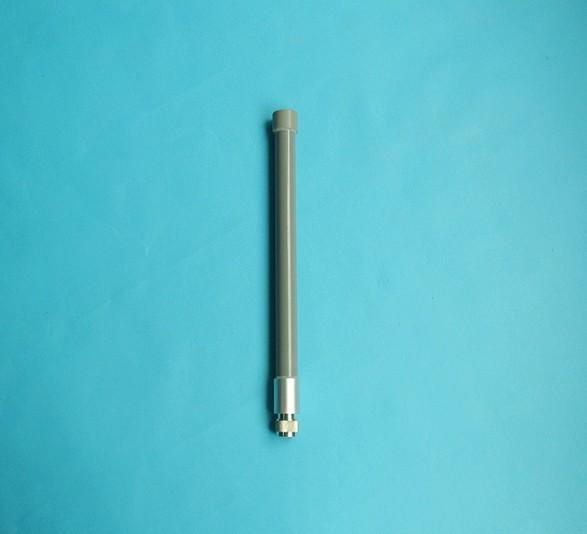

2.4G and 5.8G dual band Omni directional fiberglass antenna high gain for WIFI/WLAN
2.4G and 5.8G dual band Omni directional fiberglass antenna high gain for WIFI/WLAN
2.4G and 5.8G dual band Omni directional fiberglass antenna high gain for WIFI/WLAN
2.4G and 5.8G dual band Omni directional fiberglass antenna high gain for WIFI/WLAN
2.4G and 5.8G dual band Omni directional fiberglass antenna high gain for WIFI/WLAN
2.4G and 5.8G dual band Omni directional fiberglass antenna high gain for WIFI/WLAN
2.4G and 5.8G dual band Omni directional fiberglass antenna high gain for WIFI/WLAN
2.4G and 5.8G dual band Omni directional fiberglass antenna high gain for WIFI/WLAN
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-2458-D4D6
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range（MHz） :
2400～2500/5150-5850
Polarization :
Vertical
Gain（dBi） :
4/6
Half-power beam width（°） :
H:360 V :38/28
VSWR :
≤1.5
Maximum input power（W） :
100
Lightning protection :
DC Ground

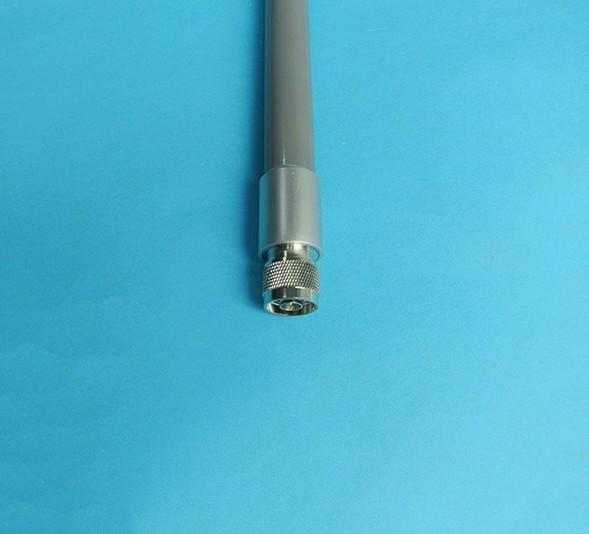

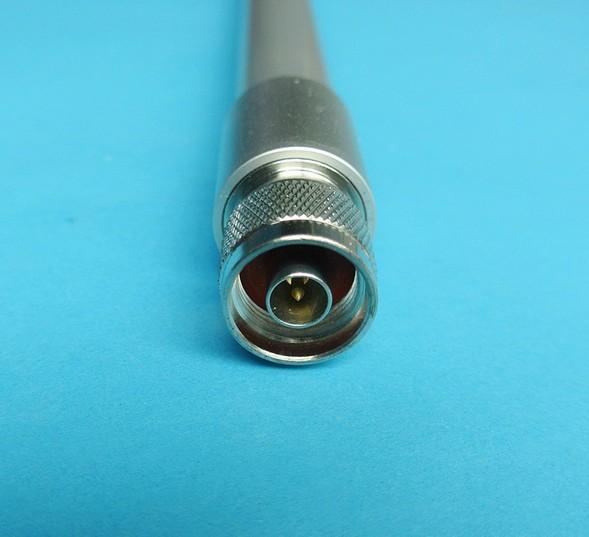

Input connector type :
N male
Description

2.4G and 5.8G dual band Omni directional fiberglass antenna high gain for WIFI/WLAN

Feature:
Exquisite appearance
Good impact resistance,waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain,low standing wave,strong anti-interference ability

Application:
2.4/5.8G WIFI Wlan system
Point-to-multipoint system

AMXF-2458-D4D6

Electrical Specifications
Frequency range(MHz) 2400-2483 5150-5850
Gain(dBi) 4 6
Half-power beam width(°) H:360 V:38 H:360 V:28
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N male or Requested
Mechanical Specifications
Dimensions-mm (Height/Width/Depth) ￠20*280
Antenna weight(kg) 0.15
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome material Fiberglass
Radome color Gray
Waterproof Standard IP54/ IP65/ IP67
