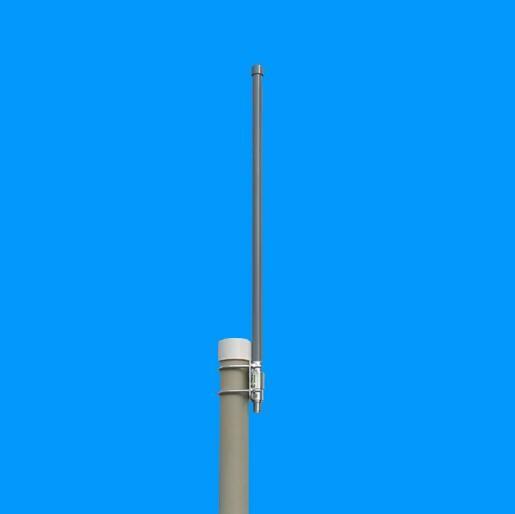

Ameison Outdoor high gain antenna wideband 5GHz 12dBi Omnidirectional Fiberglass Antenna
Ameison Outdoor high gain antenna wideband 5GHz 12dBi Omnidirectional Fiberglass Antenna
Ameison Outdoor high gain antenna wideband 5GHz 12dBi Omnidirectional Fiberglass Antenna
Ameison Outdoor high gain antenna wideband 5GHz 12dBi Omnidirectional Fiberglass Antenna
Ameison Outdoor high gain antenna wideband 5GHz 12dBi Omnidirectional Fiberglass Antenna
Ameison Outdoor high gain antenna wideband 5GHz 12dBi Omnidirectional Fiberglass Antenna
Ameison Outdoor high gain antenna wideband 5GHz 12dBi Omnidirectional Fiberglass Antenna
Ameison Outdoor high gain antenna wideband 5GHz 12dBi Omnidirectional Fiberglass Antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-5158-12
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range（MHz） :
5150～5850
Bandwidth（MHz） :
700
Gain（dBi） :
12
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Mounting way :
Pole-holding
Color :
Gray or request
Radome :
Fiberglass
Product name :
5.8ghz wifi omni fiberglass antenna
Description

Ameison Outdoor high gain antenna wideband 5GHz 12dBi Omnidirectional Fiberglass Antenna

Feature:

●Exquisite appearance

●Good impact resistance,waterproofing and anticorrosion ability

●Full day working

●Optimized dimension

●High gain,low standing wave,strong anti-interference ability

Application:

●5.8G Wifi Wlan system

●Point-to-multipoint system

Ameison Outdoor high gain antenna wideband 5GHz 12dBi Omnidirectional Fiberglass Antenna

AMXF-5158-12

Electrical Specifications
Frequency range(MHz) 5150～5850
Bandwidth(MHz) 700
Gain(dBi) 12
Half-power beam width(°) H:360 V:6
VSWR ≤1.8
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N Female or Requested
Mechanical Specifications
Dimensions (mm) Φ20*580
Antenna weight(kg) 0.28
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color Gray

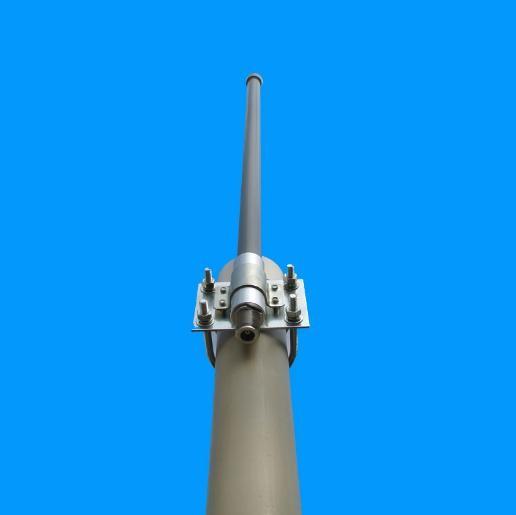

Mounting way Pole-holding
Mounting hardware(mm) ￠35-￠50
