AMEISON manufacturer 2.4G outdoor omni-directional fiberglass antenna 6dbi WIFI omni antenna covering 360 degree
AMEISON manufacturer 2.4G outdoor omni-directional fiberglass antenna 6dbi WIFI omni antenna covering 360 degree
AMEISON manufacturer 2.4G outdoor omni-directional fiberglass antenna 6dbi WIFI omni antenna covering 360 degree
AMEISON manufacturer 2.4G outdoor omni-directional fiberglass antenna 6dbi WIFI omni antenna covering 360 degree
AMEISON manufacturer 2.4G outdoor omni-directional fiberglass antenna 6dbi WIFI omni antenna covering 360 degree
AMEISON manufacturer 2.4G outdoor omni-directional fiberglass antenna 6dbi WIFI omni antenna covering 360 degree
AMEISON manufacturer 2.4G outdoor omni-directional fiberglass antenna 6dbi WIFI omni antenna covering 360 degree
AMEISON manufacturer 2.4G outdoor omni-directional fiberglass antenna 6dbi WIFI omni antenna covering 360 degree
AMEISON manufacturer 2.4G outdoor omni-directional fiberglass antenna 6dbi WIFI omni antenna covering 360 degree
AMEISON manufacturer 2.4G outdoor omni-directional fiberglass antenna 6dbi WIFI omni antenna covering 360 degree
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-2400-6
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Product name :
Omnidirectional Antenna
Frequency :
2400～2483 mhz
Gain :
6dBi
VSWR :
≤1.5
Impedance :
50Ω
Polarization :
Vertical
connector type :
N Female
Dimensions :
Φ18*450
color :
Gray
Material :
Fiberglass
Mounting way :
Pole-holding
Description

AMEISON manufacturer 2.4G outdoor omni-directional fiberglass antenna 6dbi WIFI omni antenna covering 360 degree

Feature :
Exquisite appearance
Good impact resistance,waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain,low standing wave,strong anti-interference ability


Application :
2.4G/WIFI/WLAN system
Point-to-multipoint system

AMEISON manufacturer 2.4G outdoor omni-directional fiberglass antenna 6dbi WIFI omni antenna covering 360 degree

2400-2483MHz Fiberglass Omnidirectional Antenna

AMXF-2400-6

Electrical Specifications
Frequency range(MHz) 2400～2483
Bandwidth (MHz) 83
Gain (dBi) 6
Half-power beam width(°) H:360 V:22
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N Female or Requested
Mechanical Specifications
Dimensions (mm) Φ18*450
Antenna weight(kg) 0.3
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color Gray
Mounting way Pole-holding
Mounting hardware(mm) ￠35-￠50

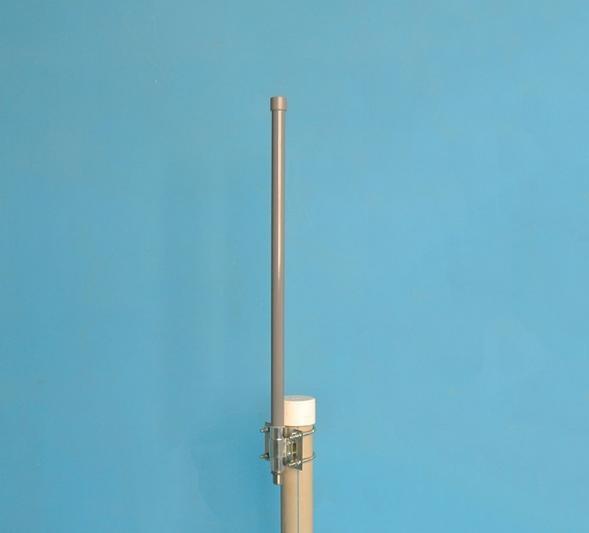

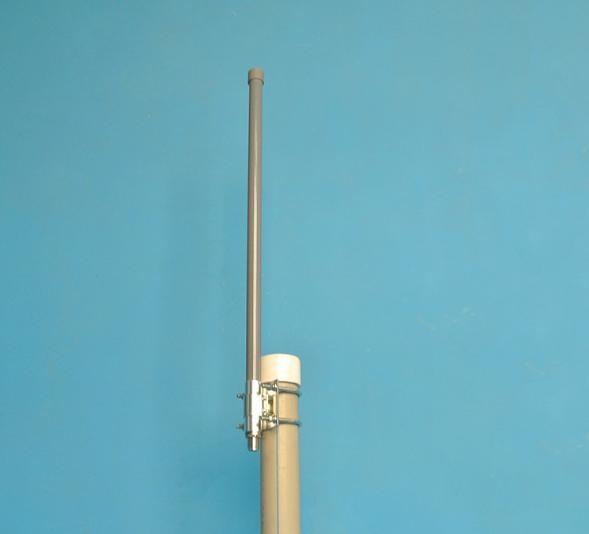

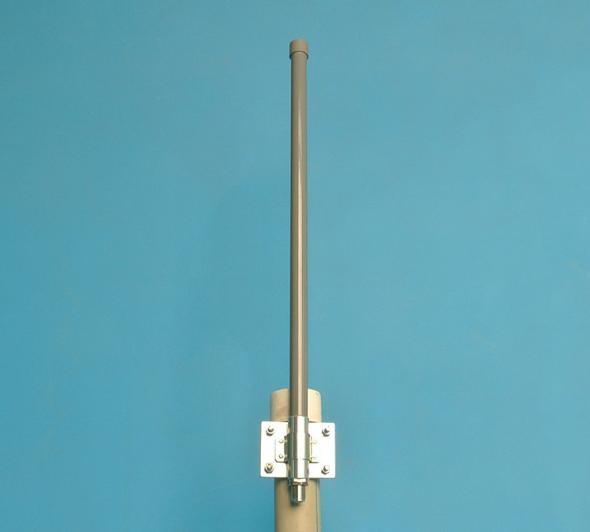

Install as the picture below

AMEISON manufacturer 2.4G outdoor omni-directional fiberglass antenna 6dbi WIFI omni antenna covering 360 degree
