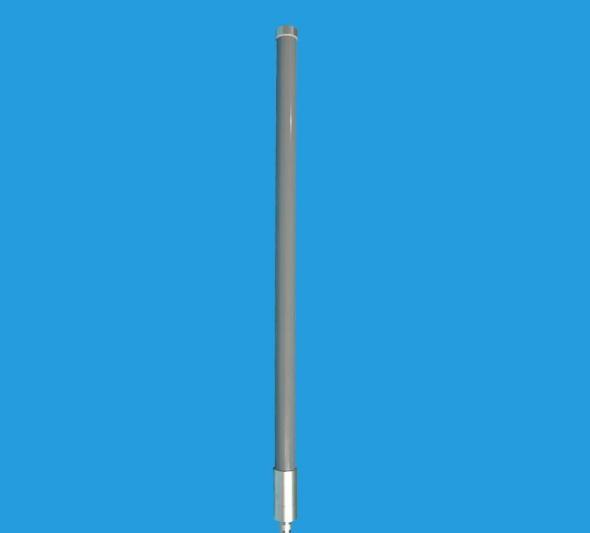

AMEISON manufacturer 470-510MHz Fiberglass Omni-directional Antenna 5db Internet of Things LORA outdoor omni antenna
AMEISON manufacturer 470-510MHz Fiberglass Omni-directional Antenna 5db Internet of Things LORA outdoor omni antenna
AMEISON manufacturer 470-510MHz Fiberglass Omni-directional Antenna 5db Internet of Things LORA outdoor omni antenna
AMEISON manufacturer 470-510MHz Fiberglass Omni-directional Antenna 5db Internet of Things LORA outdoor omni antenna
AMEISON manufacturer 470-510MHz Fiberglass Omni-directional Antenna 5db Internet of Things LORA outdoor omni antenna
AMEISON manufacturer 470-510MHz Fiberglass Omni-directional Antenna 5db Internet of Things LORA outdoor omni antenna
AMEISON manufacturer 470-510MHz Fiberglass Omni-directional Antenna 5db Internet of Things LORA outdoor omni antenna
AMEISON manufacturer 470-510MHz Fiberglass Omni-directional Antenna 5db Internet of Things LORA outdoor omni antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-4751-5
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Product name :
Omnidirectional Antenna
Frequency :
470-510 mhz
Gain :
5dBi
VSWR :
≤1.7
Impedance :
50Ω
Polarization :
Vertical
connector type :
N Female
Dimensions :
Φ32*1295
color :
Gray
Material :
Fiberglass
Mounting way :
Pole-holding
Description

AMEISON manufacturer 470-510MHz Fiberglass Omni-directional Antenna 5db Internet of Things LORA outdoor omni antenna

Feature :
Exquisite appearance
Good impact resistance,waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain,low standing wave,strong anti-interference ability


Application :
470/480/490/500/510MHz system
Point-to-multipoint system

AMEISON manufacturer 470-510MHz Fiberglass Omni-directional Antenna 5db Internet of Things LORA outdoor omni antenna

470-510MHz Fiberglass Omnidirectional Antenna

AMXF-4751-5

Electrical Specifications
Frequency range(MHz) 470-510
Gain(dBi) 5
Half-power beam width(°) H:360 V:30
VSWR ≤1.7
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N female or request
Mechanical Specifications
Dimensions (mm) Φ32*1295
Antenna weight(kg) 0.6
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color Gray
Mounting way Pole-holding
Mounting hardware(mm) ￠35-￠50

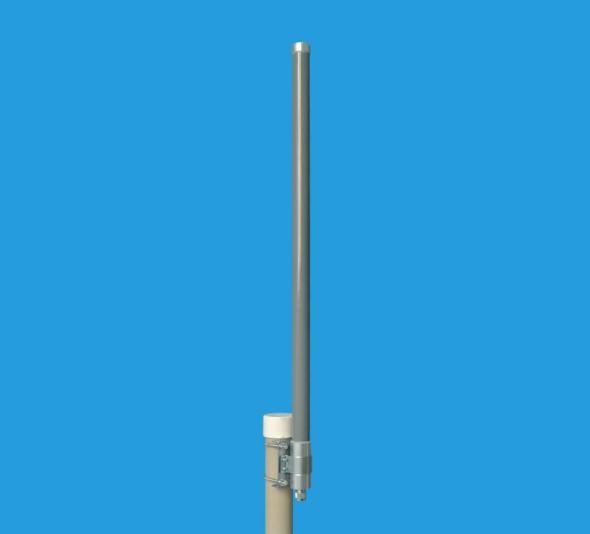

Install as the picture below

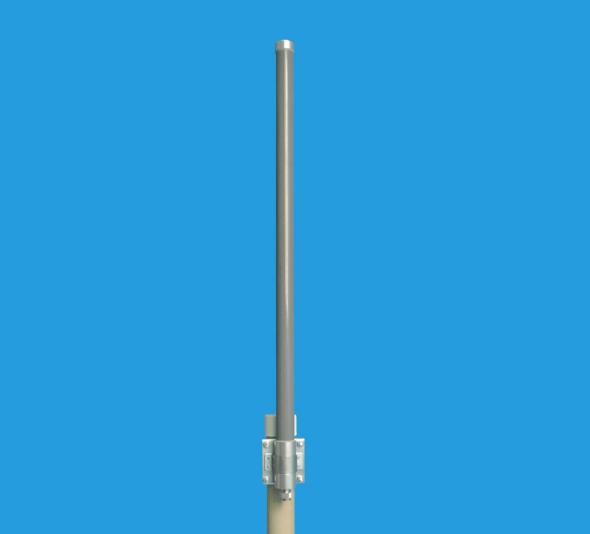

AMEISON manufacturer 470-510MHz Fiberglass Omni-directional Antenna 5db Internet of Things LORA outdoor omni antenna
