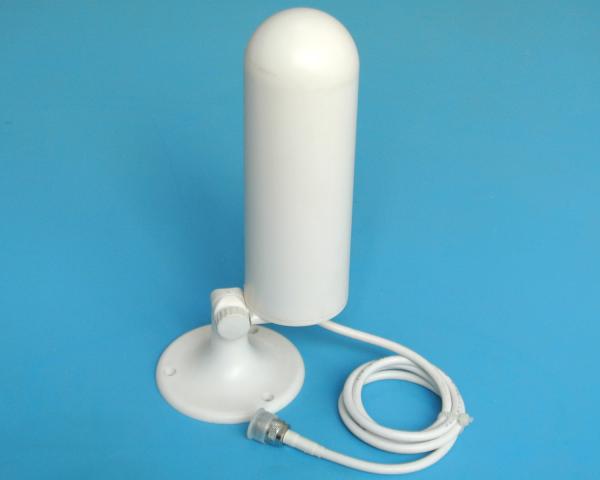

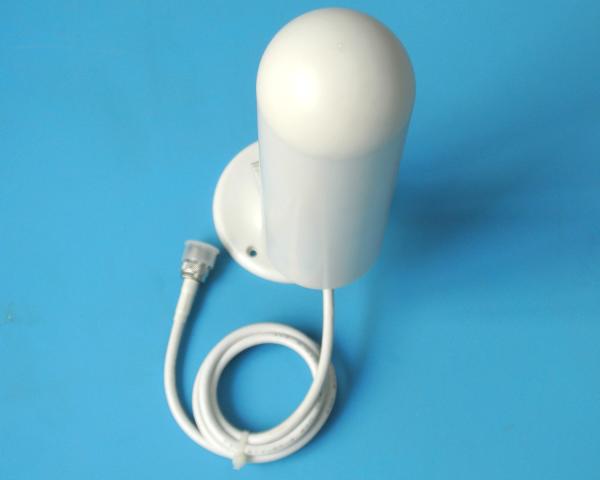

AMEISON manufacturer Omnidirectional Antenna 4dbi N female 806-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system
AMEISON manufacturer Omnidirectional Antenna 4dbi N female 806-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system
AMEISON manufacturer Omnidirectional Antenna 4dbi N female 806-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system
AMEISON manufacturer Omnidirectional Antenna 4dbi N female 806-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system
AMEISON manufacturer Omnidirectional Antenna 4dbi N female 806-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system
AMEISON manufacturer Omnidirectional Antenna 4dbi N female 806-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system
AMEISON manufacturer Omnidirectional Antenna 4dbi N female 806-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system
AMEISON manufacturer Omnidirectional Antenna 4dbi N female 806-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-8027-4
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Product name :
Omnidirectional Antenna
Frequency :
806～960/1710～2700mhz
Gain :
4dBi
VSWR :
≤1.5
Impedance :
50Ω
Polarization :
Vertical
connector type :
N female
Dimensions :
Φ60*180
color :
White
Description

AMEISON manufacturer Omnidirectional Antenna 4dbi N female 806-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system

Feature:

Exquisite appearance

Optimized dimension

Full day working

Wide frequency band, low standing wave, strong anti-interference ability

Application:

GSM/ CDMA/ PCS/ 2G/3G/ WLAN/ 4G/ LTE system

Point-to-multipoint system

AMEISON manufacturer Omnidirectional Antenna 4dbi N female 806-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system

AMXF-8027-4

Electrical Specifications
Frequency range(MHz) 806-960 / 1710-2700
Bandwidth(MHz) 154 / 790
Gain(dBi) 3 / 4
Half-power beam width(°) H:360 V:55 / 45
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type SMA Male or Requested
Mechanical Specifications
Dimensions (mm) Φ60*180
Cable length (cm) 30
Antenna weight(kg) 0.4
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome material ABS
Radome color White or customized
Mounting way Pole-holding
Mounting hardware(mm) ￠35-￠50
