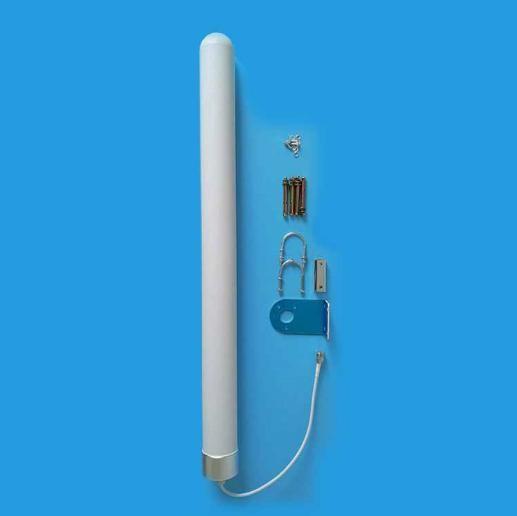

AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 700-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system
AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 700-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system
AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 700-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system
AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 700-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system
AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 700-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system
AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 700-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system
AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 700-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system
AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 700-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-7027-8
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Product name :
Omnidirectional Antenna
Frequency :
698～960/1710～2700mhz
Gain :
8dBi
VSWR :
≤1.5
Impedance :
50Ω
Polarization :
Vertical
connector type :
N female
Dimensions :
Φ60*750
color :
White
Description

AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 700-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system

Feature :
●Exquisite appearance
●Good impact resistance,
waterproofing and anticorrosion ability
●Full day working
●Optimized dimension
●low standing wave,strong anti-interference ability
Application :
●CDMA/GSM/PCS/3G/4G/LTE/WLAN system
●Point-to-multipoint system

AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 700-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system

AMXF-7027-8

Electrical Specifications
Frequency range(MHz) 698-960 / 1710-2700
Bandwidth(MHz) 262 / 990
Gain(dBi) 6/8
Half-power beam width(°) H:360 V:25
VSWR ≤2.0
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Cable length (cm) 30
Input connector type N female
Mechanical Specifications
Dimensions (mm) Φ60*750
Antenna weight(kg) 0.6
Cable length (cm) 30
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color White
Mounting way Pole-holding
Mounting hardware(mm) ￠35-￠50
