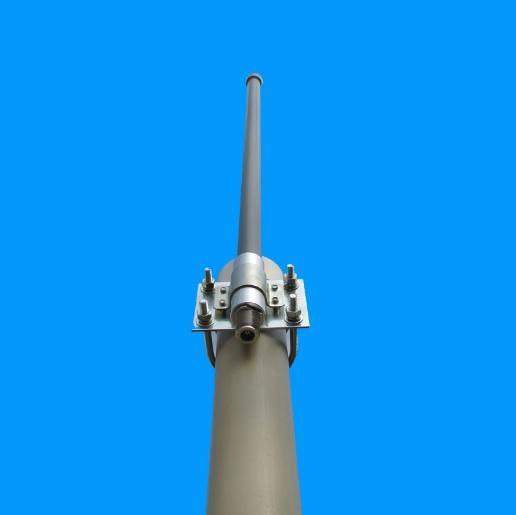

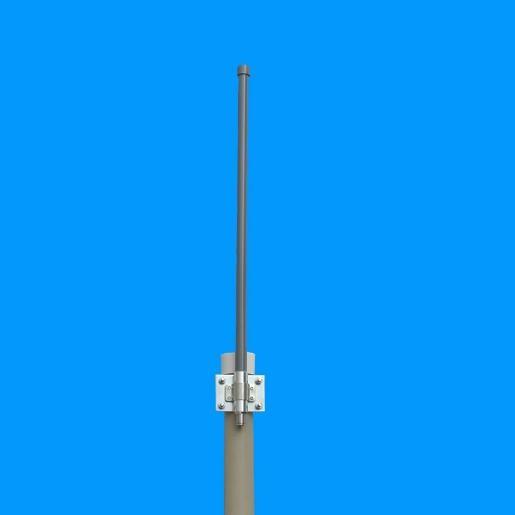

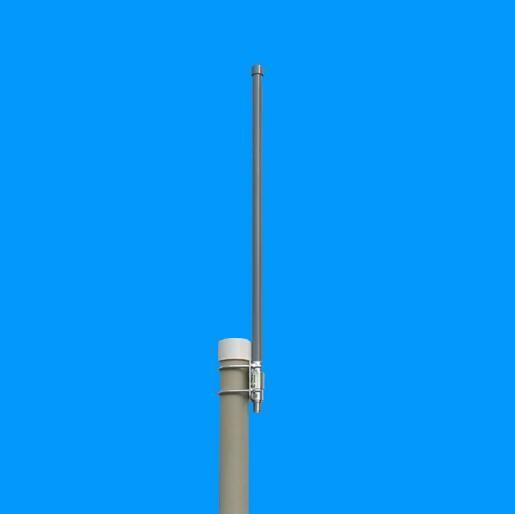

AMEISON manufacturer Fiberglass Omnidirectional Antenna 6dbi N female connector 824-960mhz for GSM CDMA system
AMEISON manufacturer Fiberglass Omnidirectional Antenna 6dbi N female connector 824-960mhz for GSM CDMA system
AMEISON manufacturer Fiberglass Omnidirectional Antenna 6dbi N female connector 824-960mhz for GSM CDMA system
AMEISON manufacturer Fiberglass Omnidirectional Antenna 6dbi N female connector 824-960mhz for GSM CDMA system
AMEISON manufacturer Fiberglass Omnidirectional Antenna 6dbi N female connector 824-960mhz for GSM CDMA system
AMEISON manufacturer Fiberglass Omnidirectional Antenna 6dbi N female connector 824-960mhz for GSM CDMA system
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-8090-6
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Product name :
Omnidirectional Antenna
Frequency :
824-960mhz
Gain :
6dBi
VSWR :
≤1.5
Impedance :
50Ω
Polarization :
Vertical
connector type :
N female
Dimensions :
Φ20*900
color :
gray
Description

AMEISON manufacturer Fiberglass Omnidirectional Antenna 6dbi N female connector 824-960mhz for GSM CDMA system

Feature:

Exquisite appearance

Good impact resistance,waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain,low standing wave,strong anti-interference ability

Application:

GSM CDMA system

868mhz frequency system

Point-to-multipoint system

AMEISON manufacturer Fiberglass Omnidirectional Antenna 6dbi N female connector 824-960mhz for GSM CDMA system

AMXF-8090-6

Electrical Specifications
Frequency range(MHz) 824-960
Bandwidth(MHz) 136
Gain(dBi) 6
Half-power beam width(°) H:360 V:25
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N Female or Requested
Mechanical Specifications
Dimensions (mm) Φ20*900
Antenna weight(kg) 0.4
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color Gray
Mounting way Pole-holding
Mounting hardware(mm) ￠35-￠50
