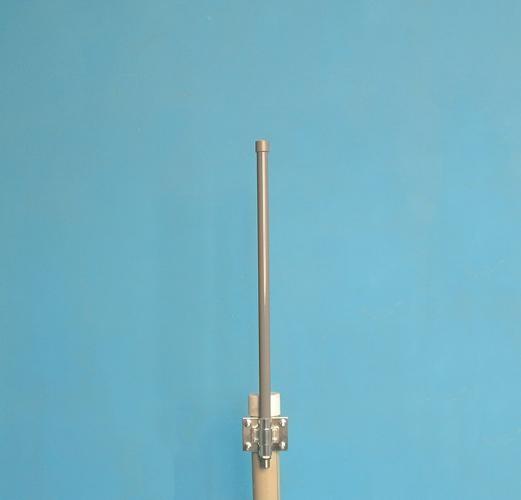

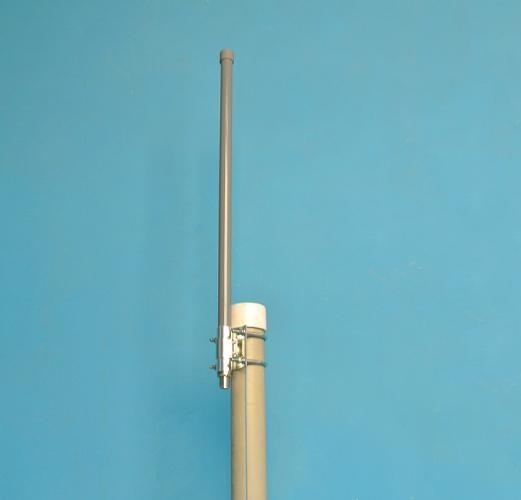

AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi N female Gray color for 1710-1880mhz system
AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi N female Gray color for 1710-1880mhz system
AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi N female Gray color for 1710-1880mhz system
AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi N female Gray color for 1710-1880mhz system
AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi N female Gray color for 1710-1880mhz system
AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi N female Gray color for 1710-1880mhz system
AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi N female Gray color for 1710-1880mhz system
AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi N female Gray color for 1710-1880mhz system
AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi N female Gray color for 1710-1880mhz system
AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi N female Gray color for 1710-1880mhz system
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-1800-8
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Product name :
Omnidirectional Antenna
Frequency :
1710～1800mhz
Gain :
8dBi
VSWR :
≤1.5
Impedance :
50Ω
Polarization :
Vertical
connector type :
N Female
Dimensions :
Φ20*680
color :
gray
Description

AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi N female Gray color for 1710-1880mhz system

Feature:

Exquisite appearance

Good impact resistance,waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain,low standing wave,strong anti-interference ability

Application:

1710～1800MHz system

Point-to-multipoint system

AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi N female Gray color for 1710-1880mhz system

AMXF-1800-8

Electrical Specifications
Frequency range(MHz) 1710-1880
Bandwidth(MHz) 170
Gain(dBi) 8
Half-power beam width(°) H:360 V:13
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N Female or Requested
Mechanical Specifications
Dimensions (mm) Φ20*680
Antenna weight(kg) 0.35
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color Gray
Mounting way Pole-holding
Mounting hardware(mm) ￠35-￠50
