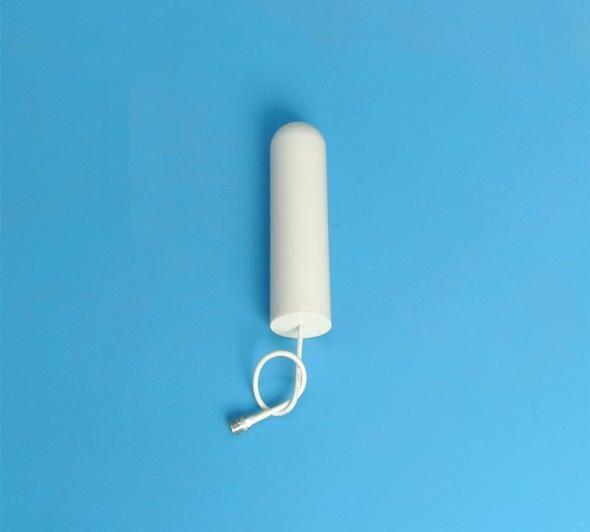

AMEISON Antenna Manufacturer wireless omnidirectional antenna 5dbi omnidirectional 4g lte 2600mhz wireless antenna
AMEISON Antenna Manufacturer wireless omnidirectional antenna 5dbi omnidirectional 4g lte 2600mhz wireless antenna
AMEISON Antenna Manufacturer wireless omnidirectional antenna 5dbi omnidirectional 4g lte 2600mhz wireless antenna
AMEISON Antenna Manufacturer wireless omnidirectional antenna 5dbi omnidirectional 4g lte 2600mhz wireless antenna
AMEISON Antenna Manufacturer wireless omnidirectional antenna 5dbi omnidirectional 4g lte 2600mhz wireless antenna
AMEISON Antenna Manufacturer wireless omnidirectional antenna 5dbi omnidirectional 4g lte 2600mhz wireless antenna
AMEISON Antenna Manufacturer wireless omnidirectional antenna 5dbi omnidirectional 4g lte 2600mhz wireless antenna
AMEISON Antenna Manufacturer wireless omnidirectional antenna 5dbi omnidirectional 4g lte 2600mhz wireless antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-8025-5
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Product name :
Omnidirectional Antenna
Frequency :
800-2500 mhz
Gain :
5dBi
VSWR :
≤1.5
Impedance :
50Ω
Polarization :
Vertical
connector type :
N Female
Dimensions :
Φ60*230
color :
White
Description

AMEISON Antenna Manufacturer wireless omnidirectional antenna 5dbi omnidirectional 4g lte 2600mhz wireless antenna

Feature :
Exquisite appearance
Good impact resistance,waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain,low standing wave,strong anti-interference ability


Application :
CDMA/GSM/PCS/2G/3G/4G/LTE/WIFI/WLAN system
Point-to-multipoint system

AMEISON Antenna Manufacturer wireless omnidirectional antenna 5dbi omnidirectional 4g lte 2600mhz wireless antenna

698-2700MHz Omnidirectional Antenna

AMXF-8025-5

Electrical Specifications
Frequency range(MHz) 806-960 / 1710-2500
Bandwidth(MHz) 154 / 890
Gain(dBi) 3 / 5
Half-power beam width(°) H:360 V:55
VSWR ≤2.0
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Cable length (cm) 30
Input connector type N female or Requested
Mechanical Specifications
Dimensions (mm) Φ60*230
Antenna weight(kg) 0.6
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color White
Mounting way Pole-holding
Mounting hardware(mm) ￠35-￠50

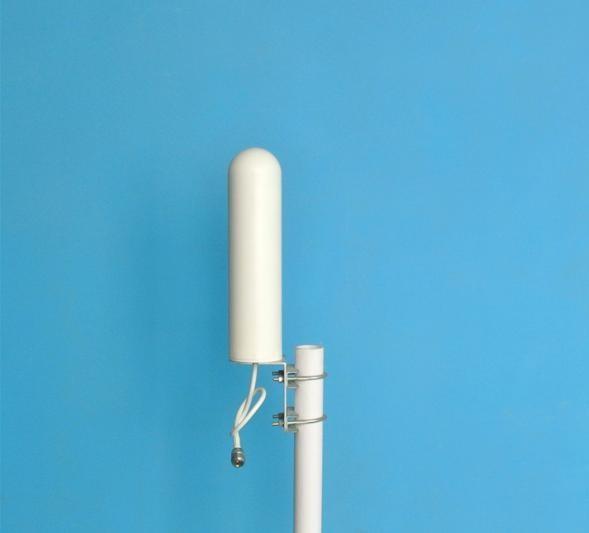

Install as the picture below

AMEISON Antenna Manufacturer wireless omnidirectional antenna 5dbi omnidirectional 4g lte 2600mhz wireless antenna
