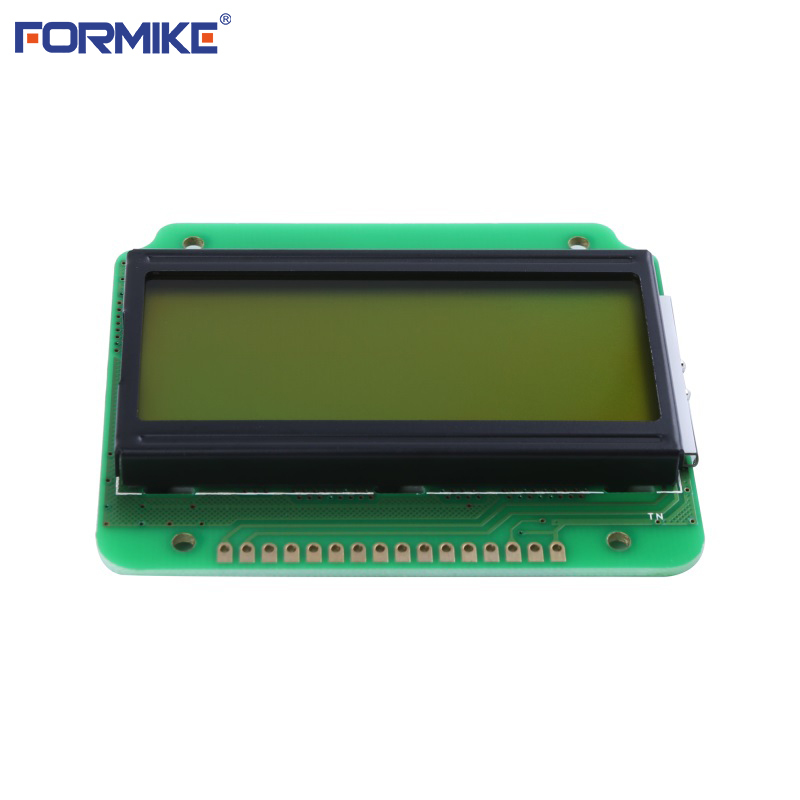

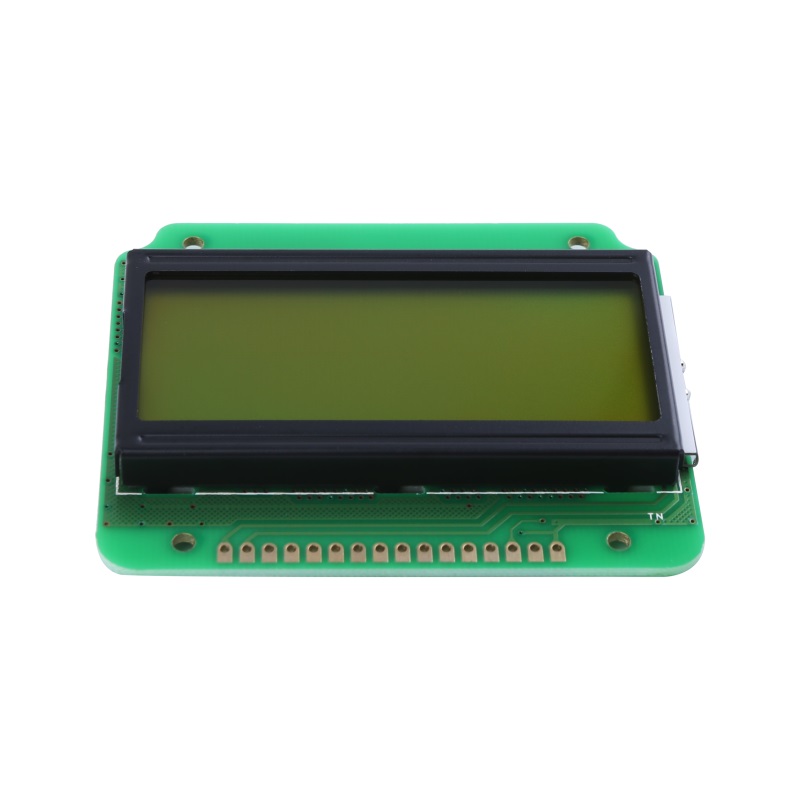

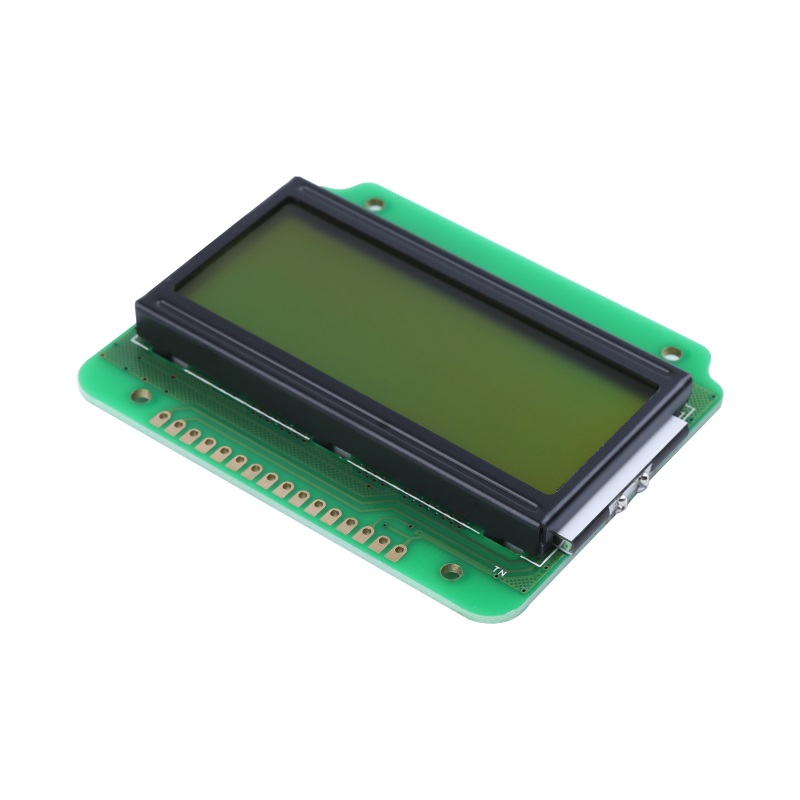

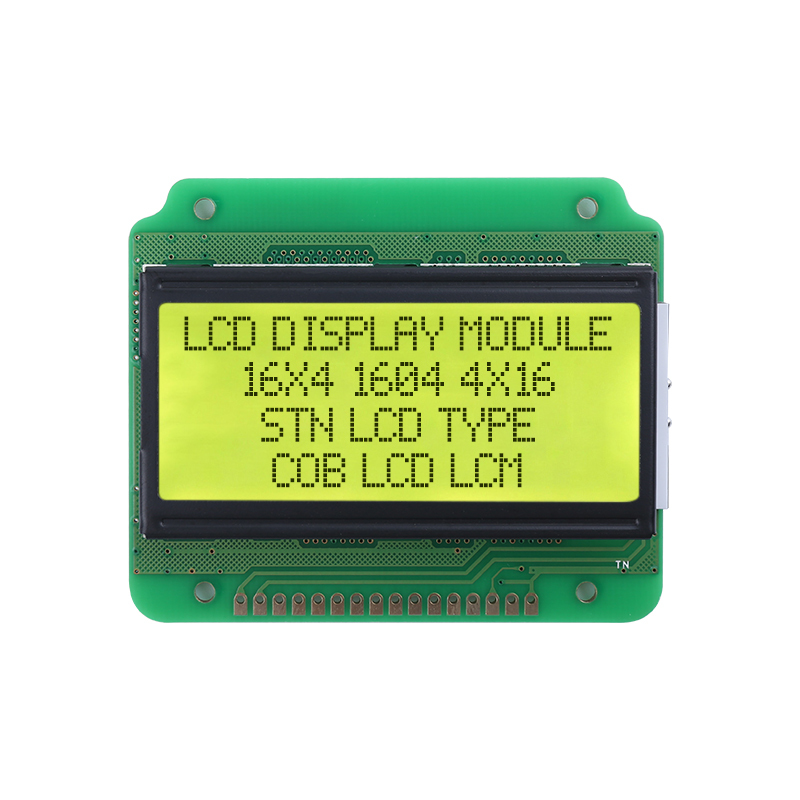

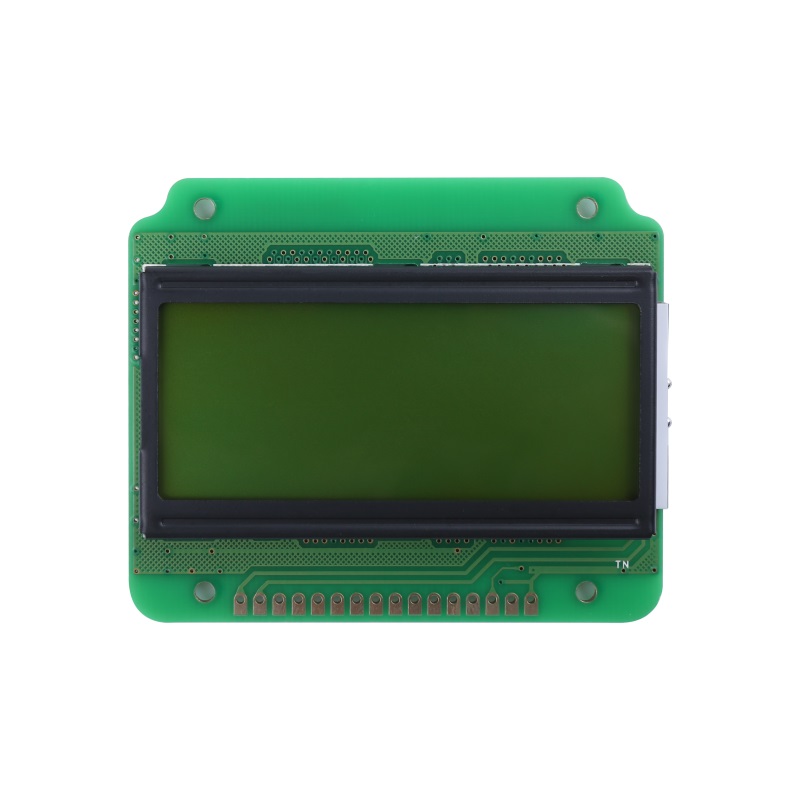

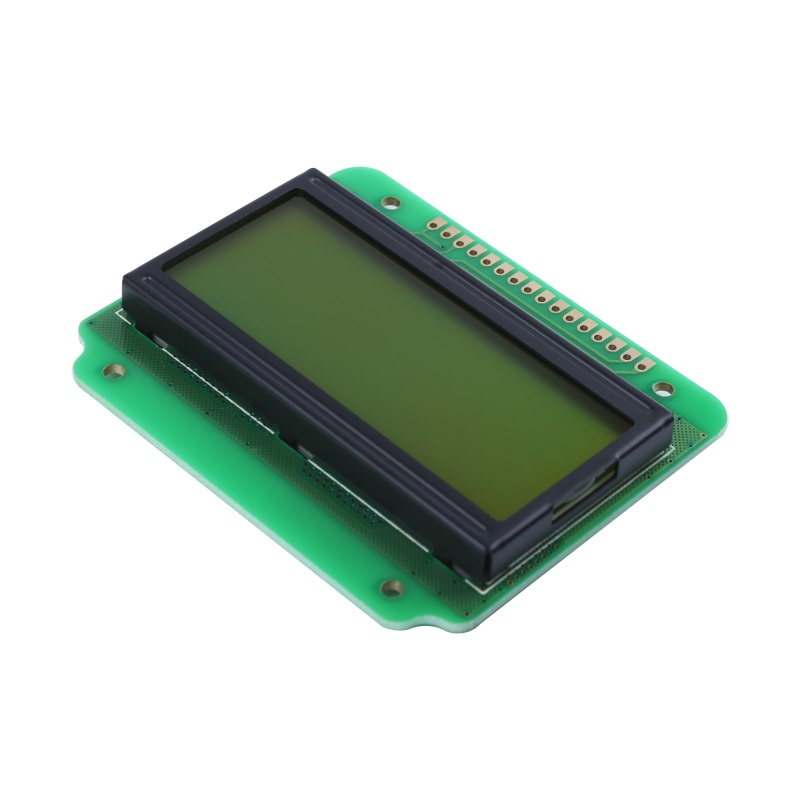

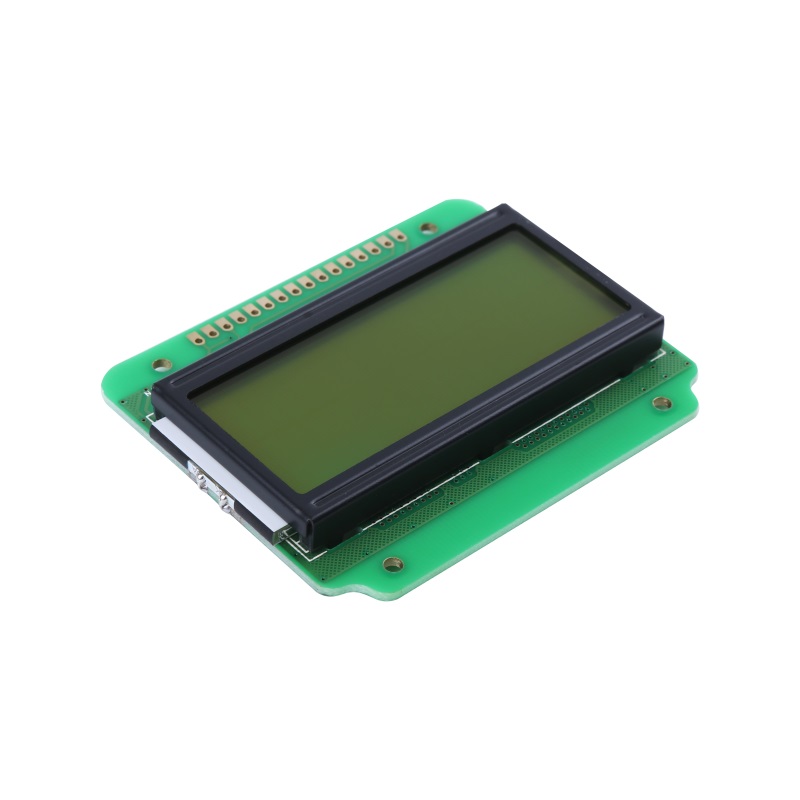

3.3 V 16x4 Character LCD Display Module COB With STN Mode
3.3 V 16x4 Character LCD Display Module COB With STN Mode
3.3 V 16x4 Character LCD Display Module COB With STN Mode
3.3 V 16x4 Character LCD Display Module COB With STN Mode
3.3 V 16x4 Character LCD Display Module COB With STN Mode
3.3 V 16x4 Character LCD Display Module COB With STN Mode
3.3 V 16x4 Character LCD Display Module COB With STN Mode
3.3 V 16x4 Character LCD Display Module COB With STN Mode
3.3 V 16x4 Character LCD Display Module COB With STN Mode
3.3 V 16x4 Character LCD Display Module COB With STN Mode
3.3 V 16x4 Character LCD Display Module COB With STN Mode
3.3 V 16x4 Character LCD Display Module COB With STN Mode
3.3 V 16x4 Character LCD Display Module COB With STN Mode
3.3 V 16x4 Character LCD Display Module COB With STN Mode
Specifications
Place of Origin :
China
Display Mode :
STN
Controller :
ST7066U or AIP31066
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Supply Ability :
5000000000 pieces/year
Product Name :
16x4 Character LCD Display COB LCD Module With STN Mode
Dimensions :
87.0mm * 66.0mm * 12.5mm
Operating Temperature :
-20°C to 70°C
Display Type :
Character LCD Display Module
Backlight Color :
Usually Y-G or Blue or Gray
Brand Name :
Formike
Viewing Angle :
6 O'clock
Display format :
16character*4 line
Operating Voltage :
3.3V / 5V
Payment Terms :
T/T,L/C,Credit card,Cash
MOQ :
1 piece
Backlight :
LED
Model Number :
WC1604B2
Packaging Details :
Tray + Inner Box + Carton
Interface :

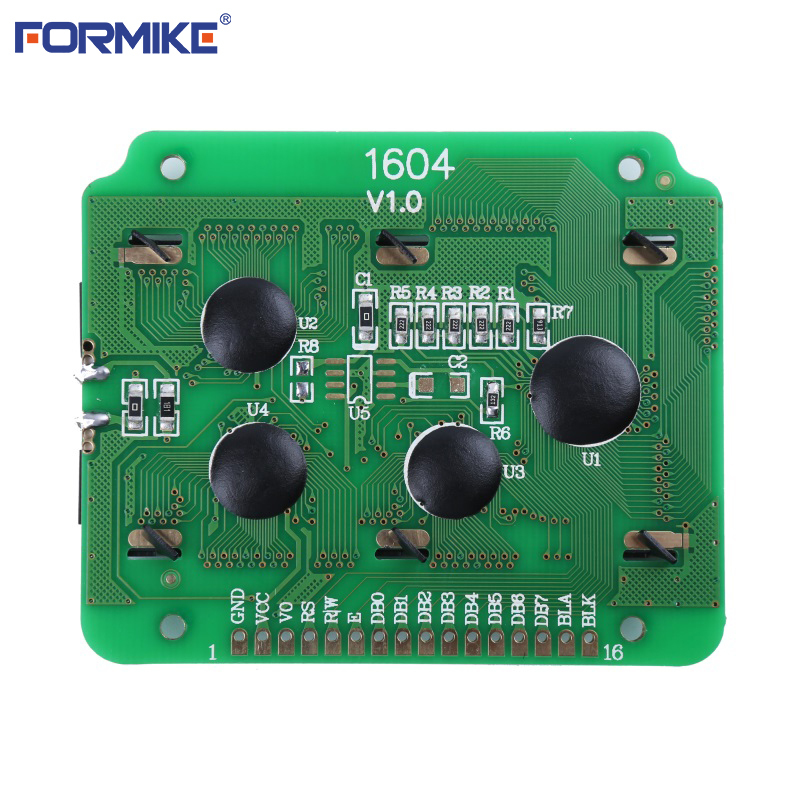

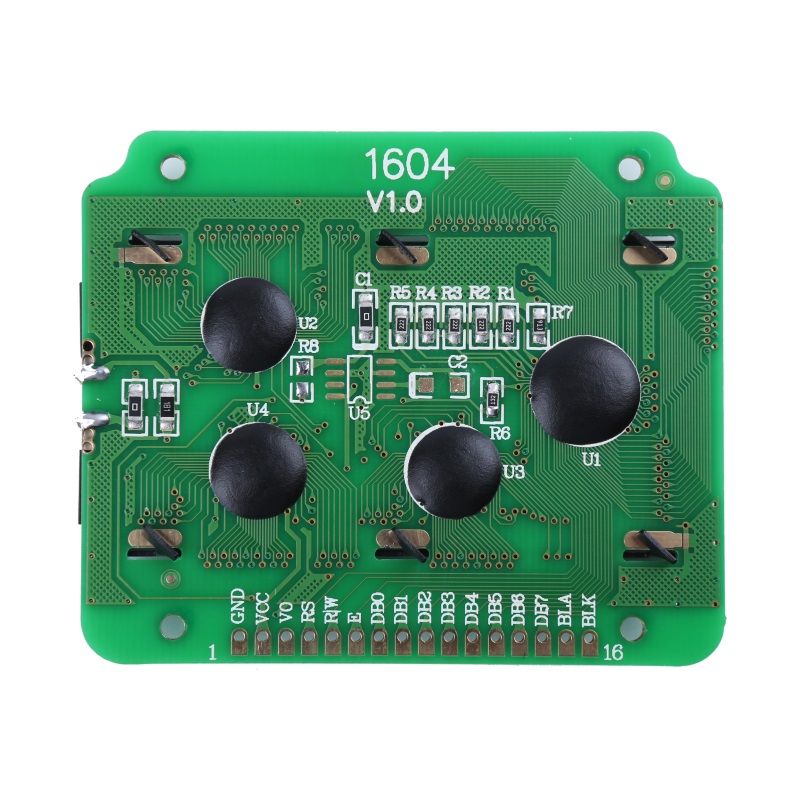

16 Pin, 4-bit or 8-bit 6800 MPU
Description

16x4 Character LCD Display COB LCD Module With STN Mode

3.3 V 16x4 Character LCD Display Module COB With STN Mode

Product Specification
LCD Name 16x4 Character LCD Display COB LCD Module With STN Mode
Display Format 16character*4 line
Module Size 70.0mm×57.8mm×10.5mm
View Area 61.8mm×25.2mm
Character Size 2.95mm×4.75mm
Character Pitch 3.55mm×5.35mm
IC AIP31066 or Eqv (Defualt English / Japan Font)
Interface 16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method 1/16 Duty, 1/5 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WC1604B2SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WC1604B2SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 3.3V
3 WC1604B2SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
4 WC1604B2SGW6B-A2 STN Negative Blue White Color White Color Blue Color 3.3V
5 WC1604B2SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 5V
6 WC1604B2SKW6B-A2 STN GREY Positive White Color Black Color Grey Color 3.3V
