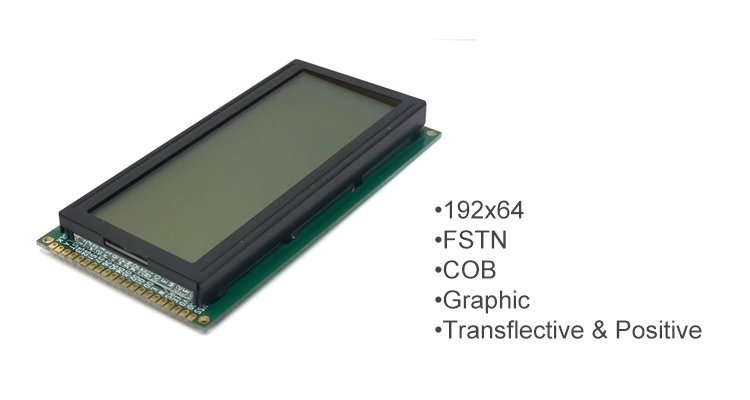

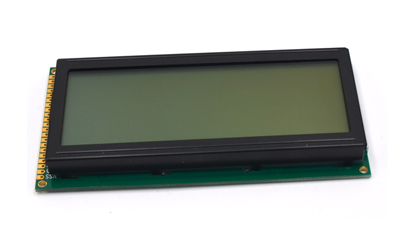

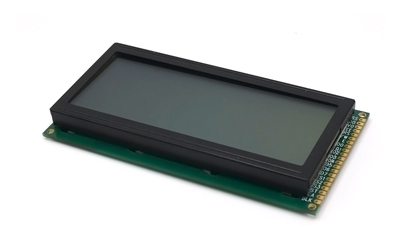

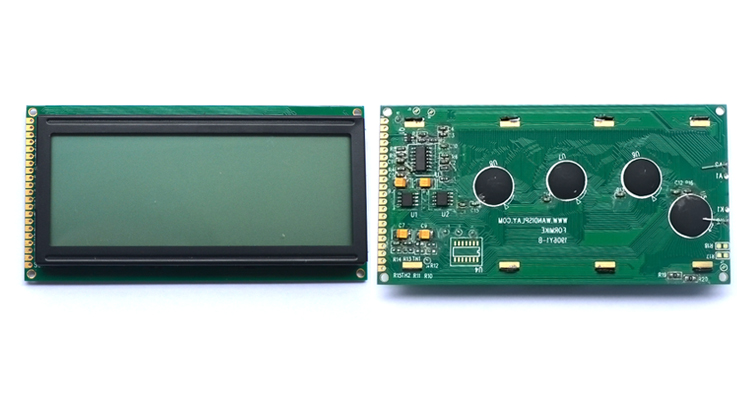

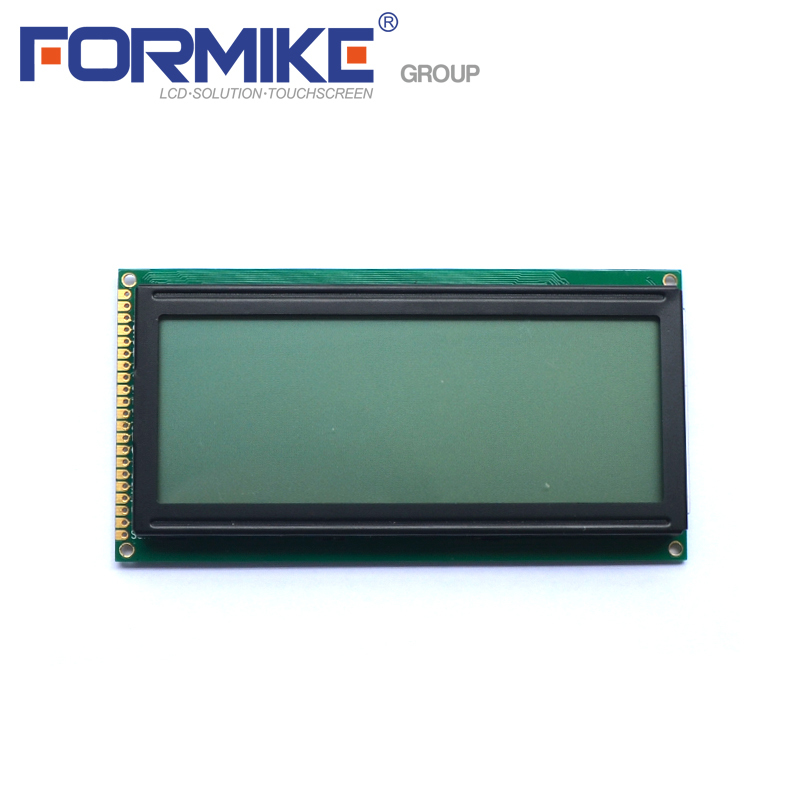

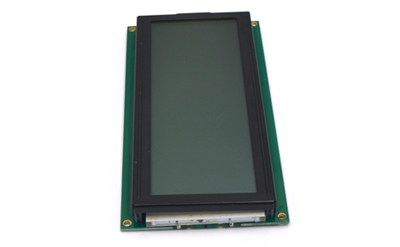

Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module
Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module
Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module
Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module
Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module
Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module
Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module
Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module
Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module
Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module
Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module
Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module
Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module
Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module
Specifications
Operating Voltage :
5V
Display Format :
192x64 Dots
Supply Ability :
5000000000 pieces/year
Product Name :
19264 LCD 192x64 Graphic LCD Controller COB FSTN Display Module
LCD Type :
Transflective Positive
Place of Origin :
China
Controller :
SBN0064
Interface :
21 Pin, Parallel
Model Number :
WG1906Y1FSW7B-B
Backlight Color :
Black display dot on white background with white backlight
Operating Temperature :
-20°C to 70°C
Brand Name :
Formike
Display Type :
Graphic FSTN LCD Screen
Payment Terms :
T/T,L/C,Credit card,Cash
Backlight :
LED
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Viewing Angle :
12 O'clock
Display Mode :
FSTN
Packaging Details :
Tray + Inner Box + Carton
MOQ :
1 piece
Dimensions :
120.2mm * 62.0mm * 13.5mm
Description

19264 LCD 192x64 Graphic LCD Controller COB FSTN Display Module

LCD Name 19264 LCD 192x64 Graphic LCD Controller COB FSTN Display Module

Display Format

192 X 64 Dots

Display Mode

FSTN, Positive, Transflective

LCD Color

Display dot :Black,

Background:White

Driver IC

NT7108C & NT7107C

Outline Dimension

120.2(W) x62.0(H) x13.5(T) mm

Viewing Area

104.00MIN(W) x39.00MIN(H) mm

Viewing Direction

12 O’clock

Interface Input Data

Parallel

Backlight

White

Driving Method

1/64 Duty, 1/9 Bias

Operating Temp.

 -20℃~+70℃

Storage Temp.

-30℃~+80℃

Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display ModuleMonochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module

Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module
Monochrome 19264 192x64 LCD Graphic Controller COB FSTN Display Module
