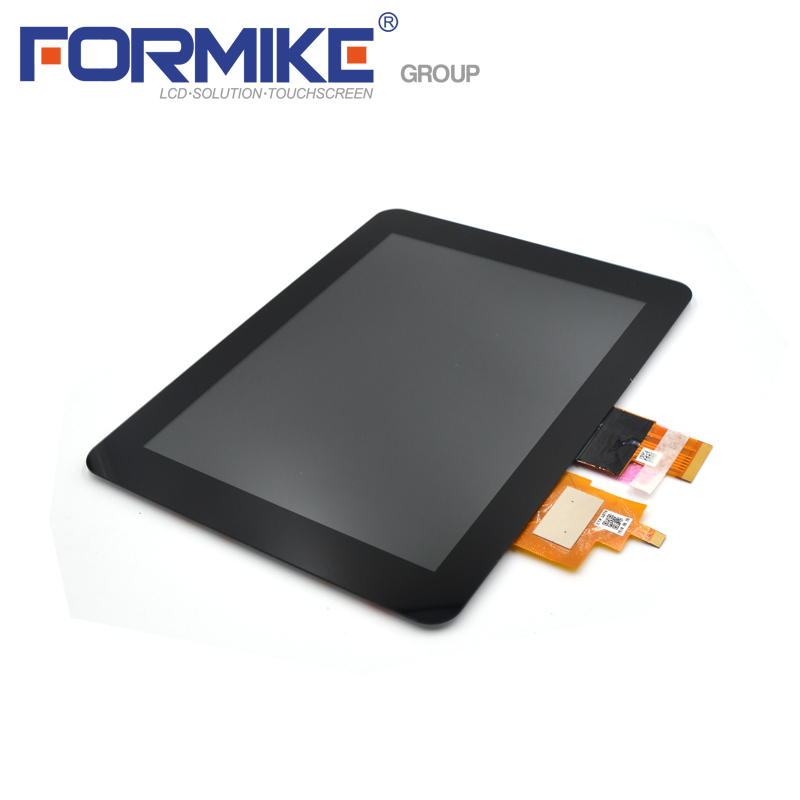

1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen
1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen
1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen
1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen
1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen
1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen
1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen
1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen
1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen
1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen
1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen
1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen
1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen
1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen
Specifications
Model Number :
KWH080KQ09-C01
Dimensions :
201.0mm x 152.3mm x 4.6mm
Product Name :
1024x768 LCD 8 Inch Touch Screen LVDS TFT Display
Interface :
40Pin, LVDS
Place of Origin :
China
Supply Voltage :
3.3V
Resolution :
1024*768
Display Type :
8 Inch TFT LCD Module
MOQ :
1 piece
Brand Name :
Formike
Operating Temperature :
-10°C to 50°C
Payment Terms :
T/T,L/C,Credit card,Cash
Touch Screen :
With with capacitive touch screen
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Display Size :
8"
Color :
Color
Supply Ability :
5000000000 pieces/year
Viewing Angle :
All
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Description

1024x768 LCD 8 Inch Touch Screen LVDS TFT Display

Product Description

1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen

1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen

LCD Name 1024x768 LCD 8 Inch Touch Screen LVDS TFT Display

LCD Size

8 inch

Resolution

1024(RGB)x768 Resolution

Surface Treatment

Anti- Glare type

 FPC Type 40 pin connector

Outline Dimension

 200X151.3X4.6mm

Active Area(HxV mm)

162.05X121.54mm

Viewing Direction

6 O’clock

Interface

 Lvds

Operating Temperature

-20~70℃

Blacklight

12 white LED

Storage Temperature

-30~80 ℃

Touch Panel

with Capacitive touch panel

1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen
