Specifications
Dimensions :
192.8mm x 116.9mm x 6.4mm
Technology :
Anti- Glare & A-si TFT & Wide Temperature
Payment Terms :
T/T,L/C,Credit card,Cash
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Product Name :
8 Inch LCD Display 800x480 WVGA TFT Colour Screen
Interface :
50 Pin, Digital RGB
Supply Voltage :
3.3V
Resolution :
800x480
Display Type :
8 Inch TFT LCD Panel
Brand Name :
Formike
MOQ :
1 piece
Touch Screen :
Without (Optional with touch screen)
Display Size :
8-inch
Color :
Color
Viewing Angle :
6 O'Clock
Model Number :
KWH080KQ08-F01
Supply Ability :
5000000000 pieces/year
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Place of Origin :
China
Operating Temperature :
-30°C to 80°C

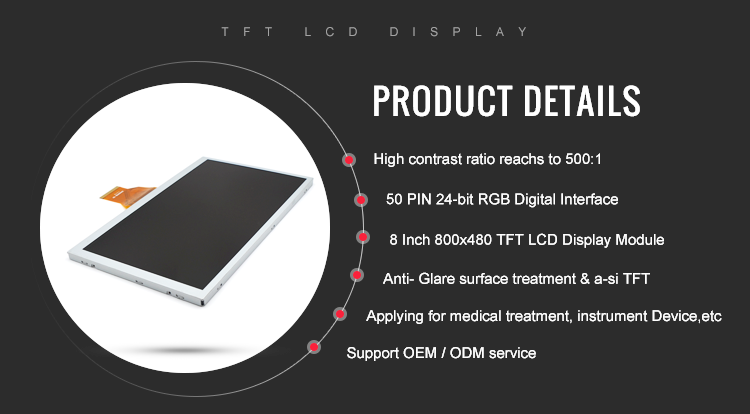

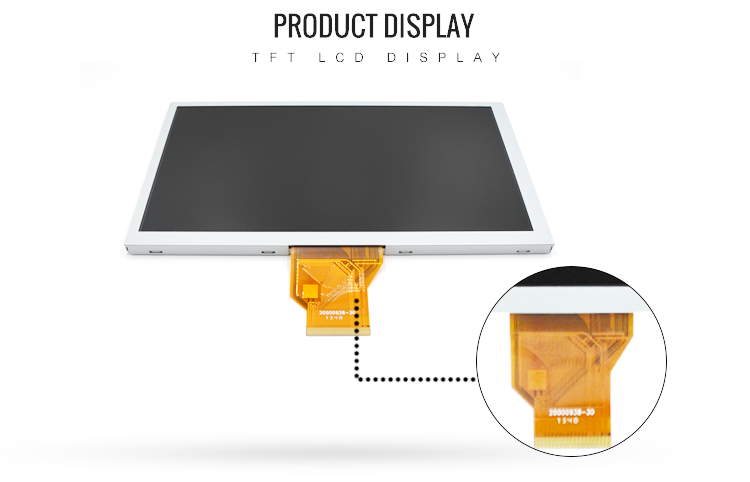

Description

8 Inch LCD Display 800x480 WVGA TFT Colour Screen

Formike 8 Inch LCD WVGA 800x480 TFT Colour Screen Display OEM

LCD Name 8 Inch LCD Display 800x480 WVGA TFT Colour Screen

LCD Size

8 inch LCD Module

Resolution

800(RGB)X480 Resolution

Resolution Configuration

RGB stripe

Contrast Ratio

500:1

Outline Dimension

192.80x 116.90 x 6.40mm

Active Area(HxV mm)

176.64x99.36mm

Viewing Direction

6 O'Clock

Interface

24-bit RGB, Digital, 50 Pin

Backlight

36 LED

Brightness

450cd/m2

Operating Temperature

-30℃~85℃

Backlight Supply Current/Voltage

240mA, 3.3V

Display element

a-si TFT

Surface Treatment

Anti- Glare type

* KWH080KQ08-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
