Specifications
Controller Ic :
ILI9341
Display Type :
Small TFT LCD Module
Dimensions :
42.72mm x 60.26mm x 2.50mm
Model Number :
KWH024Q12-F01
Operating Temperature :
-20°C to 70°C
Supply Voltage :
3.2V
Product Name :
240x320 ILI9341 Color TFT Screen 2.4 Inch TFT LCD Display
Brand Name :
Formike
Viewing Angle :
6 O'Clock
MOQ :
1 piece
Place of Origin :
China
Payment Terms :
T/T, L/C, Credit card, Cash
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Resolution :
240*320
Touch Screen :
Without (Optional With)
Color :
Color
Display Size :
2.4 inch
Supply Ability :
5000000000 pieces/year
Packaging Details :
Tray + Inner Box + Carton
Interface :
37Pin, 8/16 BIT MCU
Description

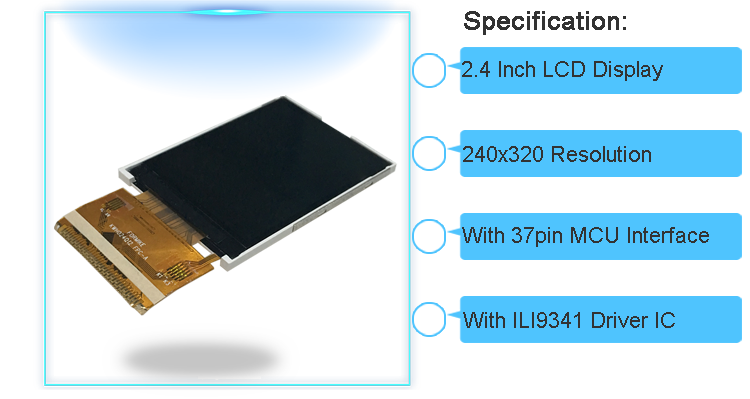

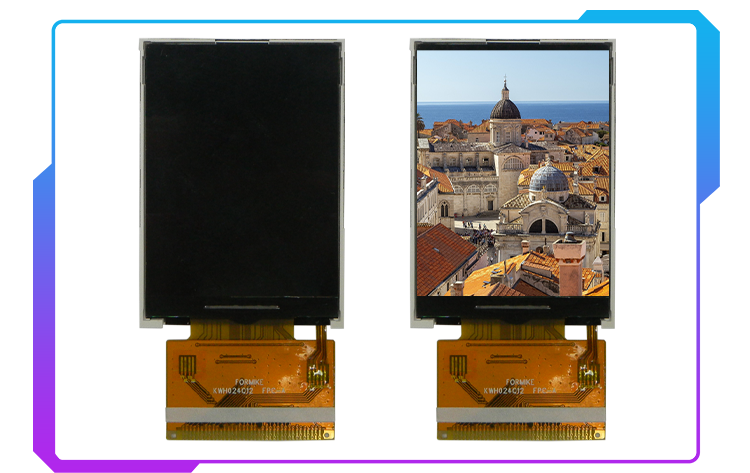

240x320 ILI9341 Color TFT Screen 2.4 Inch TFT LCD Display

ILI9341 Color TFT SPI 240x320 Screen 2.4 Inch LCD Display Customized

Product Name 240x320 ILI9341 Color TFT Screen 2.4 Inch TFT LCD Display
LCD Size 2.4 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 240x320
Outline Dimension (mm) 42.72x60.26x2.50
Active Area (mm) 36.72x48.96
Dot pitch (mm) 0.153x0.153
Viewing Direction 6 O'Clock
Interface 8 / 16 BIT MCU Interface, 37 Pin
Driver IC ILI9341
Brightness (Cd/m2) 280
Contrast Ratio 500:1
Backlight 4 White LED in Parallel

Backlight Supply

(Current/Voltage)

 60mA 3.2V
Touch Screen Without (Optional with)

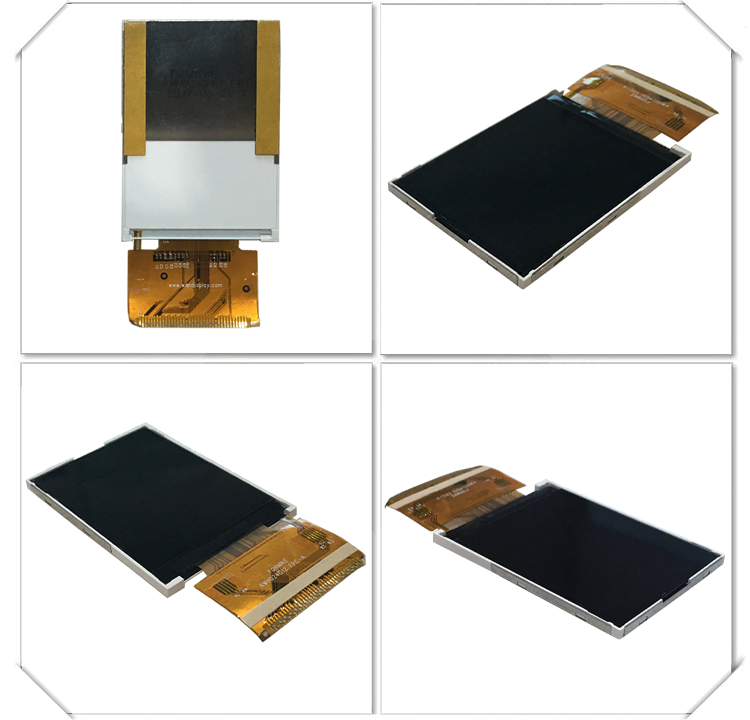

* KWH024Q12-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 240x320 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
