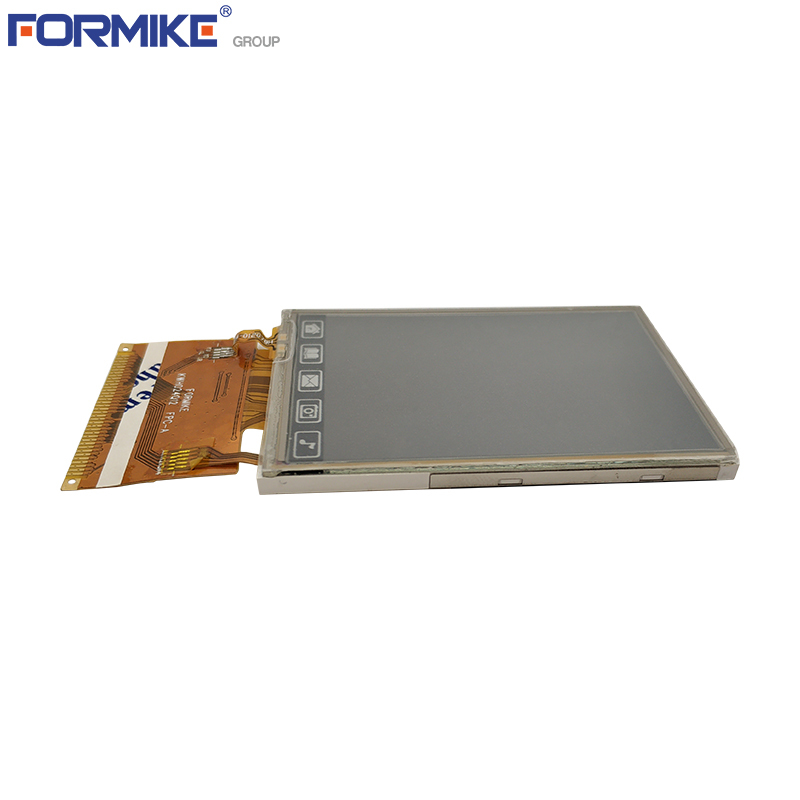

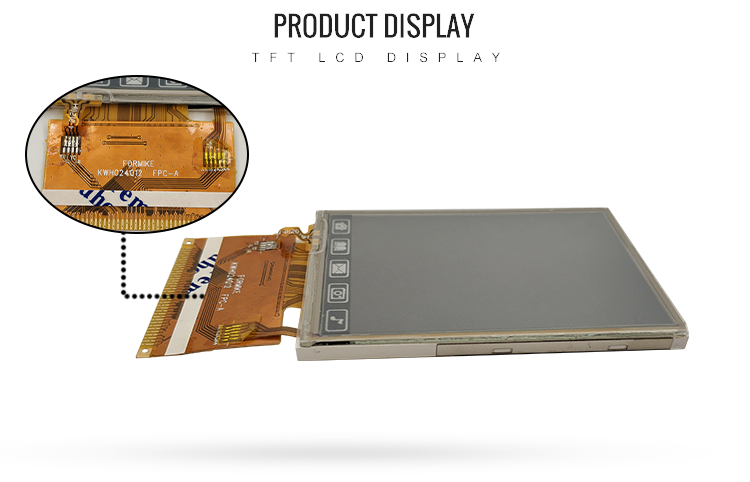

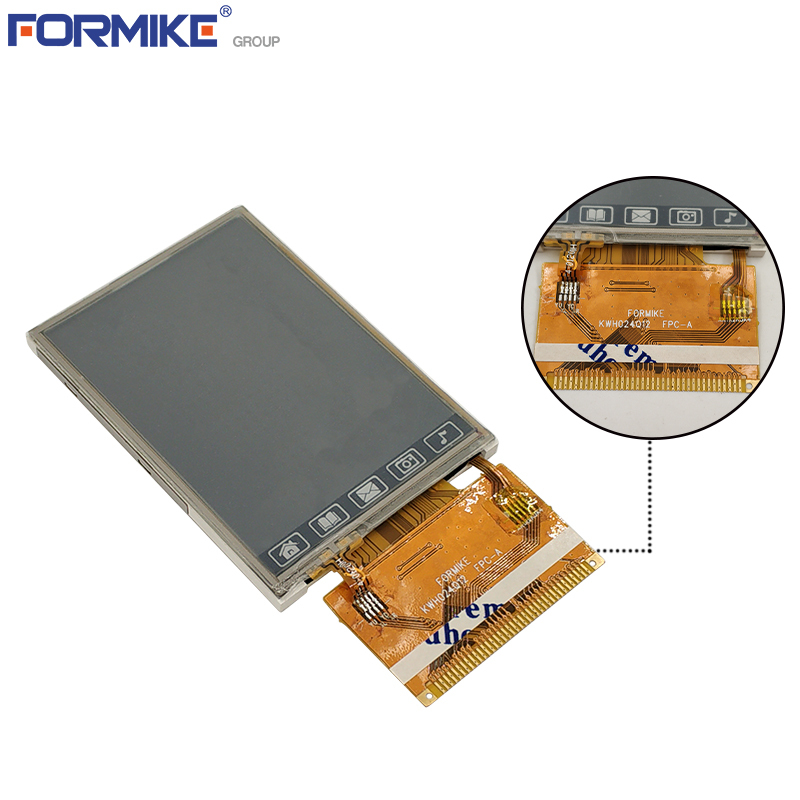

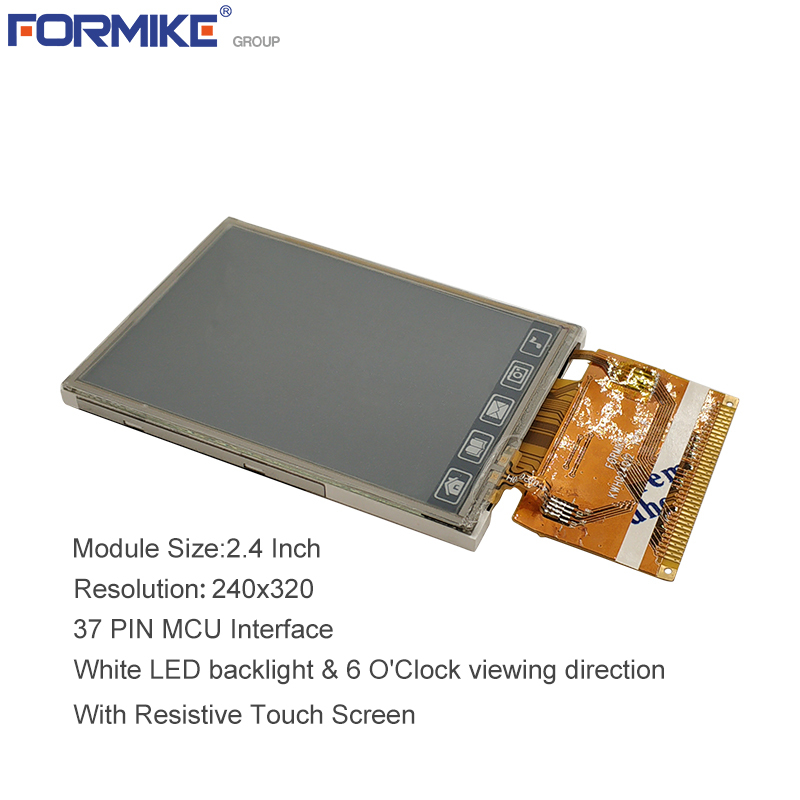

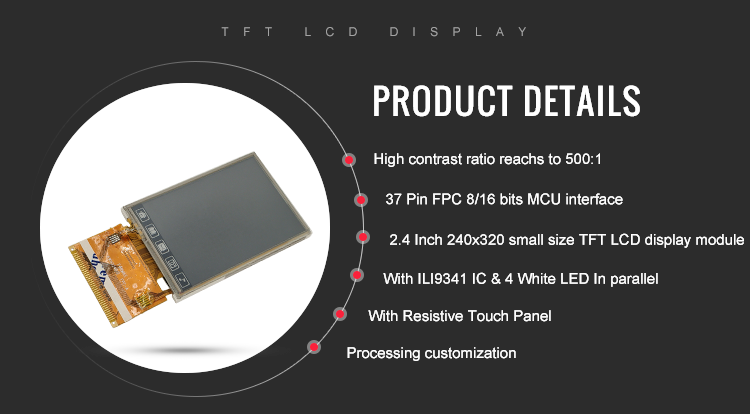

LCD TFT Display ILI9341 2.4 Inch Touch Screen With 37 Pin 16 BIT MCU Interface
LCD TFT Display ILI9341 2.4 Inch Touch Screen With 37 Pin 16 BIT MCU Interface
LCD TFT Display ILI9341 2.4 Inch Touch Screen With 37 Pin 16 BIT MCU Interface
LCD TFT Display ILI9341 2.4 Inch Touch Screen With 37 Pin 16 BIT MCU Interface
LCD TFT Display ILI9341 2.4 Inch Touch Screen With 37 Pin 16 BIT MCU Interface
LCD TFT Display ILI9341 2.4 Inch Touch Screen With 37 Pin 16 BIT MCU Interface
LCD TFT Display ILI9341 2.4 Inch Touch Screen With 37 Pin 16 BIT MCU Interface
LCD TFT Display ILI9341 2.4 Inch Touch Screen With 37 Pin 16 BIT MCU Interface
LCD TFT Display ILI9341 2.4 Inch Touch Screen With 37 Pin 16 BIT MCU Interface
LCD TFT Display ILI9341 2.4 Inch Touch Screen With 37 Pin 16 BIT MCU Interface
LCD TFT Display ILI9341 2.4 Inch Touch Screen With 37 Pin 16 BIT MCU Interface
LCD TFT Display ILI9341 2.4 Inch Touch Screen With 37 Pin 16 BIT MCU Interface
LCD TFT Display ILI9341 2.4 Inch Touch Screen With 37 Pin 16 BIT MCU Interface
LCD TFT Display ILI9341 2.4 Inch Touch Screen With 37 Pin 16 BIT MCU Interface
Specifications
Display Type :
Small TFT LCD Screen
Touch Screen :
With Resistive Touch Screen
Brand Name :
Formike
Payment Terms :
T/T, L/C, Credit card, Cash
Product Name :
240 * 320 Display LCD TFT 2.4 Inch Touch Screen With 37 Pin 8/16 BIT MCU Interface
Display Size :
2.4 inch
Place of Origin :
China
Controller Ic :
ILI9341
Interface :
37 Pin, 8/16 BIT MCU
Resolution :
240x320
Model Number :
KWH024Q12-F02
Supply Ability :
5000000000 pieces/year
Packaging Details :
Tray + Inner Box + Carton
Viewing Angle :
6 O'Clock
Operating Temperature :
-20°C to 70°C
Color :
Color
MOQ :
1 piece
Dimensions :
42.72mm x 60.26mm x 3.70mm
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Supply Voltage :
3.2V
Description

240 * 320 Display LCD TFT 2.4 Inch Touch Screen With 37 Pin 8/16 BIT MCU Interface

LCD TFT Display ILI9341 2.4 Inch Touch Screen With 37 Pin 16 BIT MCU Interface

LCD Name 240 * 320 Display LCD TFT 2.4 Inch Touch Screen With 37 Pin 8/16 BIT MCU Interface

LCD Size

2.4 inch LCD Module

Resolution

240(RGB)X320 Resolution

Color Depth

65K/262k

Contrast Ratio

500:1

Outline Dimension

42.72x 60.26 x 3.70mm

Active Area(HxV mm)

36.72x48.96mm

Viewing Direction

6 O'clock

Interface

8/16 bits MCU, 37 Pin

Backlight

4 White LED In paralle

Brightness

230cd/m2

Operating Temperature

-20℃~70℃

Backlight Supply Current/Voltage

60mA, 3.2V

* KWH024Q12-F02 is a small Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, RTP.

* It is 240x320 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
