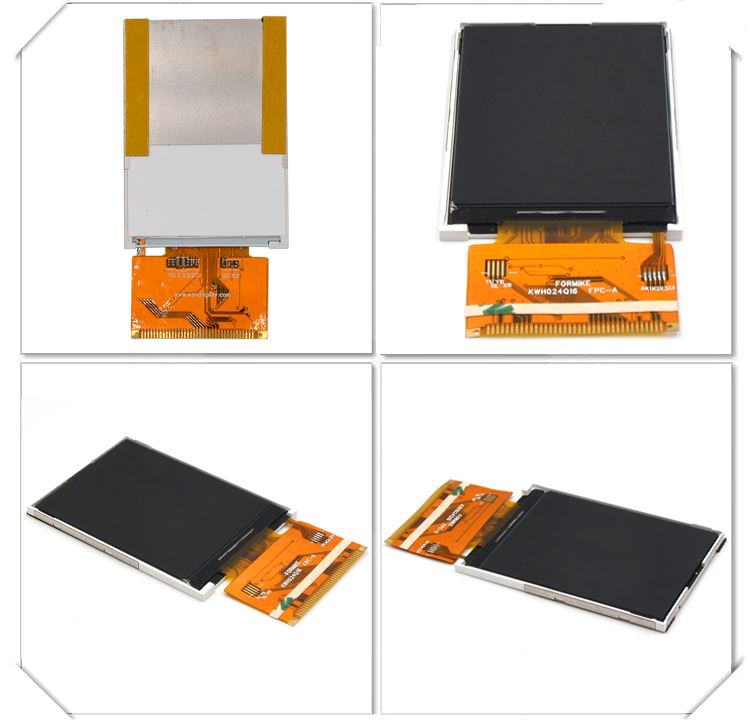

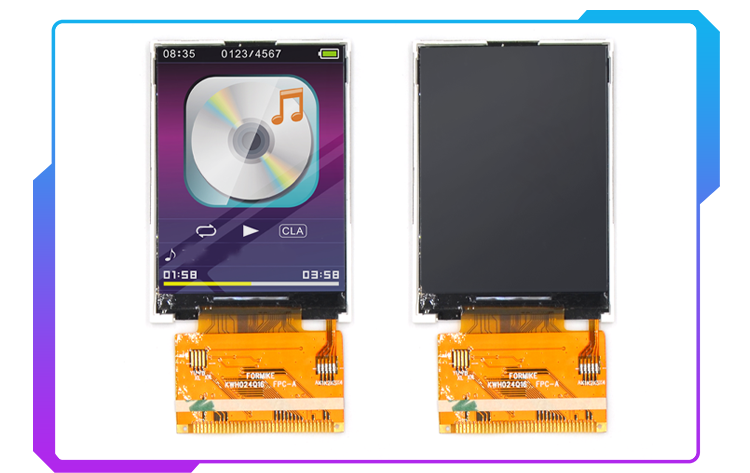

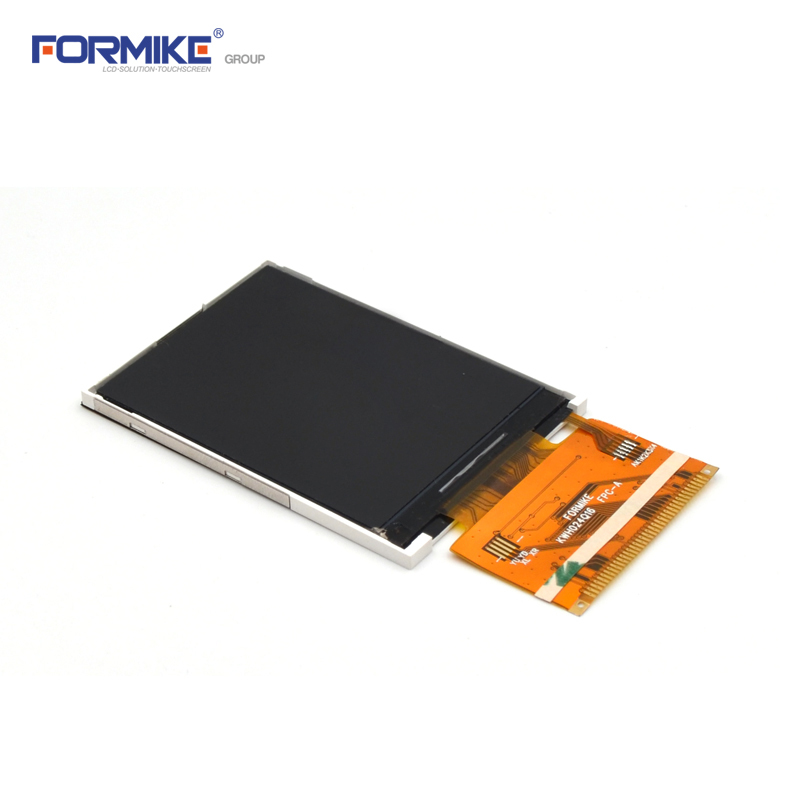

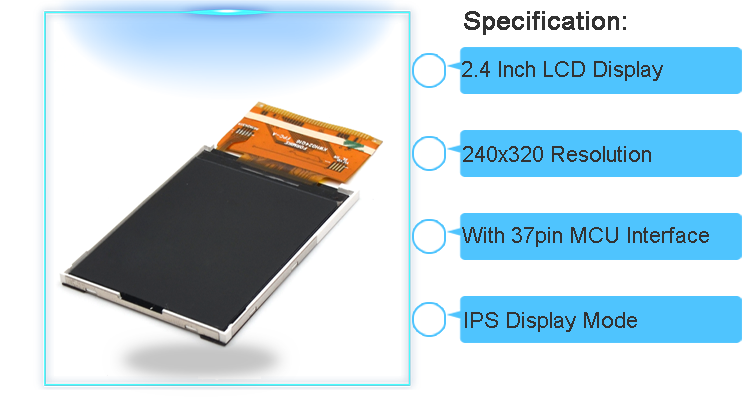

2.4 Inch Small Mini TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC
2.4 Inch Small Mini TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC
2.4 Inch Small Mini TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC
2.4 Inch Small Mini TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC
2.4 Inch Small Mini TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC
2.4 Inch Small Mini TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC
2.4 Inch Small Mini TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC
2.4 Inch Small Mini TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC
2.4 Inch Small Mini TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC
2.4 Inch Small Mini TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC
2.4 Inch Small Mini TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC
2.4 Inch Small Mini TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC
2.4 Inch Small Mini TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC
2.4 Inch Small Mini TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC
Specifications
Interface :
37 Pin, 16 BIT MCU
Brand Name :
Formike
Model Number :
KWH024Q16-F01
Payment Terms :
T/T, L/C, Credit card, Cash
Product Name :
2.4 Inch TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC
MOQ :
1 piece
Color :
Color
Controller Ic :
ILI9341
Dimensions :
42.72mm x 60.26mm x 2.50mm
Supply Voltage :
3.2V
Place of Origin :
China
Display Size :
2.4 inch
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Viewing Angle :
All
Display Type :
Small IPS TFT LCD Display
Operating Temperature :
-20°C to 70°C
Supply Ability :
5000000000 pieces/year
Packaging Details :
Tray + Inner Box + Carton
Resolution :
240 x 320
Description

2.4 Inch TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC

2.4 Inch Small Mini TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC

Product Name 2.4 Inch TFT Display 240x320 IPS LCD Module With ILI9341 Driver IC
LCD Size 2.4 Inch TFT LCD Display Module
Display Mode IPS
Resolution 240x320
Outline Dimension (mm) 42.72x60.26x2.50
Active Area (mm) 36.72x48.96
Dot pitch (mm) 0.153x0.153
Viewing Direction All
Interface 16 BIT MCU Interface, 37 Pin
Driver IC ILI9341
Brightness (Cd/m2) 200
Contrast Ratio 800:1
Backlight 4 White LED in Parallel

Backlight Supply

(Current/Voltage)

 60mA 3.2V
Touch Screen Without (Optional with)

* KWH024Q16-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 240x320 resolution IPS TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
