Specifications
Display Type :
Small IPS TFT LCD Panel
Interface :
40 Pin, 24 BIT RGB
Model Number :
KWH030ST16-F01
Dimensions :
41.80mm ×73.97mm ×2.15mm
Product Name :
360x640 IPS LCD Screen 3 Inch TFT Display Small LCD For Consumer Electronics
Supply Ability :
5000000000 pieces/year
Supply Voltage :
2.8V
MOQ :
1 piece
Touch Screen :
Without (Optional with touch screen)
Resolution :
360x640
Controller Ic :
ST7701S
Place of Origin :
China
Operating Temperature :
-20°C to 70°C
Packaging Details :
Tray + Inner Box + Carton
Payment Terms :
T/T, L/C, Credit card, Cash
Viewing Angle :
All
Brand Name :
Formike
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Display Size :
3.0 inch
Color :
Color
Description

360x640 IPS LCD Screen 3 Inch TFT Display Small LCD For Consumer Electronics

360x640 IPS Hdmi TFT Display Screen 3 Inch Small LCD For Consumer Electronics

Product Name 360x640 IPS LCD Screen 3 Inch TFT Display Small LCD For Consumer Electronics
LCD Size 3 Inch IPS TFT LCD Display Screen
Display Mode IPS
Resolution 360x640
Outline Dimension (mm) 41.80 x 73.97 x 2.15
Active Area (mm) 36.72 x 65.13
Dot pitch (mm) 0.102x0.102
Viewing Direction All
Interface 24 BIT RGB Interface, 40 Pin
Driver IC ST7701S
Brightness (Cd/m2) 600
Contrast Ratio 1200:1
Backlight 6 White LED

Backlight Supply

(Current/Voltage)

 20mA 19.2V
Touch Screen Optional with Touch Screen

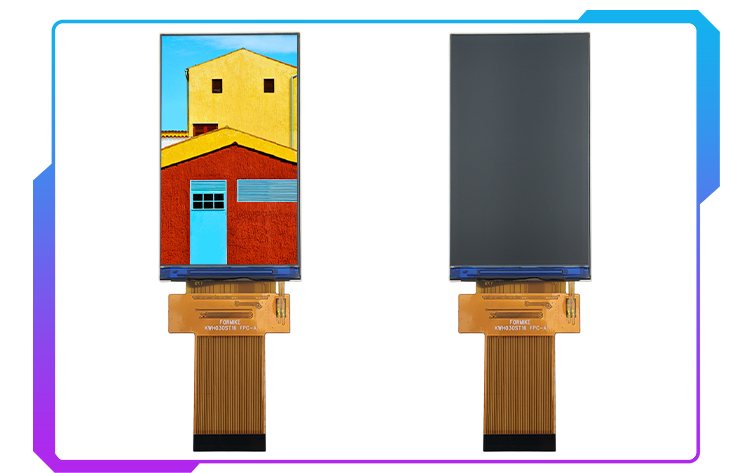

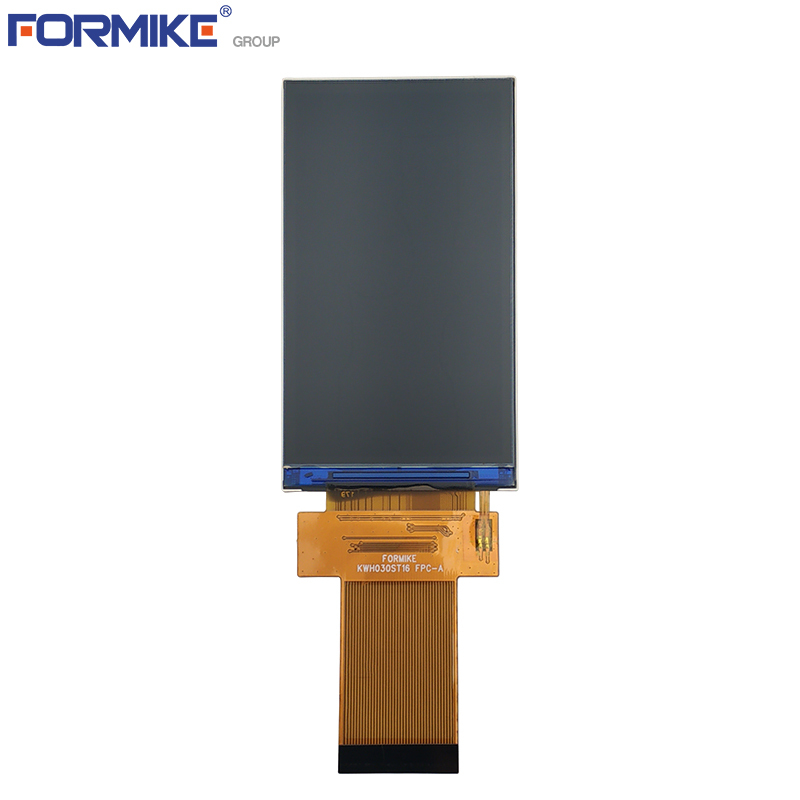

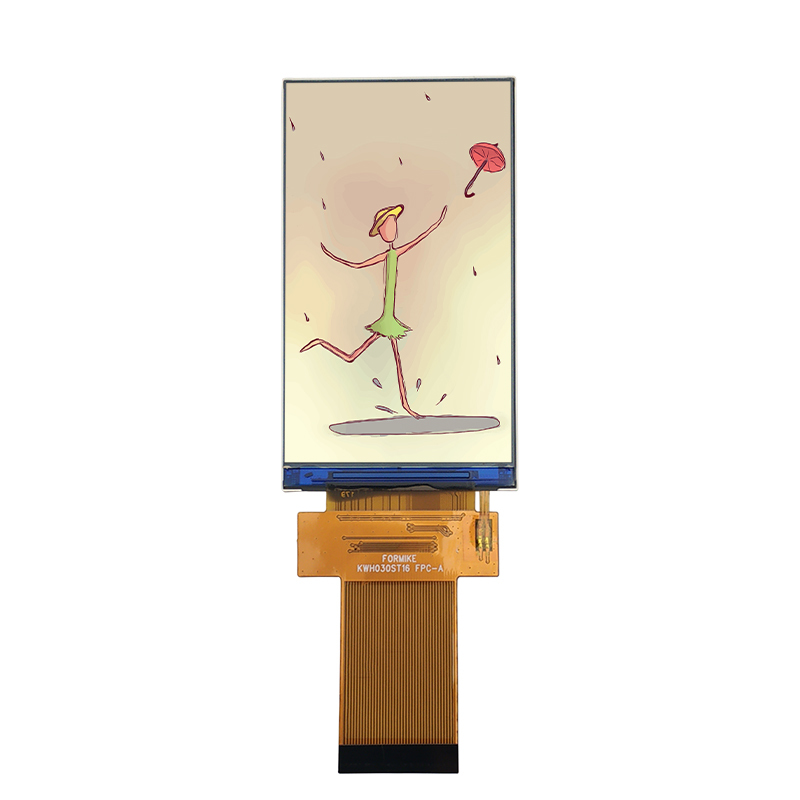

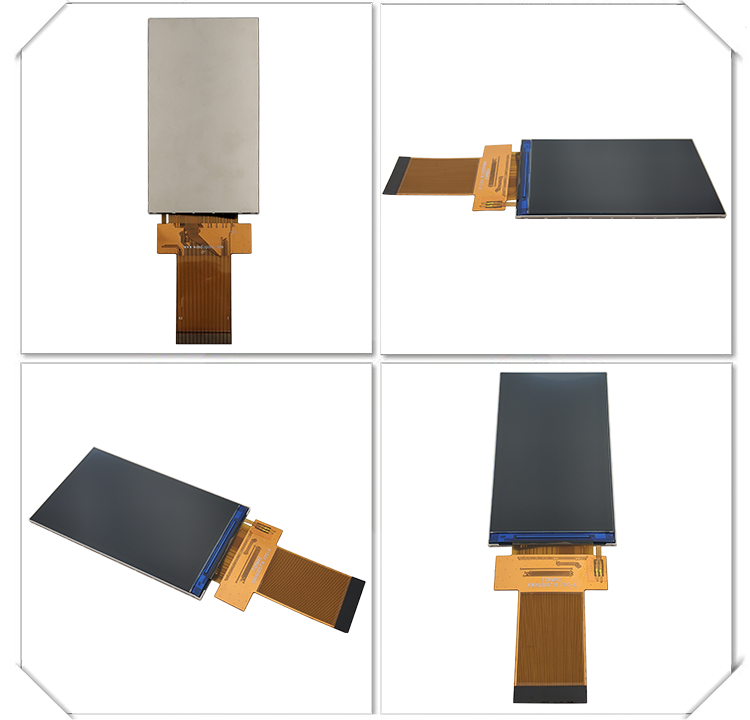

* KWH030ST16-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD Display, driver IC, FPC, backlight.

* It is 360x640 resolution IPS TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

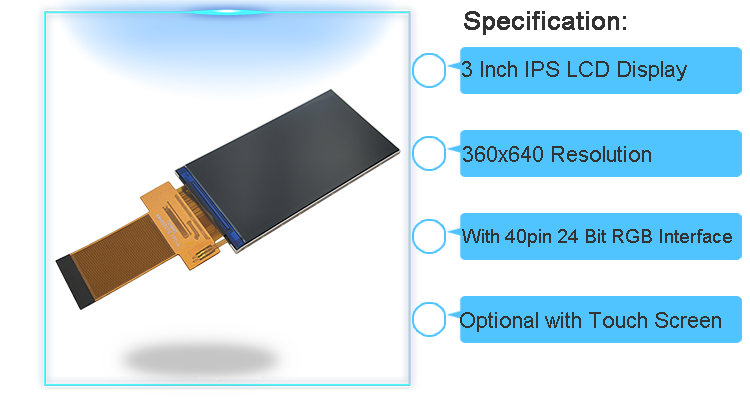

Key Feature:

• Small Portrait LCD

• 3.0 inch 360x640 TFT LCD display

• IPS display type & All viewing angle

• High brightness is up to 600cd/m2

• With 40pin 24bit RGB interface

• It's widely used for Handheld PDA, Industrial, Healthcare, Portable Navigation, MP3 PMP, Instruments Meters, Mobile Phone, Automotive Display and other small portrait lcd display solution.
