Specifications
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Supply Voltage :
3.2V
Display Size :
3 inch
MOQ :
1 piece
Packaging Details :
Tray + Inner Box + Carton
Product Name :
240x400 LCD Display 3 Inch TFT Touch Panel With 40Pin Soldering 8/9/16/18 BIT MCU Interface
Viewing Angle :
12 O'Clock
Display Type :
TFT LCD Module
Operating Temperature :
-20°C to 70°C
Interface :
40Pin, 8/9/16/18 BIT MCU
Supply Ability :
5000000000 pieces/year
Controller Ic :
ST7793
Dimensions :
45.04mm x 77.00mm x 3.70mm
Resolution :
240*400
Model Number :
KWH030ST11-F02
Color :
Color
Brand Name :
Formike
Place of Origin :
China
Payment Terms :
T/T, L/C, Credit card, Cash
Touch Screen :
With resistive touch screen
Description

240x400 LCD Display 3 Inch TFT Touch Panel With 40Pin Soldering 8/9/16/18 BIT MCU Interface

OEM Monochrome TFT Display 3 Inch TFT LCD Screen Touch Panel 240x400

LCD Name 240x400 LCD Display 3 Inch TFT Touch Panel With 40Pin Soldering 8/9/16/18 BIT MCU Interface

LCD Size

3 inch LCD Module

Resolution

240(RGB)X400 Resolution

Color Depth

65K/262K

Contrast Ratio

250:1

Outline Dimension

45.04x 77.00 x 3.70mm

Active Area(HxV mm)

38.88x64.80mm

Viewing Direction

12 O'Clock

Interface

8/9/16/18 BIT MCU, 40 Pin

Backlight

4 LED

Brightness

320cd/m2

Operating Temperature

-20℃~70℃

Backlight Supply Current/Voltage

60mA, 3.3V

Driver IC

ST7793

Touch Panel

With RTP

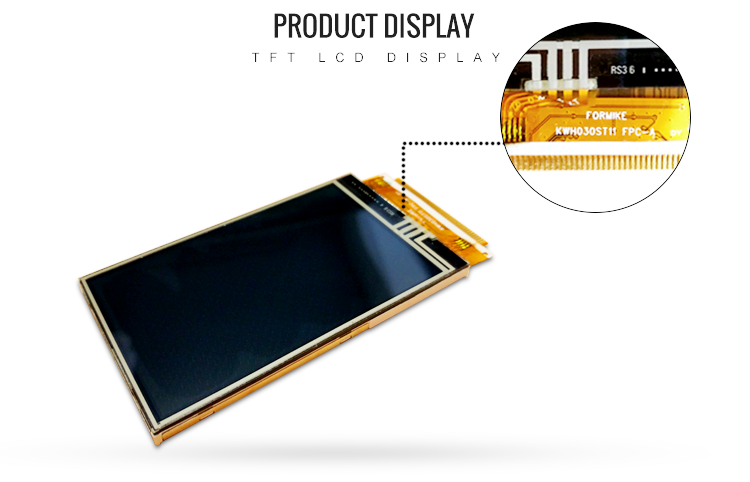

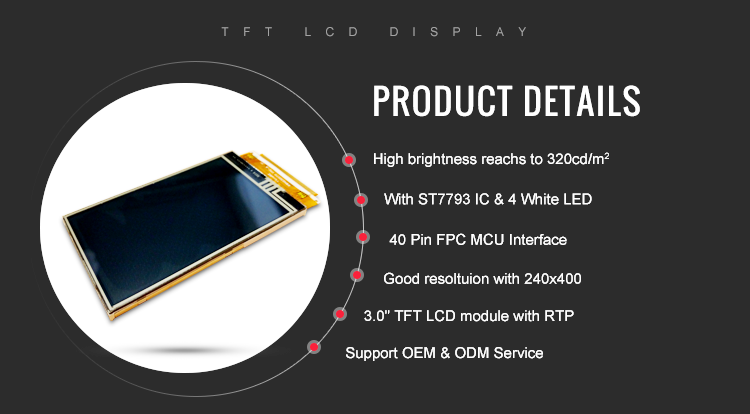

* KWH030ST11-F02 is a small Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, RTP.

* It is 240x400 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
