Specifications
Supply Ability :
5000000000 pieces/year
Color :
Color
Viewing Angle :
12 O'Clock
Resolution :
240 * 400
Product Name :
240*400 WQVGA TFT LCD MCU 3 Inch Screen With 40Pin Soldering FPC
Display Type :
TFT LCD Screen
Place of Origin :
China
Supply Voltage :
3.2V
Dimensions :
45.04mm x 77.00mm x 2.50mm
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Display Size :
3inch
MOQ :
1 piece
Packaging Details :
Tray + Inner Box + Carton
Controller Ic :
ST7793
Touch Screen :
Without (Optional with touch screen)
Brand Name :
Formike
Payment Terms :
T/T, L/C, Credit card, Cash
Operating Temperature :
-20°C to 70°C
Model Number :
KWH030ST11-F01
Interface :
40 Pin, 8/9/16/18 BIT MCU
Description

240*400 WQVGA TFT LCD MCU 3 Inch Screen With 40Pin Soldering FPC

240x400 WQVGA TFT LCD Capacitive Touchscreen MCU 3 Inch With 40Pin Soldering FPC

LCD Name 240*400 WQVGA TFT LCD MCU 3 Inch Screen With 40Pin Soldering FPC

LCD Size

3 inch LCD Module

Resolution

240(RGB)X400 Resolution

Color Depth

65K/262K

Contrast Ratio

250:1

Outline Dimension

45.04x 77.00 x 2.45mm

Active Area(HxV mm)

38.88x64.80mm

Viewing Direction

12 O'Clock

Interface

8/9/16/18 BIT MCU, 40 Pin

Backlight

4 LED

Brightness

350cd/m2

Operating Temperature

-20℃~70℃

Backlight Supply Current/Voltage

60mA, 3.3V

Driver IC

ST7793

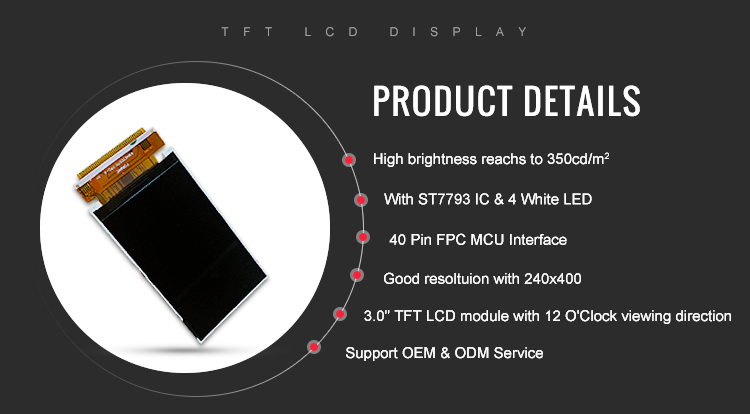

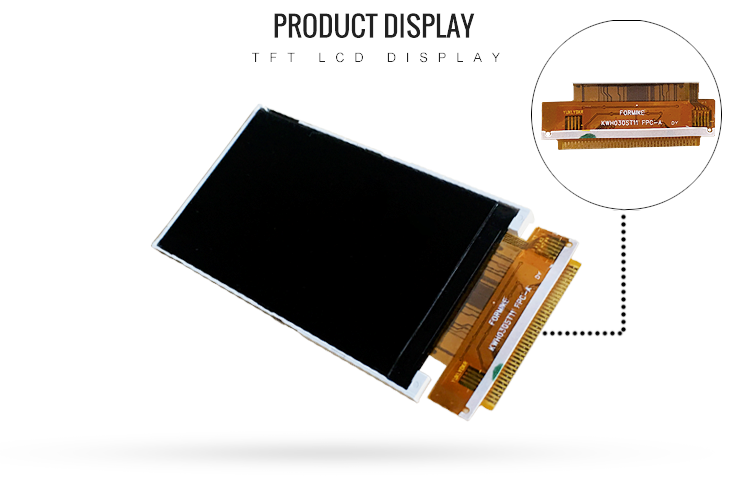

* KWH030ST11-F01 is a small Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 240x400 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

240x400 WQVGA TFT LCD Capacitive Touchscreen MCU 3 Inch With 40Pin Soldering FPC240x400 WQVGA TFT LCD Capacitive Touchscreen MCU 3 Inch With 40Pin Soldering FPC
