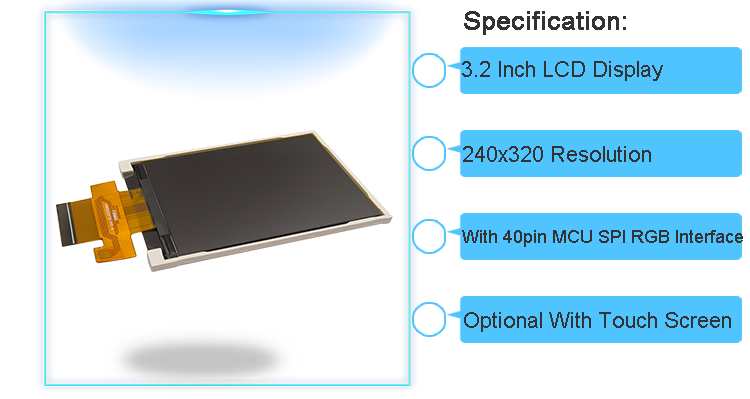

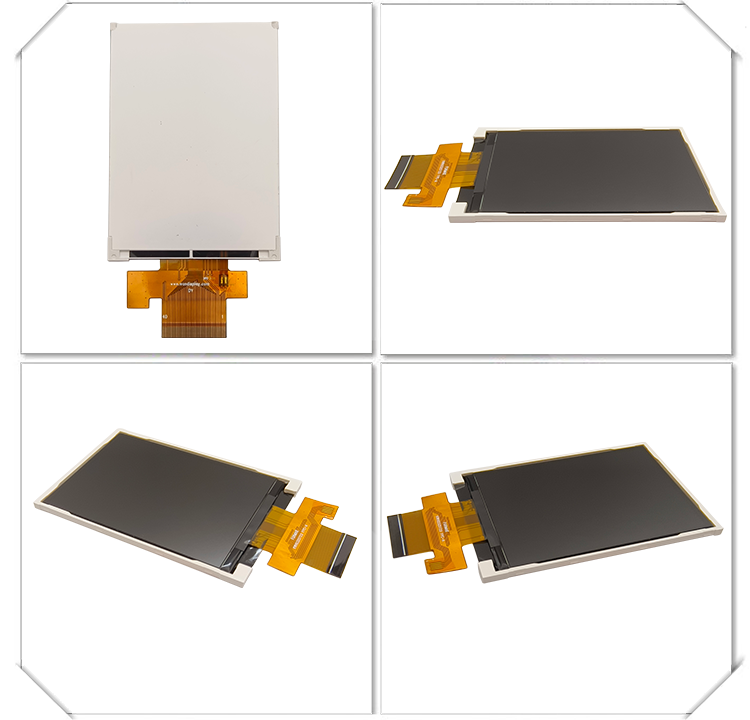

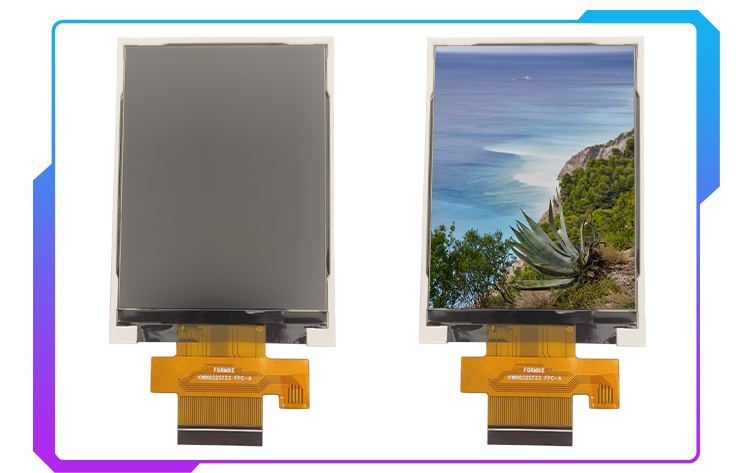

Backlight 240x320 ST7789 TFT Display 3.2 Inch LCD Touch Screen Custom

Specifications

Place of Origin :

China

Display Size :

3.2 inch

Interface :

40 Pin, 8/16/18 BIT MCU, 16/18 RGB, 4W /3W SPI

Product Name :

240x320 LCD ST7789 3.2 Inch TFT Display With 8/16/18 BIT MCU RGB SPI Interface

Operating Temperature :

-20°C to 70°C

Model Number :

KWH032ST25-F01

Display Type :

3.2 Inch TFT LCD Screen

Brand Name :

Formike

Color :

Color

Touch Screen :

Without (Optional with touch panel)

Dimensions :

55.04mm x 78.00mm x 2.40mm

Payment Terms :

T/T, L/C, Credit card, Cash

Packaging Details :

Tray + Inner Box + Carton

Viewing Angle :

12 O'Clock

Supply Ability :

5000000000 pieces/year

Delivery Time :

In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Controller Ic :

ST7789V2

Resolution :

240 x 320

MOQ :

1 piece

Supply Voltage :

3.2V

Description

240x320 LCD ST7789 3.2 Inch TFT Display With 8/16/18 BIT MCU RGB SPI Interface

Product Name	240x320 LCD ST7789 3.2 Inch TFT Display With 8/16/18 BIT MCU RGB SPI Interface
LCD Size	3.2 Inch TFT LCD Display Module
Display Mode	Transmissive
Resolution	240x320
Outline Dimension (mm)	55.04x78.00x2.40
Active Area (mm)	47.88x63.84
Dot Pitch (mm)	0.1995x0.1995
Viewing Direction	12 O'Clock
Interface	MCU/RGB/SPI Interface, 40 Pin
Driver IC	ST7789V2
Brightness (Cd/m²)	400
Contrast Ratio	350:1
Backlight	5 White LED in Parallel
Backlight Supply (Current/Voltage)	75mA 3.2V
Touch Screen	Optional With Resistive Touch Screen or Capacitive Touch Panel

Product Features

KWH032ST25-F01 is a Transmissive type color active matrix liquid crystal display (LCD)
Composed of a TFT LCD panel, driver IC, FPC, backlight
240x320 resolution TFT LCD module
Backlight with different brightness options from 250 - 1500cd/m² are available
Specific touch panel can be designed & customized
RoHS & REACH compliant
Contact us for recommendations if you can't find a suitable model
