Specifications
Display Type :
3.2 Inch TFT LCD Module
Brand Name :
Formike
Display Size :
3.2-inch
Resolution :
240x320
Place of Origin :
China
Payment Terms :
T/T, L/C, Credit card, Cash
Viewing Angle :
12 O'Clock
Dimensions :
55.94mm x 77.60mm x 2.40mm
Product Name :
240x320 TFT LCD Module 3.2 Inch LCD Screen Serial TFT Display With ILI9341 Driver IC
Supply Voltage :
3.2V
Packaging Details :
Tray + Inner Box + Carton
Touch Screen :
Without (Optional with touch screen)
Interface :
46Pin, 8/16/18 BIT MCU, 16/18 RGB, 4W /3W SPI
Model Number :
KWH032ST05-F01
Supply Ability :
5000000000 pieces/year
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Color :
Color
MOQ :
1 piece
Controller Ic :
ILI9341
Operating Temperature :
-20°C to 70°C
Description

240x320 TFT LCD Module 3.2 Inch LCD Screen Serial TFT Display With ILI9341 Driver IC

240x320 3.2 Inch TFT Display Touch LCD Screen Module ILI9341 Driver IC

LCD Name 240x320 TFT LCD Module 3.2 Inch LCD Screen Serial TFT Display With ILI9341 Driver IC

Type

3.2 Inch LCD Module

Resolution

240(RGB)X320 Resolution

Color Depth

65K/262K

Contrast Ratio

500:1

Outline Dimension

55.94x 77.60 x 2.40mm

Active Area(HxV mm)

48.60x64.80mm

Viewing Direction

12 O'Clock

Interface

MCU, RGB, Serial, SPI, 46 Pin

Backlight

5 LED

Brightness

330cd/m2

Operating Temperature

-20℃~70℃

Backlight Supply Current/Voltage

75mA, 3.3V

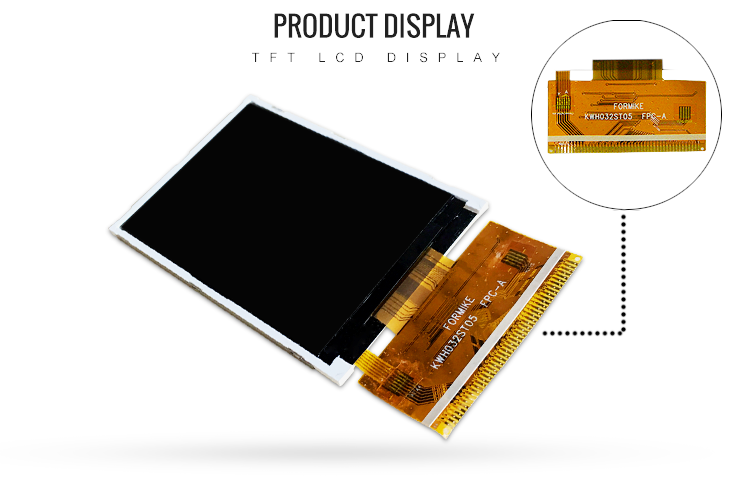

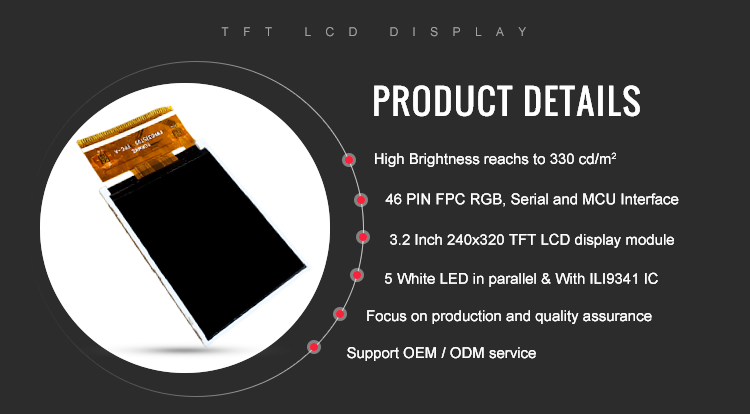

* KWH032ST05-F01 is a small Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 240x320 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
