KSBH 90A Industrial Pipeline Gas Detector with Accurate Gas Detection Extended Working Time and Explosion Proof Housing
KSBH 90A Industrial Pipeline Gas Detector with Accurate Gas Detection Extended Working Time and Explosion Proof Housing
KSBH 90A Industrial Pipeline Gas Detector with Accurate Gas Detection Extended Working Time and Explosion Proof Housing
KSBH 90A Industrial Pipeline Gas Detector with Accurate Gas Detection Extended Working Time and Explosion Proof Housing
Specifications
Brand Name :
KACISE
Model Number :
KSBH-90A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Response time :
T＜30s
Accuracy :
≦ 5% F.S.
Operating voltage :
DC3.7V Li battery 1500mAh
Humidity :
＜95%RH non-condensing
Working time :
≧8h continuously
Charging time :
4h～6h
Description

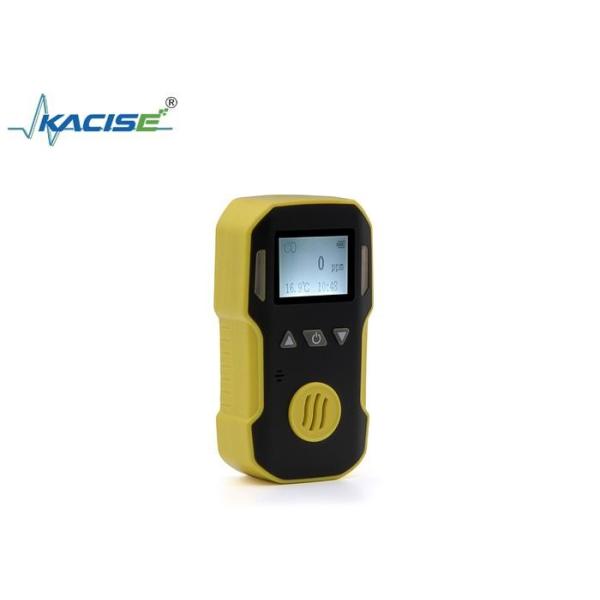

KSBH - 90A Industrial Pipeline Gas Detector
Introduction

The KSBH - 90A Industrial Pipeline Gas Detector is designed to safeguard industrial pipelines. Using a high - sensitivity sensor with natural diffusion, it accurately detects combustible and toxic gas leaks. With a dimension of 100×60×30mm and a weight of 130g, it’s easy to carry during pipeline inspections. The detector has a long sensor life of 2 years and offers password management to avoid wrong operations. It provides visual, audible, and vibrating alarms, ensuring timely alert in case of gas leaks.

Product Features
  • Advanced MCU control with low power consumption;
  • Adjustable low and high alarm level;
  • Adjustable calibrating level;
  • High concentration protection for combustible gas;
  • Self test for the combustible gas sensor;
  • Low battery indication;
  • Self-adjustment function
  • Visual and audible alarm with vibration;
  • Advanced self-examination and self-renovation function
  • Password management to avoid wrong operation;
  • Explosive proof housing.
Technical Parameters
Accuracy ≦ 5% F.S.
Response time T＜30s
Indication LCD indicates the time and state Indication of alarm, fault and low voltage with LED, sound, vibration
Operating Environment Operating temperature -40℃～70℃ (for combustible gas)
Operating temperature: -20℃～50℃ (for toxic gas)
Humidity ＜95%RH non-condensing
Operating voltage DC3.7V Li battery 1500mAh
Working time ≧8h continuously
Charging time 4h～6h
Sensor life 2 years
Weight about 130g (including battery but without accessories)
Explosion proof Ex ib llB T3 Gb
Dimension 100mm×60mm×30mm
Specifications
Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-5%vol 0.01%vol 1%vol 2.5%vol
C2H4O 0-100ppm 1ppm 10ppm 20ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
HC 0-2%vol 0.01%vol 0 0
C2H6O 0-100ppm 1ppm 10ppm 20ppm
NH3 0-100ppm 1ppm 10ppm 20ppm
CL2 0-50ppm 0.1ppm 5ppm 10ppm
O3 0-20ppm 0.1ppm 5ppm 10ppm
SO2 0-20ppm 0.1 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5%vol 0.01%vol 1%vol 2%vol
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1ppm 5ppm 10ppm
HCL 0-50ppm 0.1ppm 5ppm 10ppm
HF 0-10ppm 0.1ppm 3ppm 5ppm
C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm
