KSBH-90A Mining Gas Detector with Explosion Proof Housing, Adjustable Alarm Levels, and Self-Adjustment Function
KSBH-90A Mining Gas Detector with Explosion Proof Housing, Adjustable Alarm Levels, and Self-Adjustment Function
KSBH-90A Mining Gas Detector with Explosion Proof Housing, Adjustable Alarm Levels, and Self-Adjustment Function
KSBH-90A Mining Gas Detector with Explosion Proof Housing, Adjustable Alarm Levels, and Self-Adjustment Function
Specifications
Brand Name :
KACISE
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Model Number :
KSBH - 90A
Accuracy :
≦ 5% F.S.
Response time :
T＜30s
Humidity :
＜95%RH non-condensing
Operating voltage :
DC3.7V Li battery 1500mAh
Charging time :
4h～6h
Working time :
≧8h continuously
Description

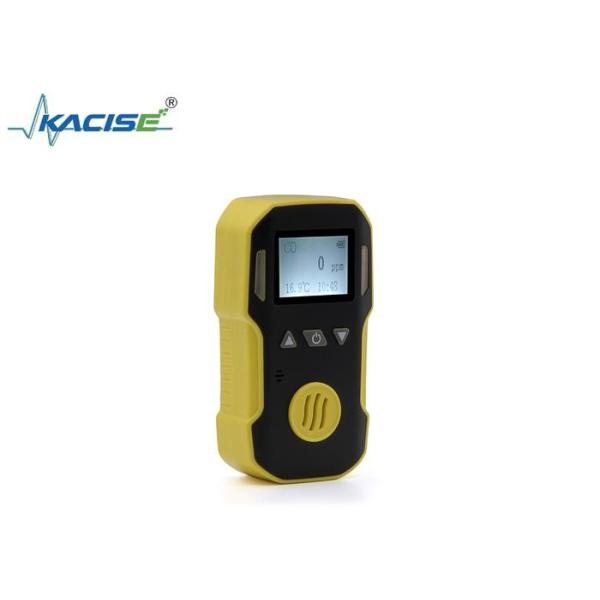

KSBH - 90A Mining Gas Detector
Introduction

The KSBH - 90A Mining Gas Detector is an essential safety device for mines. It can continuously detect combustible and toxic gases in harsh mining environments. Operating within - 40℃ to 70℃ for combustible gas and - 20℃ to 50℃ for toxic gas, it’s highly adaptable. Its explosion - proof housing (Ex ib llB T3 Gb) ensures safe use in potentially explosive areas. The detector has adjustable alarm and calibrating levels, and features self - test and self - adjustment functions, enhancing its reliability in mining operations.

Product Features
  • Advanced MCU control with low power consumption;
  • Adjustable low and high alarm level;
  • Adjustable calibrating level;
  • High concentration protection for combustible gas;
  • Self test for the combustible gas sensor;
  • Low battery indication;
  • Self-adjustment function
  • Visual and audible alarm with vibration;
  • Advanced self-examination and self-renovation function
  • Password management to avoid wrong operation;
  • Explosive proof housing.
Technical Parameters
Accuracy ≦ 5% F.S.
Response time T＜30s
Indication LCD indicates the time and state Indication of alarm, fault and low voltage with LED, sound, vibration
Operating Environment Operating temperature -40℃～70℃ (for combustible gas)
Operating temperature: -20℃～50℃ (for toxic gas)
Humidity ＜95%RH non-condensing
Operating voltage DC3.7V Li battery 1500mAh
Working time ≧8h continuously
Charging time 4h～6h
Sensor life 2 years
Weight about 130g (including battery but without accessories)
Explosion proof Ex ib llB T3 Gb
Dimension 100mm×60mm×30mm
Specifications
Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-5%vol 0.01%vol 1%vol 2.5%vol
C2H4O 0-100ppm 1ppm 10ppm 20ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
HC 0-2%vol 0.01%vol 0 0
C2H6O 0-100ppm 1ppm 10ppm 20ppm
NH3 0-100ppm 1ppm 10ppm 20ppm
CL2 0-50ppm 0.1ppm 5ppm 10ppm
O3 0-20ppm 0.1ppm 5ppm 10ppm
SO2 0-20ppm 0.1 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5%vol 0.01%vol 1%vol 2%vol
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1ppm 5ppm 10ppm
HCL 0-50ppm 0.1ppm 5ppm 10ppm
HF 0-10ppm 0.1ppm 3ppm 5ppm
C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm
