KFGT-K90 Hazardous Zone Gas Sentinel with IP66 Protection, Quick Response Time ≤30s, and Sensor Replacement Without Calibration
KFGT-K90 Hazardous Zone Gas Sentinel with IP66 Protection, Quick Response Time ≤30s, and Sensor Replacement Without Calibration
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Connection port :
M27*1.5mm
Protection class :
IP66
Working environment :
-40℃～70℃ ＜93%RH (no dew)
Working pressure :
36~106Kpa
Response Time :
≦30s
Zero drift :
≦±2% F.S.
Description

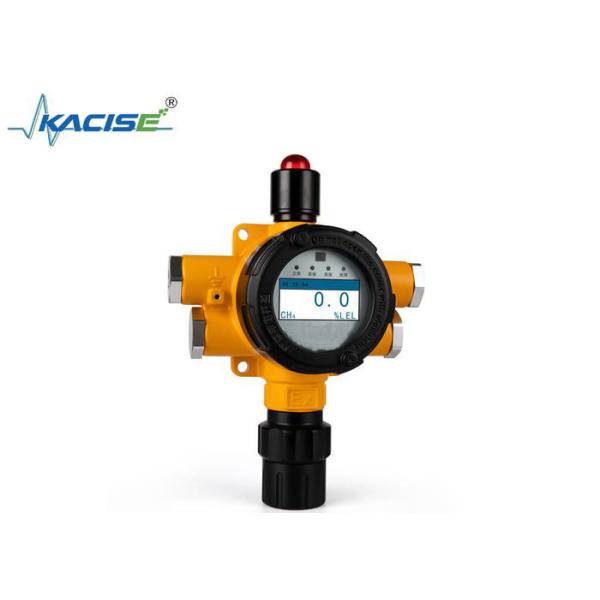

KFGT - K90 Hazardous Zone Gas Sentinel

Introduction

Hazardous Zone Gas Sentinel: KFGT - K90 is a reliable solution for gas detection in hazardous zones. It has a resolution of 0.1%LEL and a response time of ≤30s, enabling quick and precise detection. Sensor replacement doesn’t require calibration, reducing maintenance efforts. The independent RTC dock ensures accurate timekeeping. It can operate within a working pressure range of 36 - 106Kpa, making it adaptable to different environments.

Product Features

  1. High resolution of 0.1%LEL and quick response time.
  2. Sensor replacement without calibration.
  3. Independent RTC dock for accurate timekeeping.
  4. Adaptable to different working pressures.

Technical Parameters

Protection class IP66
Connection port M27*1.5mm
Zero drift ≦±2% F.S.
Response Time ≦30s
Working pressure 36~106Kpa
Working environment -40℃～70℃ ＜93%RH (no dew)
Resolution 0.1%LEL
Display error ±3%LEL
Detection principle catalytic combustion
Gas Sensor Life 2 years
Explosion-proof grade Ex db IIC T6 Gb
Cable 3x1.5mm2, 4x1.5mm'shielded cable
Weight 2.1KG
Dimensions 26*19*13.5cm

Specifications

Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-5%vol 0.01%vol 1%vol 2.5%vol
C2H4O 0-100ppm 1ppm 10ppm 20ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
HC 0-2%vol 0.01%vol 0 0
C2H6O 0-100ppm 1ppm 10ppm 20ppm
NH3 0-100ppm 1ppm 10ppm 20ppm
CL2 0-50ppm 0.1ppm 5ppm 10ppm
O3 0-20ppm 0.1ppm 5ppm 10ppm
SO2 0-20ppm 0.1 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5%vol 0.01%vol 1%vol 2%vol
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1ppm 5ppm 10ppm
HCL 0-50ppm 0.1ppm 5ppm 10ppm
HF 0-10ppm 0.1ppm 3ppm 5ppm
C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm
