Low Power Integrated Air Quality Module KGD-AM-102 with Fast Response for PM and VOC Detection
Low Power Integrated Air Quality Module KGD-AM-102 with Fast Response for PM and VOC Detection
Specifications
Brand Name :
KACISE
Model Number :
KGD-AM-102
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Power - on stabilization time :
≤180s（VOC）
Data refresh frequency :
1s
Operating conditions :
-20~60℃, 0~95%RH
Storage conditions :
-40 - 80℃, 0 - 95%RH (Non - condensing)
Operating voltage :
DC 5V±0.2V, ripple below 100mV
Communication interface :
① UART (3.3V/5V)
Description

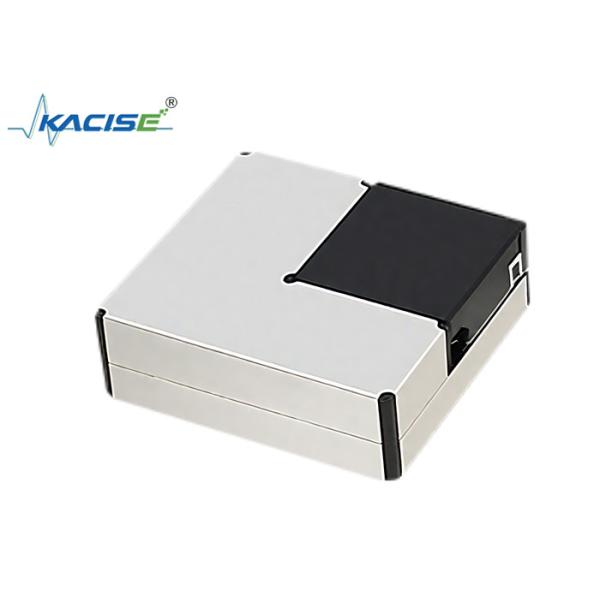

Low - Power Integrated Air Quality Module KGD - AM - 102
Product Introduction

The laser dust sensor has a built - in MOX chip, enabling the simultaneous output of multiple indicators such as PM1.0, PM2.5, PM10, and VOC, meeting customers' needs for performance upgrades without changing the product structural design.

Low Power Integrated Air Quality Module KGD-AM-102 with Fast Response for PM and VOC Detection

Product Features
  • Capable of simultaneously outputting multiple indicators such as PM1.0, PM2.5, PM10, and VOC.
  • Built into the laser dust sensor, fully compatible with customers' existing product structures, requiring no modifications.
  • Fast response, low power consumption, and good long - term stability.
  • Correction and compensation technology to ensure accuracy across the full temperature range.
Technical Parameters
Detection range Dust: 0 - 500μg/m³ (Can detect up to 5000μg/m³)VOC: 0 - 10ppm
Detection accuracy PM1.0/PM2.5:
0~100μg/m³, ±10μg/m³
101~500μg/m³, ±10% reading
PM10:
0~100μg/m³, ±25μg/m³
101~500μg/m³, ±25% reading
(GRIMM, 0~40℃, 50 ±10%RH)
VOC:
±15% (@0.3-1ppm)
±25% (@30ppm)
Power - on stabilization time ≤180s(VOC)
Data refresh frequency 1s
Operating conditions -20~60℃, 0~95%RH
Storage conditions -40 - 80℃, 0 - 95%RH (Non - condensing)
Operating voltage DC 5V±0.2V, ripple below 100mV
Communication interface ① UART (3.3V/5V)
② IIC(3.3V/5V)
Product dimensions W38*H35*D12 mm
