Stable Integrated Air Quality Module with Multiple Indicators Output Fast Response and Low Power Consumption Laser Dust Sensor
Stable Integrated Air Quality Module with Multiple Indicators Output Fast Response and Low Power Consumption Laser Dust Sensor
Specifications
Brand Name :
KACISE
Model Number :
KGD-AM-104
Certification :
CE
Place of Origin :
CHINA
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
MOQ :
1PCS
Data refresh frequency :
1s
Power - on stabilization time :
≤180s（VOC）
Operating conditions :
-10~60℃, 5~95%RH
Storage conditions :
-30℃ to 70℃, 0 - 95%RH (Non - condensing)
Operating voltage :
DC 5V±0.2V, with a ripple less than 10mV
Communication interface :
① UART (3.3V/5V)
Description

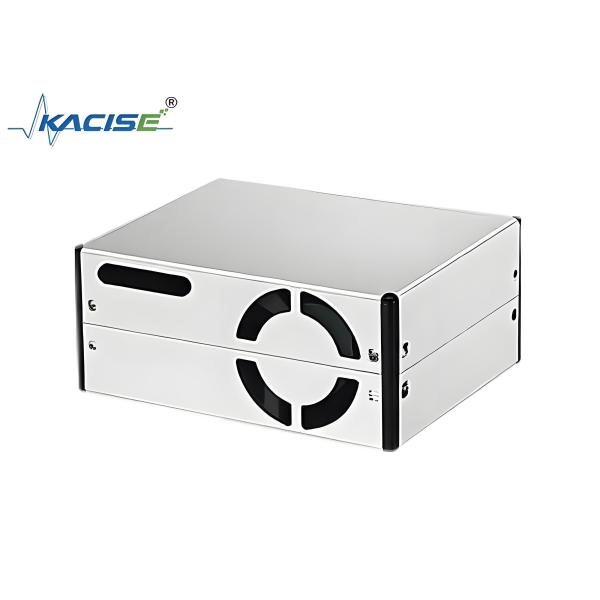

Stable Integrated Air Quality Module KGD - AM - 104
Product Introduction

The laser dust sensor is equipped with a built - in MOX chip, enabling the simultaneous output of multiple indicators such as PM1.0, PM2.5, PM10, VOC, NOₓ, CO, and HC. This allows customers to upgrade the performance of their products without altering the structural design.

Stable Integrated Air Quality Module with Multiple Indicators Output Fast Response and Low Power Consumption Laser Dust Sensor

Product Features
  • Capable of simultaneously outputting multiple indicators including PM1.0, PM2.5, PM10, VOC, NOₓ, CO, and HC.
  • Built into the laser dust sensor, it is fully compatible with customers' existing product structures, requiring no modifications.
  • Features fast response, low power consumption, and excellent long - term stability.
  • Utilizes correction and compensation technology to ensure accuracy across the entire temperature range.
Technical Parameters
Detection range Dust: 0 - 5000μg/m³
VOC: 0 - 10ppm
NO₂: 0 - 1000ppb (Optional)
Detection accuracy PM1.0/PM2.5:
0~100μg/m³, ±10μg/m³
101~500μg/m³, ±10% reading
PM10:
0~100μg/m³, ±25μg/m³
101~500μg/m³, ±25% reading
(GRIMM, 0~40℃, 50 ±10%RH)
Data refresh frequency 1s
Power - on stabilization time ≤180s(VOC)
Operating conditions -10~60℃, 5~95%RH
Storage conditions -30℃ to 70℃, 0 - 95%RH (Non - condensing)
Operating voltage DC 5V±0.2V, with a ripple less than 10mV
Communication interface ① UART (3.3V/5V)
② IIC(5V)
Product dimensions W50*H38*D21 mm
