KGD-PM-201 Laser Particle Counting Sensor with 1s Data Refresh Frequency 1000000 pcs/28.3L Maximum Allowable Concentration and 0.3μm Detection Size
KGD-PM-201 Laser Particle Counting Sensor with 1s Data Refresh Frequency 1000000 pcs/28.3L Maximum Allowable Concentration and 0.3μm Detection Size
Specifications
Model Number :
KGD-PM-201
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Detected Particle Size Range :
0.3 - 10μm
Counting Efficiency :
50%@0.3μm100% @>0.45μm (Referenced to Lighthouse Solair 3100, under the environmental conditions of 25±2℃, 50±10%RH)
Counting Repeatability :
≤5%
Self-cleaning Time :
≤5 min
Maximum Allowable Operating Concentration :
1000000 pcs/28.3L@0.3um
Data Refresh Frequency :
1s
Description

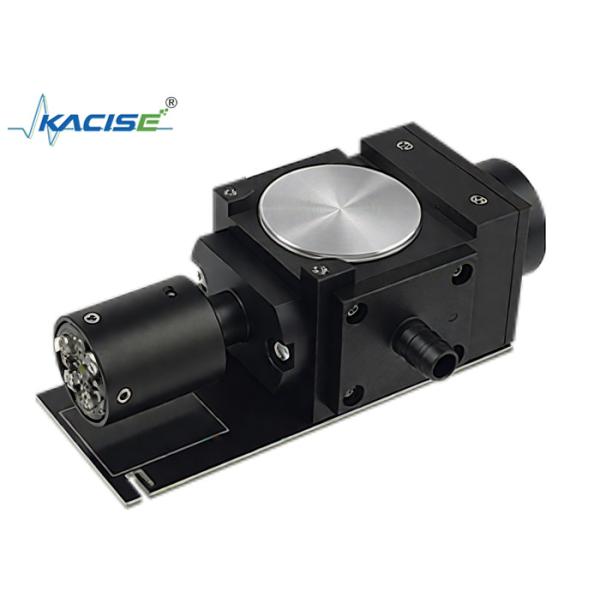

Laser Particle Counting Sensor KGD - PM - 201
Product Introduction
KGD-PM-201 Laser Particle Counting Sensor with 1s Data Refresh Frequency 1000000 pcs/28.3L Maximum Allowable Concentration and 0.3μm Detection Size

The laser particle counting sensor KGD - PM - 201 adopts the principle of optical scattering. It can accurately detect and calculate the number of suspended particulate matters with different particle sizes in the air per unit volume. It can simultaneously output the particle numbers (pcs/28.3L) of 0.3μm, 0.5μm, 1.0μm, 5.0μm, and 10μm, and the indication error meets the requirements of JJF1190.

Product Features
  • Can output the numbers of particles with sizes of 0.3μm, 0.5μm, 1.0μm, 5.0μm, and 10μm (pcs/28.3L).
  • Industrial-grade laser with high reliability.
  • Small in size and easy to install.
  • Meets the requirements of JJF 1190.
Technical Parameters
Detected Particle Size Range 0.3 - 10μm
Counting Efficiency 50%@0.3μm100% @>0.45μm (Referenced to Lighthouse Solair 3100, under the environmental conditions of 25±2℃, 50±10%RH)
Counting Repeatability ≤5%
Self-cleaning Time ≤5 min
Maximum Allowable Operating Concentration 1000000 pcs/28.3L@0.3um
Data Refresh Frequency 1s
Operating Conditions 0 - 40℃; 5 - 95%RH (without condensation)
Storage Conditions -10 - 50℃; 5 - 95%RH (without condensation)
Operating Voltage DC 5V±0.2V, with a ripple < 100mV
Average Operating Current <250mA
Communication Interface UART_TTL (3.3V)
Product Dimensions W99.2H66D 41.7mm
