High Precision Fast Response Time Electrolyte Leakage Sensor with Long Service Life for Battery Monitoring
High Precision Fast Response Time Electrolyte Leakage Sensor with Long Service Life for Battery Monitoring
Specifications
Brand Name :
KACISE
Model Number :
KGD-ATRS-206
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Test Gas :
Electrolyte Vapor DMC
Measurement Range :
0-10000ppm
Measurement Accuracy :
0 ~ 2000ppm: ±200ppm 2000ppm-10000ppm : ±10% of the reading
Data Refresh :
≤1s
Warm-up Time :
<15s
Communication Method :
CAN2.0B
Description

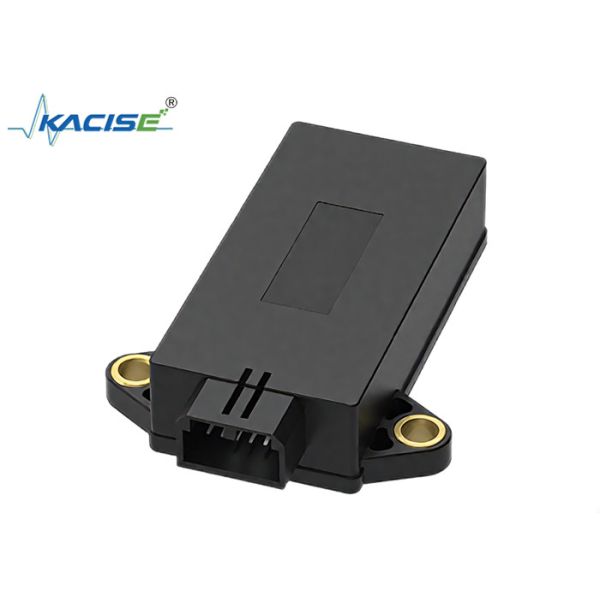

Electrolyte Leakage Sensor KGD-ATRS-206

High Precision Fast Response Time Electrolyte Leakage Sensor with Long Service Life for Battery Monitoring

Product Introduction

The Electrolyte Leakage Sensor ATRS-1050 is a lithium-ion battery electrolyte leakage sensor developed based on the Non-Dispersive Infrared (NDIR) technology. It can conduct real-time online monitoring of the gas concentration released by the electrolyte leakage in the environment and output alarm signals. This sensor has the characteristics of high precision and good long-term stability.

Product Features

  • High precision and fast response time
  • High selectivity, with no cross-gas interference
  • Good long-term stability and small drift
  • Long service life and maintenance-free

Technical Parameters

Test Gas Electrolyte Vapor DMC
Measurement Range 0-10000ppm
Measurement Accuracy 0 ~ 2000ppm: ±200ppm 2000ppm-10000ppm : ±10% of the reading
Data Refresh ≤1s
Warm-up Time <15s
Communication Method CAN2.0B
Service Life ≥10 years
Protection Level IP54
Operating Conditions -40℃~85℃, 0-95%RH (non-condensing)
Power Supply Voltage DC 9V ~ 16V, ripple <100mV
Average Operating Current ≤30mA
Dimensions L70W60H19.5(mm)
