KGD WQ 530 Micro-flow Infrared NO Gas Sensor Module Measuring Range 0 200 2000 5000ppm Customizable Low-range
KGD WQ 530 Micro-flow Infrared NO Gas Sensor Module Measuring Range 0 200 2000 5000ppm Customizable Low-range
Specifications
Brand Name :
KACISE
Model Number :
KGD-WQ-530
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measuring Range :
NO: 0 - 200 - 2000 - 5000ppm (customizable)
Resolution :
1ppm
Indication Error :
± 25ppm or ± 4% of the reading (whichever is greater)
Repeatability :
± 20ppm or ± 3% of the reading (whichever is greater)
Response Time :
T90 ≤ 4.5s
1 :
2
Description

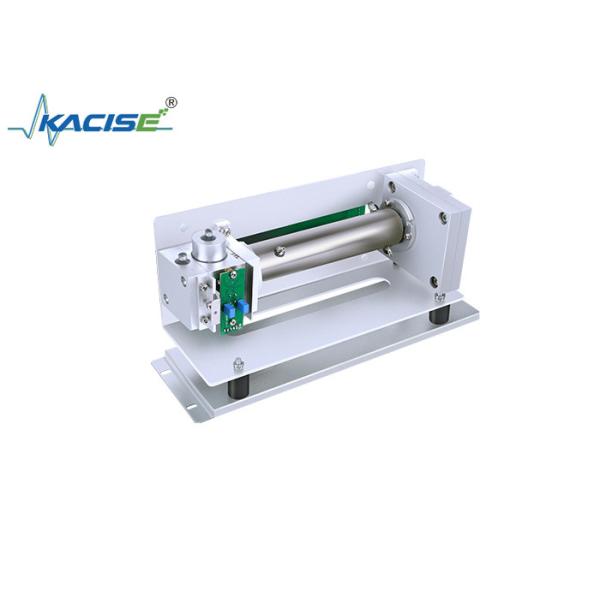

KGD - WQ - 530 Micro - flow Low - range Infrared NO Gas Sensor Module

Product Introduction

The KGD - WQ - 530 Micro - flow Low - range Infrared NO Gas Sensor Module adopts micro - flow infrared dual - gas - chamber sensor technology. The gas chamber is composed of a measured gas chamber and a reference gas chamber. After the infrared light source irradiates the measured gas and the reference gas respectively, the signal waveforms formed in the micro - flow infrared sensor are processed by the signal processing system, and the concentration of the measured gas is obtained through the ratio.

KGD WQ 530 Micro-flow Infrared NO Gas Sensor Module Measuring Range 0 200 2000 5000ppm Customizable Low-range

Product Features

  • Advanced micro - flow infrared sensor technology.
  • The gas chamber adopts a dual - chamber design of measurement and reference, ensuring high accuracy.
  • Modular sensor design for easy integration.
  • Automatic temperature and pressure compensation.

Technical Parameters

Parameter Details
Measuring Range NO: 0 - 200 - 2000 - 5000ppm (customizable)
Resolution 1ppm
Indication Error ± 25ppm or ± 4% of the reading (whichever is greater)
Repeatability ± 20ppm or ± 3% of the reading (whichever is greater)
Response Time T90 ≤ 4.5s
