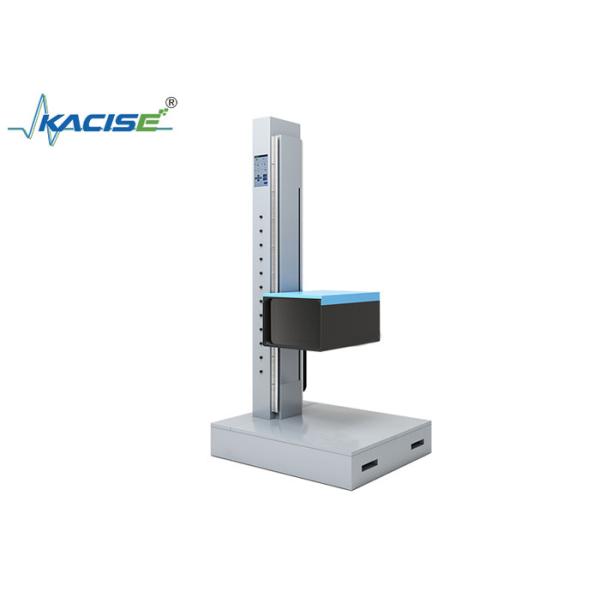

KGD-WQ-527 Dual-Camera Vehicle Headlight Tester with 120000 cd Luminous Intensity and Automatic Light-Chasing
KGD-WQ-527 Dual-Camera Vehicle Headlight Tester with 120000 cd Luminous Intensity and Automatic Light-Chasing
Specifications
Brand Name :
KACISE
Model Number :
KGD-WQ-527
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Ambient Temperature :
(-10 - 40) °C
Working Power Supply :
100 - 240VAC, 250W
Overall Dimensions :
800×670×1700 (mm)
Instrument Weight :
Approximately 100 kg
Luminous Intensity :
(0 - 120000) cd
High - beam Optical Axis Offset - Vertical Direction :
Upper 2°30′ - Lower 3°
Description
KGD - WQ - 527 Motor Vehicle Headlight Detector
Product Introduction

The KGD - WQ - 527 Motor Vehicle Headlight Detector uses a dual - camera structure and a precise optical system for light - seeking positioning and measurement analysis. Combined with digital image processing and motion control technologies, it forms an intelligent measurement system. It can automatically, quickly, and accurately measure various parameters of high - beam and low - beam headlights. It can detect vehicle halogen lamps, xenon lamps, LED lamps, and various lamp types. It is applicable to networked safety technology/comprehensive performance inspections of motor vehicles, final assembly (quality assurance) inspection lines of automobile manufacturing plants, and maintenance inspections in motor vehicle repair departments.

KGD-WQ-527 Dual-Camera Vehicle Headlight Tester with 120000 cd Luminous Intensity and Automatic Light-Chasing
Product Features
  • An advanced optical system enables rapid and accurate detection of various parameters of different types of headlights.
  • The instrument is equipped with a large - screen liquid - crystal display, making lamp - adjustment operations more convenient.
  • The instrument has an automatic discrimination technology that can eliminate external light interference, with high - precision automatic light - chasing and positioning.
  • The detector is equipped with a high - performance embedded processor for data collection and analysis.
  • With powerful software functions, instrument operation, calibration, and fault self - inspection are simpler and more convenient.
  • It can be quickly disassembled and assembled, facilitating movement, and is easy to operate with accurate measurements.
  • It provides a rich and reliable communication protocol, meeting the requirements of the original detection system for replacing the headlight detector.
Technical Parameters
Parameter Measuring Range Indication Error
Luminous Intensity (0 - 120000) cd When the optical axis offset value (angle) is zero, the indication error ≤ ± 10% (relative error). When the optical axis offset value (angle) is any value within the verification range, the indication error ≤ ± 12%.
High - beam Optical Axis Offset - Vertical Direction Upper 2°30′ - Lower 3° Indication error: no more than ± 3.2cm/dam (± 10′)
Indication difference: no more than ± 3.2cm/dam (± 10′)
High - beam Optical Axis Offset - Horizontal Direction Left 3° - Right 3° Indication error: no more than ± 3.2cm/dam (± 10′)
Indication difference: no more than ± 3.2cm/dam (± 10′)
Low - beam Optical Axis Offset - Vertical Direction Upper 2°30′ - Lower 3° Indication error: no more than ± 3.2cm/dam (± 10′)
Low - beam Optical Axis Offset - Horizontal Direction Left 3° - Right 3° Indication error: no more than ± 3.2cm/dam (± 10′)
Headlight Height (350 - 1400) mm Indication error: no more than ± 10mm
Ambient Temperature (-10 - 40) °C
Working Power Supply 100 - 240VAC, 250W
Overall Dimensions 800×670×1700 (mm)
Instrument Weight Approximately 100 kg
