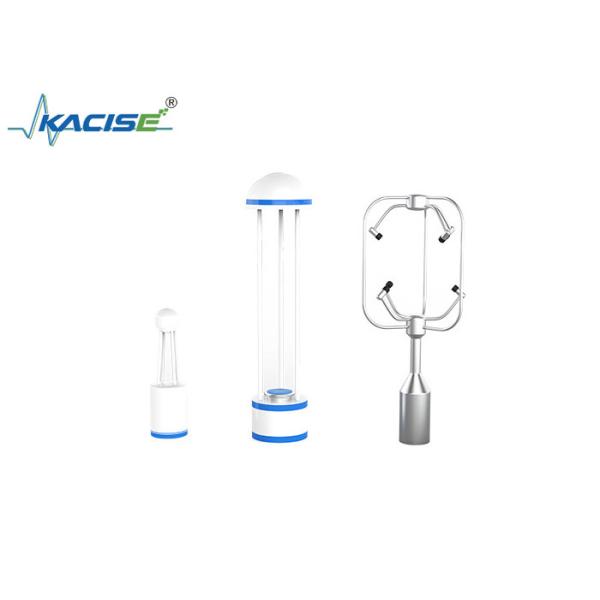

3D Ultrasonic Anemometer KGD-YQ-503 Eddy Covariance Measurement System for Atmospheric Environment
3D Ultrasonic Anemometer KGD-YQ-503 Eddy Covariance Measurement System for Atmospheric Environment
Specifications
Brand Name :
KACISE
Model Number :
KGD-YQ-503
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
CO₂ Measuring Range: :
0 - 3000 ppm
H₂O Measuring Range :
0 - 60000 ppm
Accuracy :
0.01
3 - Dimensional Ultrasonic Anemometer Accuracy :
0.01
Description

The KGD - YQ - 503 Atmospheric Environment Eddy Covariance Measurement System is used for boundary - layer meteorological research.

Product Introduction

The KGD - YQ - 503 eddy covariance (also known as eddy correlation method) technology is an important atmospheric measurement technique for measuring and calculating the vertical turbulent flux within the atmospheric boundary layer. The atmospheric environment eddy covariance measurement system accurately measures the three - dimensional wind speed and gas concentration in micrometeorology to monitor the turbulent exchange between the ecosystem and the atmosphere, and instantaneously collects flow distortion data. It is applicable to boundary - layer meteorological research, monitoring of greenhouse gas content in ecosystems, field atmospheric monitoring, research on the carbon - water cycle, research on air flux, verification of remote sensing data, etc.

3D Ultrasonic Anemometer KGD-YQ-503 Eddy Covariance Measurement System for Atmospheric Environment

Product Features

  • The system combines multiple gas analyzers and ultrasonic anemometers with a modular design, facilitating integrated use.
  • It is small - sized and can be installed flexibly.
  • Components are non - interfering with each other, and it is specifically designed for high - altitude monitoring.

Technical Parameters

Equipment Details
Open - path (CO₂/H₂O) Gas Analyzer CO₂ Measuring Range: 0 - 3000 ppm
H₂O Measuring Range: 0 - 60000 ppm
Accuracy: 1%
Open - path (CH₄) Gas Analyzer Measuring Range: 0 - 25 ppm
Accuracy: 1%
3 - Dimensional Ultrasonic Anemometer Measuring Range: 0 - 45 m/s
Accuracy: 1%
