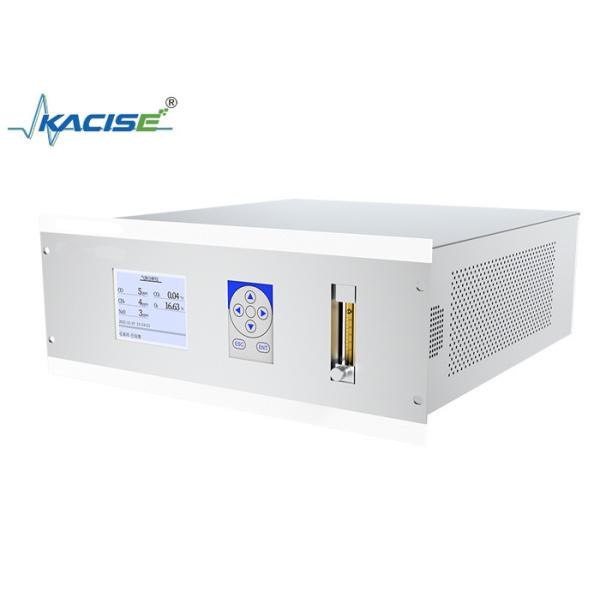

KGD - YQ - 501 Greenhouse Gas (CO₂/CH₄/N₂O) Emission Analyzer
KGD - YQ - 501 Greenhouse Gas (CO₂/CH₄/N₂O) Emission Analyzer
Specifications
Brand Name :
KACISE
Model Number :
KGD-YQ-501
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measured Components :
CO₂, CH₄, N₂O, CO, O₂
Measurement Range - Methane (CH₄) :
Range 0 - 1000 ppm, Resolution 1 ppm
Measurement Range - Nitrous Oxide (N₂O) :
Range 0 - 1000 ppm, Resolution 1 ppm
Measurement Range - Oxygen (O₂) :
Range 0 - 25%, Resolution 0.01%
Repeatability :
≤±1%
Response Time :
T90 < 25s
Description

KGD - YQ - 501 Greenhouse Gas (CO₂/CH₄/N₂O) Emission Analyzer

Product Introduction

The KGD - YQ - 501 Greenhouse Gas (CO₂/CH₄/N₂O) Emission Analyzer employs micro - flow infrared half - cell gas sensing technology. It enables simultaneous and accurate measurement of concentration changes of greenhouse gases such as CO₂, CH₄, N₂O, as well as CO gas in flue gas. The measuring range can reach as low as 200 ppm, with an accuracy of up to 1% F.S. It features strong resistance to gas cross - interference and lower drift.

Moreover, to meet the measurement requirements for high - concentration CO₂ and medium - to - high - range CO, sensor modules with Non - Dispersive Infrared (NDIR) gas sensor technology can be optionally configured for flexibility. These modules are characterized by good stability, small size, and low cost.

KGD - YQ - 501 Greenhouse Gas (CO₂/CH₄/N₂O) Emission Analyzer

Product Features

One analyzer can simultaneously and continuously measure up to five gases, including CO₂, CH₄, N₂O, CO, and O₂.

For CO₂, CH₄, N₂O, and CO, the patented micro - flow infrared technology can be selected, with a measuring range as low as 200 ppm and an accuracy of up to 1% F.S.

Small drift, resistant to moisture interference, and stable for long - term use.

For medium - to - high - concentration measurement needs, dual - beam infrared sensing technology can be used to measure CO₂ and CO, allowing for flexible combinations.

It has both digital and analog signal output functions, enabling simple and convenient data management.

Technical Parameters

Parameter Details
Measured Components CO₂, CH₄, N₂O, CO, O₂
Measurement Principle Micro - flow NDIR: CO₂/CH₄/N₂O/CO
Dual - beam NDIR: CO₂ (high range) and CO (medium - high range)
Electrochemical (ECD): O₂
Measurement Range - Carbon Dioxide (CO₂) Micro - flow: Range 0 - 500 ppm, Resolution 1 ppm
Micro - flow: Range 0 - 20%, Resolution 0.01%
Dual - beam: Range 0 - 25/100%, Resolution 0.01%
Measurement Range - Methane (CH₄) Range 0 - 1000 ppm, Resolution 1 ppm
Measurement Range - Nitrous Oxide (N₂O) Range 0 - 1000 ppm, Resolution 1 ppm
Measurement Range - Carbon Monoxide (CO) Micro - flow: Range 0 - 200/5000 ppm, Resolution 1 ppm
Dual - beam: Range 0 - 1/5%, Resolution 0.001%
Measurement Range - Oxygen (O₂) Range 0 - 25%, Resolution 0.01%
Measurement Accuracy Micro - flow NDIR for CO₂/CH₄/N₂O/CO: ±1% F.S.
Dual - beam NDIR for CO₂/CO: ±2% F.S.
ECD for O₂: ±2% F.S.
Repeatability ≤±1%
Response Time T90 < 25s
Optimal Flow Rate (0.7 - 1.2) L/min
Inlet Gas Pressure (2 - 50) Kpa
Sample Gas Requirements Dewatered (no condensation); Dust - filtered (filtration accuracy < 1μm)
Signal Output RS - 485/RS - 232, (4 - 20)mA
Power Supply 100 - 240VAC, 3000W (maximum heating power)/100W (stable power)
Diagnostic Function Has a self - diagnostic function to check the sensor status
