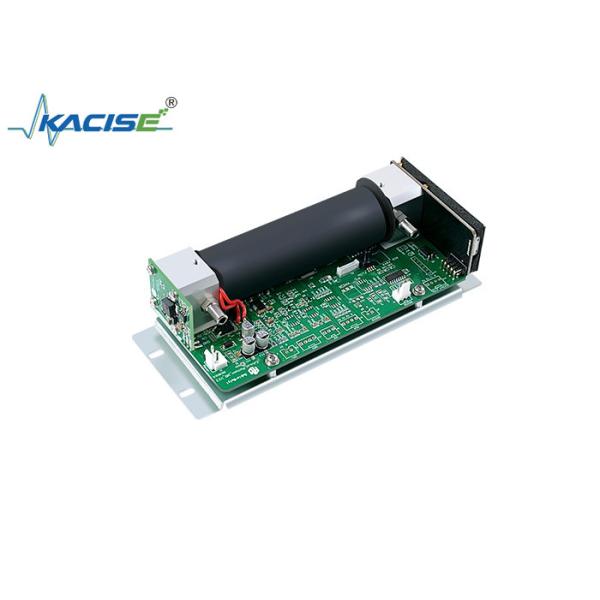

KGD - WQ - 533 Series NDUV Ultraviolet Ultra - Low Range Gas Sensor Module
KGD - WQ - 533 Series NDUV Ultraviolet Ultra - Low Range Gas Sensor Module
Specifications
Brand Name :
KACISE
Model Number :
KGD-WQ-533
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measuring Range :
NO2: 0 - 1000 ppm
Indicated Value Error :
Relative error < ±4%; Absolute error < ±25 ppm (satisfy either one of the two)
Resolution :
1 ppm
Response Time :
T90 ≤ 4.5 s
Communication :
RS - 232, can connect to Gasboard series exhaust gas
Power Supply :
12V ± 0.2V, 2A
Description

KGD - WQ - 533 Series NDUV Ultraviolet Ultra - low Range Gas Sensor Module

Product Introduction

The KGD - WQ - 533 series NDUV ultraviolet ultra - low range gas sensor module adopts the Non - Dispersive Ultraviolet Absorption (NDUV) technology. The ultraviolet light beam passes through the measuring gas chamber and is absorbed and attenuated. Then, the concentration of the measured gas is calculated based on the absorption relationship of the Lambert - Beer law. This product uses a highly stable ultraviolet light source and, through a unique optical path design, can directly measure NO₂ gas without a converter furnace, featuring high measurement accuracy, strong stability, and being unaffected by the conversion efficiency of the converter furnace.

KGD - WQ - 533 Series NDUV Ultraviolet Ultra - Low Range Gas Sensor Module

Product Features

  • Adopts a highly stable ultraviolet light source, with high precision and being unaffected by moisture.
  • Directly measures NO₂, eliminating the need for an NOₓ converter.
  • Automatic constant - temperature heating, with temperature and pressure correction.
  • The sensor has a modular design, facilitating integration.

Technical Parameters

Parameter Value
Measuring Range NO2: 0 - 1000 ppm
Indicated Value Error Relative error < ±4%; Absolute error < ±25 ppm (satisfy either one of the two)
Resolution 1 ppm
Response Time T90 ≤ 4.5 s
Communication RS - 232, can connect to Gasboard series exhaust gas
Power Supply 12V ± 0.2V, 2A
