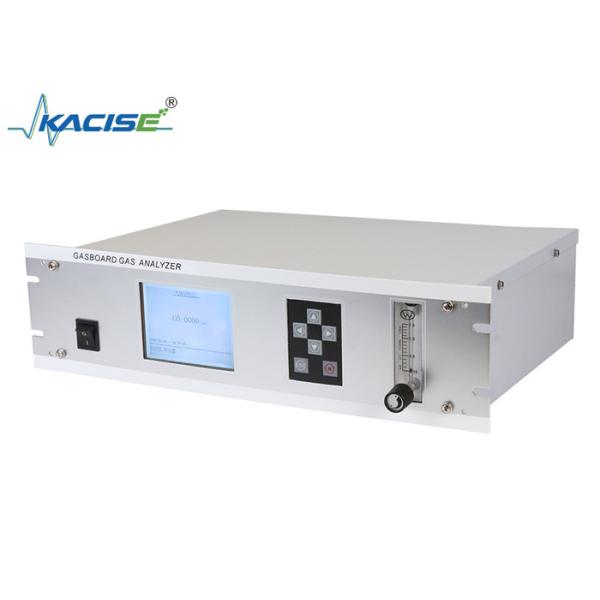

KGD-YQ-513 Flue Gas Analyzer Low Range Online Type
KGD-YQ-513 Flue Gas Analyzer Low Range Online Type
Specifications
Brand Name :
KACISE
Model Number :
KGD-YQ-513
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measurement Principle :
SO₂/NO/CO: Micro - flow NDIR; CO₂: NDIR; O₂: ECD
Measurement Range :
SO₂/NO: (0 - 200) ppm; CO: (500 - 5000) ppm; CO₂/O₂: (0 - 25%)
Linear Error :
≤ ±2%F.S.
Resolution :
SO₂/NO: 1ppm; CO: 1ppm; CO₂/O₂: 0.01%
Repeatability :
< 2%
Response Time :
T90 < 25s (NDIR)
Description

KGD-YQ-513 Flue Gas Analyzer (Low-Range Online Type)

Product Introduction

The KGD-YQ-513 Flue Gas Analyzer (Low-Range Online Type) is a new-generation low-range online flue gas analyzer independently developed based on non-dispersive infrared (NDIR) gas analysis technology. It creatively adopts a half-chamber gas path design, which not only continues the stable performance of the previous generation of products but also achieves higher measurement accuracy, lower drift, and smaller influence from external interferences (such as temperature fluctuations and voltage fluctuations).

KGD-YQ-513 Flue Gas Analyzer Low Range Online Type

Product Features

  • Ultra-Low Range Design: The measurement range is less than 200 ppm, meeting national environmental protection industry standards; the resolution reaches 1 ppm, suitable for low-concentration flue gas certification.
  • High Measurement Accuracy: Based on NDIR gas analysis technology and the innovative half-chamber gas path design, the instrument features strong stability, less influence from external interferences (such as temperature fluctuations and voltage fluctuations), lower drift, and basically no cross-interference between multi-component measurement gases, ensuring high measurement accuracy.
  • High Degree of Automation: Equipped with a professional pretreatment scheme, it has digital and analog output functions, featuring high automation and low maintenance. It can realize real-time online monitoring without manual attendance, greatly reducing the labor costs of enterprises.
  • Simple Data Management: Data can be transmitted to the superior centralized control system through multiple interfaces.

Technical Parameters

Measurement Components SO₂, NO, CO, CO₂, O₂
Measurement Principle SO₂/NO/CO: Micro - flow NDIR; CO₂: NDIR; O₂: ECD
Measurement Range SO₂/NO: (0 - 200) ppm; CO: (500 - 5000) ppm; CO₂/O₂: (0 - 25%)
Linear Error ≤ ±2%F.S.
Resolution SO₂/NO: 1ppm; CO: 1ppm; CO₂/O₂: 0.01%
Repeatability < 2%
Response Time T90 < 25s (NDIR)
Optimal Flow Rate (0.7 - 1.2) L/min
Communication RS - 485/RS - 232, (4 - 20) mA
Power Supply 100 - 240VAC, 150W
Functional Configuration Equipped with self - diagnosis function, can check the status of online sensors; built - in zero - adjustment air pump, can realize air self - calibration
