KGD-YQ-509 High-Precision Lightweight UAV Methane Emission Detection System with Corrosion Resistant Shell
KGD-YQ-509 High-Precision Lightweight UAV Methane Emission Detection System with Corrosion Resistant Shell
Specifications
Brand Name :
KACISE
Model Number :
KGD-YQ-509
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measurement Principle :
Mid - infrared TDLAS
Optical Path Type :
Open - path
Data Frequency :
10 - 20Hz
Sensitivity :
< 100ppb
Weight :
< 3kg
Software :
Has the function of detecting, identifying, and quantitatively analyzing leakage events, and is equipped with deep - learning capabilities
Description

KGD - YQ - 509 High - precision UAV Methane Emission Detection System

Product Introduction

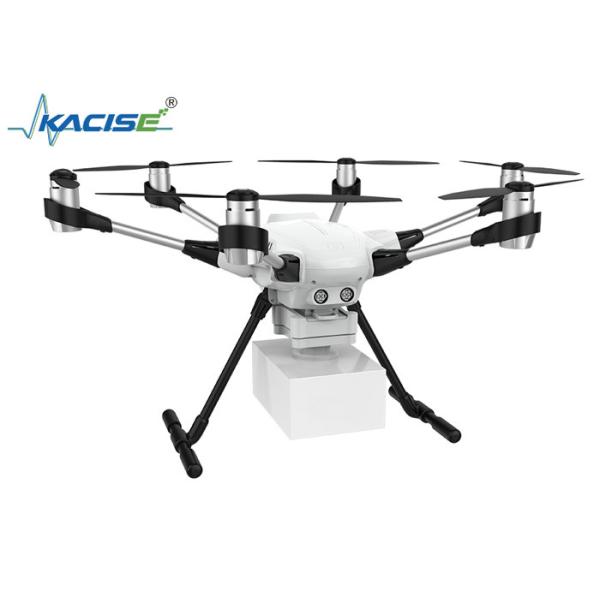

The KGD - YQ - 509 High - precision UAV Methane Emission Detection System uses a light - weight six - rotor all - electric vertical take - off and landing UAV, equipped with a greenhouse gas analyzer. The overall weight is no more than 3kg, making it miniaturized, portable, power - saving, and durable. Based on Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology, the entire system features a fast response speed and high sensitivity. The shell is made of highly anti - corrosive materials, suitable for detection in various spaces and different weather conditions. It can ensure the smooth completion of inspection operations in complex terrains such as mountains, hills, and jungles, as well as in limited areas like underground utility tunnels or densely - built areas.

KGD-YQ-509 High-Precision Lightweight UAV Methane Emission Detection System with Corrosion Resistant Shell

Product Features

  • High measurement accuracy and low detection limit.
  • Strong anti - interference ability.
  • Long service life and strong corrosion resistance.
  • Modular design for easy integration.

Technical Parameters

Measured Component CH₄
Measurement Principle Mid - infrared TDLAS
Optical Path Type Open - path
Data Frequency 10 - 20Hz
Sensitivity < 100ppb
Weight < 3kg
Software Has the function of detecting, identifying, and quantitatively analyzing leakage events, and is equipped with deep - learning capabilities
Ethane Detection Data acquisition rate 10 - 20Hz; Sensitivity < 15ppb
