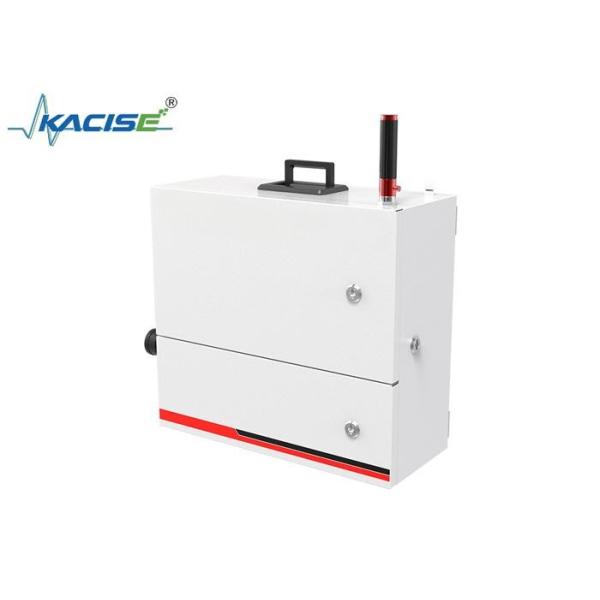

Continuous Ammonia Emissions Monitoring System with TDLAS Technology, 0.01ppm Resolution, and Heated Gas Path for Accurate NH₃ - CEMS
Continuous Ammonia Emissions Monitoring System with TDLAS Technology, 0.01ppm Resolution, and Heated Gas Path for Accurate NH₃ - CEMS
Specifications
Brand Name :
KACISE
Model Number :
KGD-YQ-523
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measurement Principle :
TDLAS
Range :
0 - 10 - 100ppm adjustable
Accuracy :
± 1%F.S.
Repeatability :
± 1%
Resolution :
0.01ppm
Minimum Detection Limit :
≤ 1ppm
Description

Continuous Monitoring System for Ammonia Emissions from Exhaust Gases of Stationary Pollution Sources (NH₃ - CEMS) KGD - YQ - 523

Product Introduction

The Continuous Monitoring System for Ammonia Emissions from Exhaust Gases of Stationary Pollution Sources (NH₃ - CEMS) KGD - YQ - 523 adopts Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology and is suitable for online monitoring of ammonia concentration at the outlet of the denitrification process. The system uses a near - extraction method, with the measurement unit installed outside the flue wall. The gas - path channel in contact with the sample gas is heated throughout the process to avoid ammonia adsorption and loss, ensuring the authenticity of the sample gas. It can accurately reflect the changes in ammonia slip in real - time, providing reliable data support for environmental protection monitoring.

Continuous Ammonia Emissions Monitoring System with TDLAS Technology, 0.01ppm Resolution, and Heated Gas Path for Accurate NH₃ - CEMS

Product Features

  • Adopting TDLAS technology, the measured gas is not affected by cross - interference from background gases.
  • Ultra - low range measurement. Using a multi - reflection gas cell, it has a low detection limit.
  • The system uses a full - process calibration method to improve the accuracy of measurement results.
  • The gas flow path is heated throughout the process, and low - adsorption materials and processing techniques are used to effectively avoid NH₃ condensation loss.
  • Extraction - type measurement, not affected by fluctuations in dust, temperature, and pressure inside the flue.
  • Equipped with a full - process calibration function.

Technical Parameters

Measurement Component NH₃
Measurement Principle TDLAS
Range 0 - 10 - 100ppm adjustable
Accuracy ± 1%F.S.
Repeatability ± 1%
Resolution 0.01ppm
Minimum Detection Limit ≤ 1ppm
Protection Level IP65 or above
Response Time T90 ≤ 30s
Working Conditions Working conditions
Ambient Temperature -30 - 60°C
Ambient Humidity 5 - 85%RH
Working Power Supply 220VAC, 50Hz, 800W
Purge Gas Source 0.4 - 0.8MPa compressed air
Communication 1 - way RS - 232, 1 - way RS - 485
Output Mode 4 - way 4 - 20mA output, 8 - way relay output
